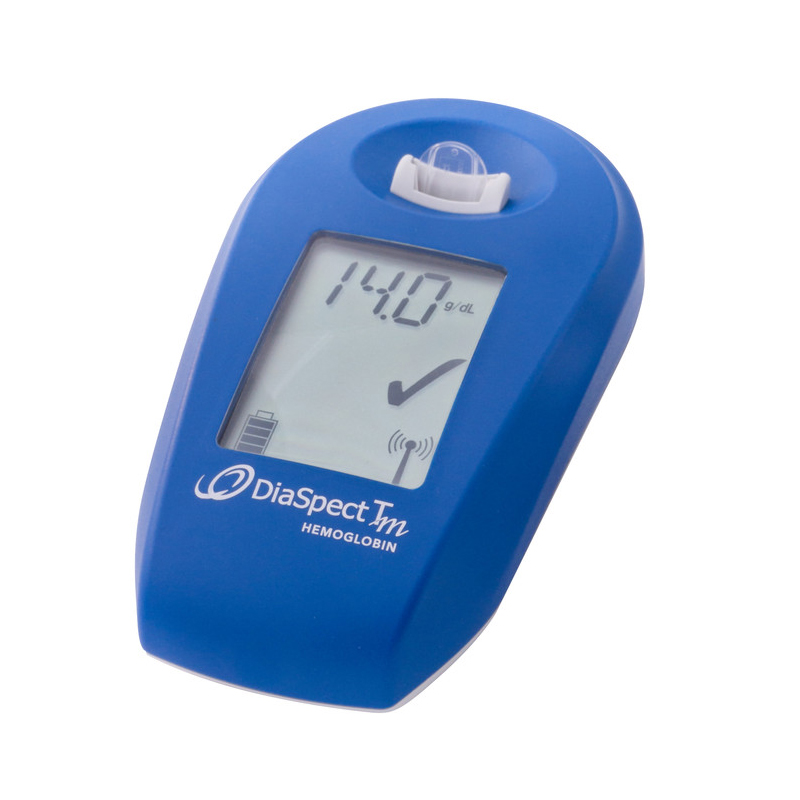

DiaSpect TM Portable Hemoglobin Analyzer with Bluetooth: Accurate results in less than 2 seconds

The DiaSpect TM Portable Hemoglobin Analyzer is the fastest hemoglobin analyzer on the market , with accurate results in less than 2 seconds. DiaSpect TM Bluetooth allows real-time information to be transmitted to a smartphone with the free POC Connect application

NOT INCLUDED:

- BAG OF 100 BUCKETS

- PACK OF 100 UNISTICK 21G LANCETS

You can purchase these accessories below.

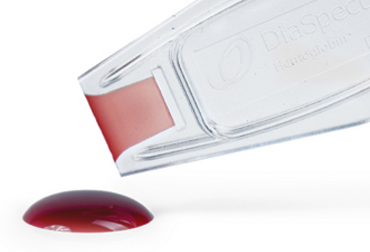

The Diaspect Tm Hemoglobin analysis system is designed for the quantitative determination of total hemoglobin in human blood , using capillary, arterial or venous samples in single-use microcuvettes specific for the Diaspect Tm.

The DiaSpect Tm system provides quantitative and instantaneous results of the concentration of total hemoglobin found in samples that have been obtained from capillaries, arteries or veins. The system is based on the photometric measurement of hemoglobin in unaltered whole blood and consists of a photometer and microcuvettes, providing precise and reliable results, with a coefficient of variation (CV) of less than 1%.

Easy measurements in three steps:

1. Collect blood sample.

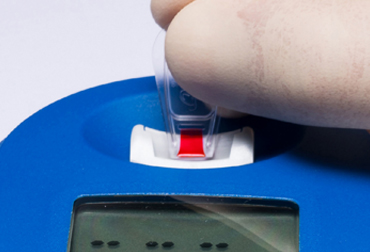

2. Insert the filled bucket and press gently.

3. Results appear in just 1 second.

Strengths:

Easy to use

- 'Always-on' technology. Ready to use immediately

- Automatic self-test between each measurement

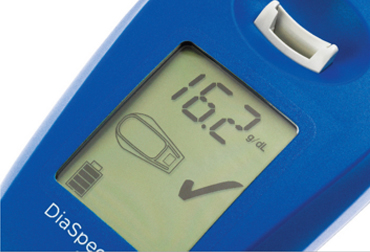

- Symbol-based display

- Factory calibrated with permanent calibration

Handy and portable

- Hemoglobin results in approximately one second

- Capillary, venous or arterial blood (anticoagulant with EDTA and heparin can be used)

- Compact in size and weighs only 180g

- Does not require maintenance. Automatic self-diagnosis

- Built-in rechargeable battery (40 days or 10,000 continuous use tests)

DiaSpect technical specifications:

- Operating temperature: +10°C to +35°C

- Operating humidity: Not specified, condensation on the analyzer must be avoided

- Storage temperature: 0°C to +50°C (-30°C to +70°C during transport, 24 maximum)

- Sample volume: <10 μl

- Display range: 0.3-25.5 g/dl (0.3-255 g/l, 0.2-15.9 mmol/l)

- Measurement time: 1-2s

- Battery: Built-in 3.6V rechargeable lithium-ion batteries

- Safety: Controlled according to IEC 60950 / IEC 61010

- Equipment input voltage: 5V, 100m (PC) / 300 mA (mains)

- Power supply for input voltage: 4.5VA, 100-240V AC, 50-60 Hz

- Data interface: USB 2.0, Bluetooth Smart (optional)

- Protection class: IP 21

- Power supply: 100mA via USB host, 350mA via USB power supply

- Duration of operation: Several weeks for a fully charged battery and continuous use

- Analyzer dimensions: L=15 cm, W=9 cm, H=4 cm

- Analyzer weight: 185 g
