1112M Electrocardiograph: 12-channel ECG with Minnesota analysis and advanced DICOM/HL7 connectivity

The 1112M electrocardiograph offers clinical accuracy, advanced connectivity, and excellent value . Designed for demanding medical environments, this 12-channel ECG features Minnesota automatic analysis , one of the most recognized for its diagnostic reliability.

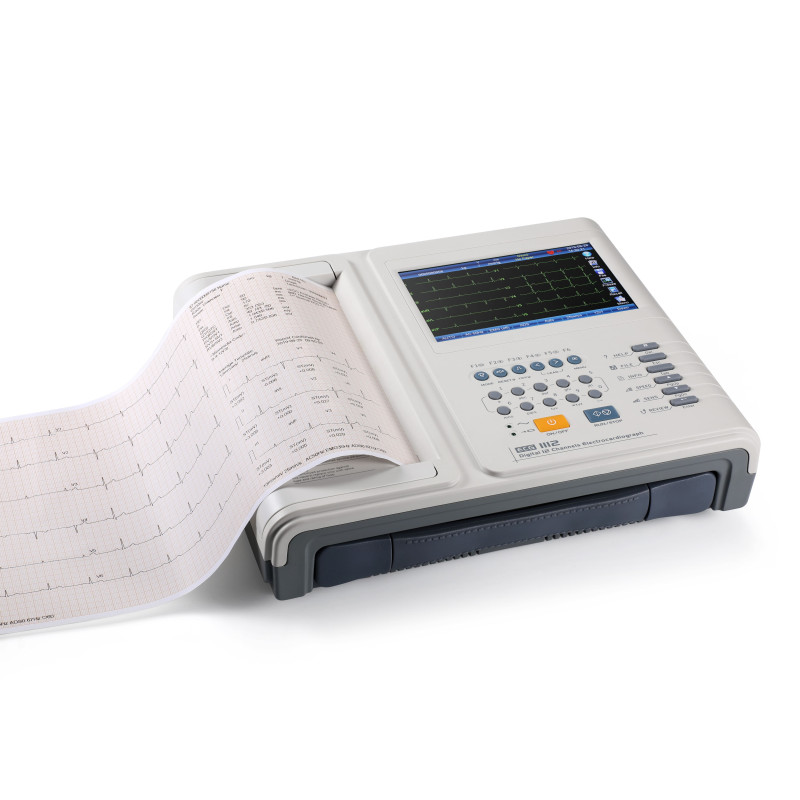

Its 7" LCD touchscreen , simultaneous 12-lead acquisition, and integrated A4 thermal printer facilitate a fast and efficient workflow. With DICOM, HL7, WiFi, and Ethernet connectivity , it easily integrates into HIS, EMR, or PACS systems, allowing you to instantly transfer, store, or print ECG reports .

Ideal for hospitals, clinics and diagnostic centers looking for a portable, accurate and fully connected device, the ECG 1112M combines reliable automatic measurement, signal stability in 3 seconds and large storage capacity (up to 6000 ECG records ).

Strengths:

- Automatic analysis with Minnesota code, precise and internationally recognized.

- 7" LCD touch screen with clear and simultaneous display of 12 leads.

- Integrated DIN-A4 thermal printer for high-resolution 12-channel reports.

- Full connectivity: WiFi, Ethernet, FTP, DICOM and HL7, compatible with Worklist.

- Large internal memory: up to 6000 ECG files stored.

- Fast and stable acquisition: waveforms stabilized in less than 3 seconds.

- Built-in alarms: heart rate and pacemaker detection.

- Loop playback function to review saved ECG waves.

- Extended compatibility: external printers, barcode readers, USB keyboards.

- Long-lasting lithium battery (more than 3 hours) and portable design with carrying handle.

- Direct integration with HIS, EMR and PACS systems without intermediate software.

- Ideal for: hospitals, clinics, emergencies, cardiology and primary care.

Technical characteristics:

- Channels 12 standard synchronous leads

- Screen 7" color touch LCD – 800×480 resolution

- Sampling frequency 32,000 samples/sec per channel

- A/D converter 24 bits

- Digital filters HUM, EMG, ADS, low pass

- Sensitivity Auto / 2.5 / 5 / 10 / 20 / 40 mm/mV

- FC Range 30 to 300 bpm (±1 bpm)

- Paper speed 5 to 50 mm/s

- Storage Up to 6000 ECGs

- Connectivity WiFi, LAN, DICOM, HL7, FTP

- Battery 14.4V – 4400mAh (battery life >3 h)

- Dimensions / Weight 338 × 280 × 55 mm / 3.7 kg

- Safety regulations MDD93/42/EEC, IEC60601-1 – Class I, Type CF

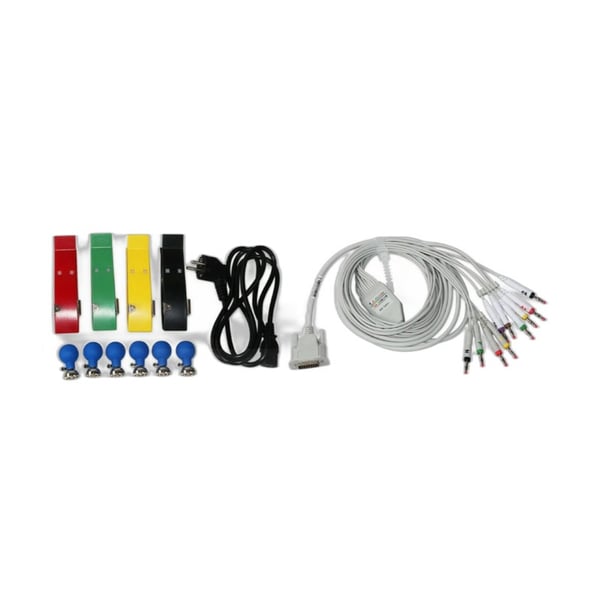

Base equipment:

- Electrocardiograph

- Battery

- Patient cable with banana connectors

- Reusable clamp-type limb electrodes

- Reusable suction electrodes

- Thermal paper

- Power cable

- Manual

Optional accessories:

- Transport cart

- Carrying case

- Adapters for disposable clip, tab or other electrodes

- Disposable electrodes

- Barcode reader

- External keyboard

- Mouse
