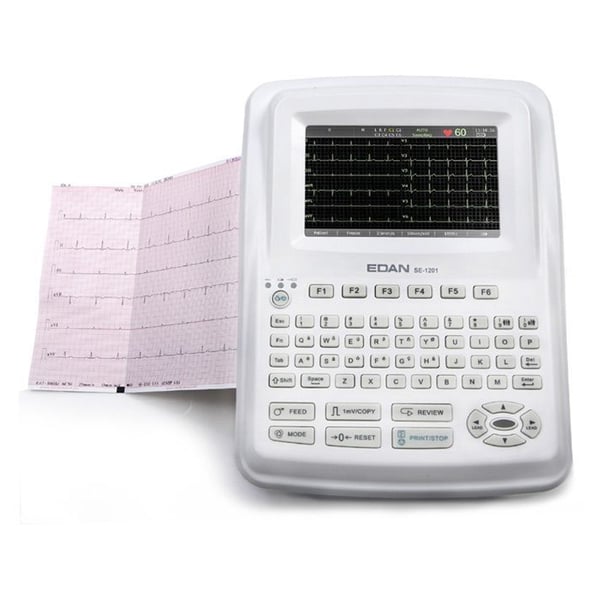

12-channel automatic, manual, R-R rhythm or memory electrocardiograph, with 7" color screen
* The shipping costs are calculated in the shopping basket
Available options
- Model:
- 12 channel electrocardiograph
- 1.909,38€
- Model:
- Electrocardiograph 12 channels WiFi and touch screen
- 2.435,70€
Description
He EDAN SE 1201 12-track ECG is a 12-channel automatic, manual, RR rhythm or memory electrocardiograph , with a 7" color screen that allows simultaneous capture and display of 12 channels, with 6 speeds and 5 sensitivities.
Models :
- 12-channel automatic, manual, RR rhythm or memory electrocardiograph , with 7″ LCD color screen
- SE 1201 with WiFi: 12-channel electrocardiograph with the same characteristics as the SE-1201 but with a built-in WiFi connection .
- SE-1201 with touch screen : 12-channel electrocardiograph with the same characteristics as the SE-1201 but with a touch screen .
- SE-1201 WiFi and touch screen: Electrocardiograph with the same characteristics as the SE-1201 but with WiFi and touch screen .
Strengths:
- Automatic measurement and interpretation according to GLASGOW databases and detection of arrhythmias.
- Freezing of the ECG 120s in real time. Internal memory for 200 ECGs expandable with USB.
- Supports barcode reader.
- High resolution thermal printer and built-in rechargeable battery.
- Communications interface
- Ethernet/RS232/USB.
- Export in PDF format.
Technical characteristics:
- Number of tracks: 12
- Yeah. Autonomy: 2 hours.
- Memory: 200 ECG. Recording mode: manual and automatic with CSE/AHA/MIT tested interpretation.
- Registration of 12 leads simultaneously
- With Edan's exclusive ST-View function, ST segment changes are presented intuitively.
way, helping doctors locate the precise position of the MI and make the diagnosis.
- Ultra precise thanks to its filters:
- AC Filter (Eliminates alternating current interference): on/off.
- DFT filter (discrete Fourier transform: reduces background fluctuations): 0.05 Hz, 0.15 Hz, 0.25 Hz, 0.32 Hz, 0.5 Hz, 0.67 Hz
- EMG filter (eliminates disturbances caused by strong muscle tremors): 25 Hz, 35 Hz, 45 Hz, Off.
- Low pass filter (reduces the width of the input signal band): 75 Hz, 100 Hz or 150 Hz.
- Power: Sector (220V/110V - 50/60 Hz).
- Li-ion rechargeable battery.
- Alphanumeric keyboard.
- LCD screen 800 x 480 (5.7 inches).
- Integrated high-resolution thermal printer or possibility of connecting an external printer for 12-lead A4 printing.
- Paper: 110 mm x 140mm x 144mm.
- Paper unfolding speed 5; 6.25; 10; 12.5 ; 25; 50mm/s.

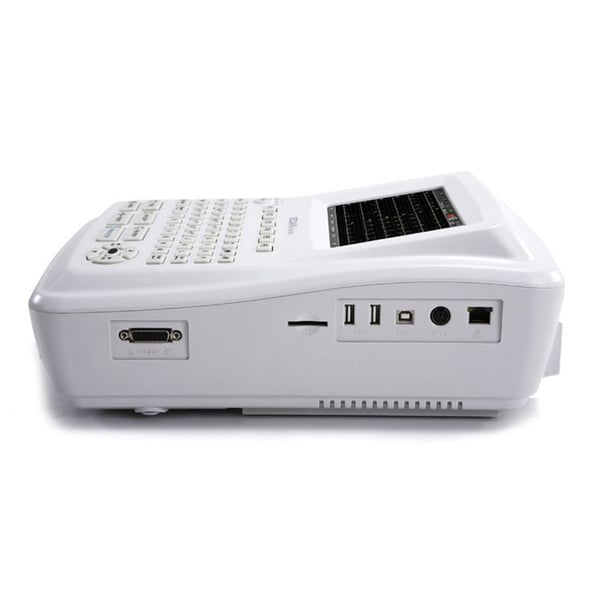

- Connectivity: Ethernet / RS232 / USB.
- Weight: 4.2 kg.
- Dimensions: 31 x 32.2 x 10.1 cm.
- Validation: CE.
Clinical area:
- Cardiology
- Family Medicine
- Internists
- Use in ambulances
- Emergencies
Base equipment:
- AHA patient cable 10 tips banana termination.
- Power cord.
- Eliminator for power cable.
- Set of 6 adult precordial knobs.
- Set of 4 adult limb clamps.
- Rechargeable lithium battery.
- User manual.
- Thermal paper roll.
- Adapter for roll paper.
Warranty:
This device is 2 years old.
