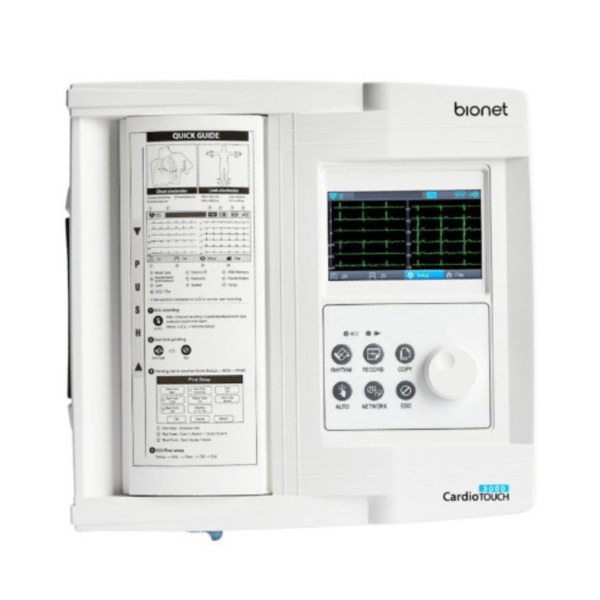

12 Channel Electrocardiograph Cardiotouch 3000 Bionet

The Bionet Cardiotouch 3000 12-Channel Electrocardiograph is an easy-to-use portable electrocardiograph with a touch screen that displays 12 simultaneous channels in real time.

Strengths

- Easy One-Touch Operation: One-touch monitoring and recording mode, simplifying the user experience

-12 Channel Simultaneous Display: Monitor up to 12 channels simultaneously for a comprehensive evaluation of cardiac activity.

-12-Channel Advanced Interpretation: Based on Minnesota advanced code, it offers more than 120 types of interpretation results for detailed evaluation.

-Large Storage: Store up to 200 ECGs in internal memory, providing a complete and accessible history.

-Real-Time Preview Monitor: Get a real-time preview for instant evaluation of results.

-Compatibility with PC over LAN.

-Multi language.

-Pacemaker Detection.

-Multiple Results Export Formats.

-A4 printer.

Technical characteristics

- Simultaneous Recording Channels: 10 Leads for Resting ECG (12 channels)

- Recording Channels 3CH+1RHY, 3CH+3RHY, 6CH+1RHY, 12CH, 1CH Long Term (1 min) and Heartbeat Report

-Sensitivity 2.5, 5, 10, 20, Auto (laVF:10,V1V6:5) mm/mV

- Printing Speed 5,12.5,25,50,100 mm/sec.

-Sampling Rate for Analysis 500 samples/sec.

-Digital Sampling Rate 8,000 samples/sec

- Filters: AC (50/60Hz, -20dB or better), Muscle (25~35Hz, -3dB or better), Baseline Drift (0.05, 0.1, 0.2Hz, -3dB or better), Low Pass Filter ( 40Hz, 100Hz, 150Hz).

- Screen Resolution of 272 x 480 pixels, 4.3'' TFT color screen

- ECG, XML, PDF, JPEG, MFER File Export Formats

- User Interface Touch Screen, Rotary Knob-Push Button

- Printer Thermal print head, roll paper

- Report paper Width: A4/Letter – 215 mm, Length: A4 – 297 mm, Letter – 279 mm

- ECG Data Storage ID, Name, Age, Gender, Height, Weight

- Basic Measurements Heart Rate: 30 ~300 bpm (± 3 bpm), PR, QRS, QT/QTc, PRT Axis ECG Data Storage 200 ECGs, optional external memory

- Electrical Conditions Isolated, Protected against Defibrillation and ESU

- Signal Quality Control Pacemaker pulse detection, electrode failure detection, signal saturation detection

- Power Input 100-240Vac, 1.5-0.75A, 50-60Hz, Output: 15Vdc, 4.2A

- Lithium Ion Battery, Rechargeable and Replaceable, 11.1V, 2600mA, Capacity of 6 hours of normal use (without recording), Battery charging time: 3 hours

- Dimensions 290 mm (Width) x 300 mm (Depth) x 97.5"
