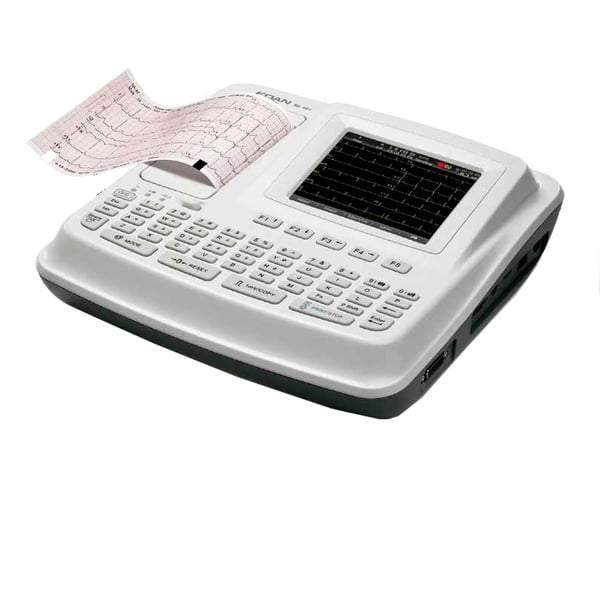

6-channel electrocardiograph with 5.7'' screen and ECG interpretation included

Strengths:

Design to suit the user:
- Compact and portable design
- Color LCD display with touch screen function (SE-601C only)
- Alphanumeric keyboard

Optimized Workflow:
- One press per operation, with quick function for gender and age
- Supports 2D linear barcode reader to simplify workflow (SE-601B/C only)

Exact clinical benefits:
- Simultaneous 12-lead digitization
- Weak signal detection and anti-noise technology ensure high ECG quality
- Detailed automatic analysis specific to gender and age
- Measurements and automatic interpretation according to the SEC/AHA/MIT databases
- Prolongation of the printout when an arrhythmia is detected to facilitate arrhythmia analysis

Flexible printing solutions:
- Built-in high resolution thermal printer
- Supports external printer via USB

Data management:
- Internal memory for 200 ECGs expandable with external USB memory
- ECG data management software for PC (optional)

Multiple communication formats:
- Data transmission to PC via LAN / optional: WiFi (SE-601C)
- Standard formats for ECG: Data export in PDF and optional SCP/FDA-XML/DICOM
- Bidirectional data communication with medical history (SE-601B/C only)

Technical characteristics:

- Input circuit: Defibrillation protection
- Leads: 12 standard leads
- Pickup mode: 12 leads simultaneous pickup
- A/D resolution: 24 bits
- Sampling frequency: < ± 5mVpp
- Input voltage range: 1,000 Hz/channel, 10,000 Hz for pacemaker detection
- Time constant: ≤0.01μA
- Frequency response: ≥ 50 MΩ (10Hz)
- Calibration voltage: 2.5, 5, 10, 20, 10/5, Auto (mm/mV)
- Sensitivity: 1mV ±2%
- Input impedance: 0.05Hz ~ 150Hz (-3dB)
- Current in input circuit: ≤0.01μA
- Noise: ≤12.5 μVp-p
- Working mode: Auto/Manual/Rhythm
- Rhythm: Selectable one channel or three channels
- Printer: Thermal printer/external printer
- Printer paper: 110mmx140mmx144p (Z paper)
- Dimensions: 310mm x 322mm x 101mm
- Weight: 2.6kg
- Screen: 5.7" STN color LCD 320x240 dots

Warranty:

The device has a 2-year warranty.
