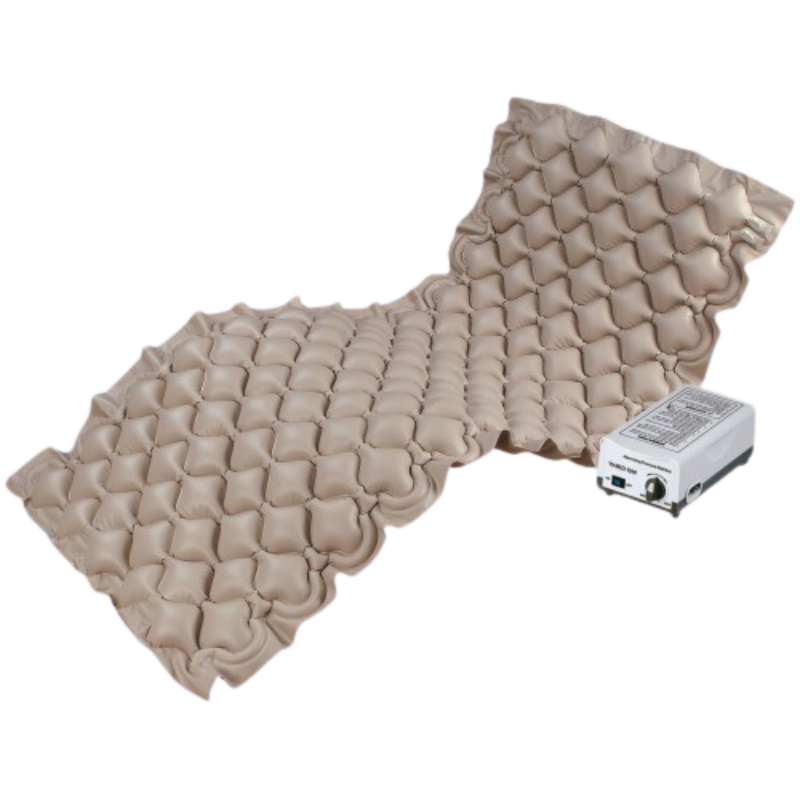

Aerocare B605 pressure relief mattress with A606 compressor: Alternating pressure system

The Aerocare B605 pressure relief mattress is an alternating pressure system designed for the prevention and treatment of pressure ulcers in bedridden patients . It works by means of a compressor that alternately introduces air into two independent circuits of cells, improving blood circulation and reducing prolonged pressure points on the patient's body.

This system consists of an A606 compressor and a B605 mattress , which work together generating automatic inflation and deflation cycles to distribute pressure continuously.

It is especially suitable for home use or healthcare settings , providing greater comfort and helping to prevent skin lesions in patients with reduced mobility.

Strengths:

- Alternating pressure system that improves blood circulation and prevents pressure ulcers.

- Automatic inflation cycles every 6 minutes , alternating cell groups to reduce constant pressure.

- Comfort level adjustment according to patient weight , using a regulator on the compressor.

- Durable medical PVC material , easy to clean and maintain.

- Easy installation on a standard bed mattress.

- Quiet and compact compressor , suitable for continuous use.

- Fastening flaps to secure the mattress and prevent movement.

Technical specifications:

System

- Type: Alternating pressure anti-decubitus mattress

- Components: Mattress B605 + compressor A606

- Alternation cycle: 6 minutes

- Pressure adjustment: adjustable according to user weight

Compressor

- Dimensions: 27 × 13 × 10.5 cm

- Weight: 1 kg

- Power supply: 220-240 V AC

- Frequency: 50 / 60 Hz

- Fuse: 1 A – 250 V

- Air flow rate: 3-5 L/min

- Pressure range: 40-100 mmHg

Mattress

- Dimensions: 200 × 90 × 7 cm

- Flaps: +50 cm at headboard and footboard for fixing

- Material: Medical PVC

- Weight: 2.05 kg

- Maximum patient weight: 135 kg

Terms of use

- Operating temperature: 10 °C – 40 °C

- Relative humidity: 10% – 75%

Classification

- Class I medical device in accordance with European Regulation MDR (EU) 2017/745.

Warranty:

- Compressor: 1 year warranty

- Mattress: 6-month warranty
