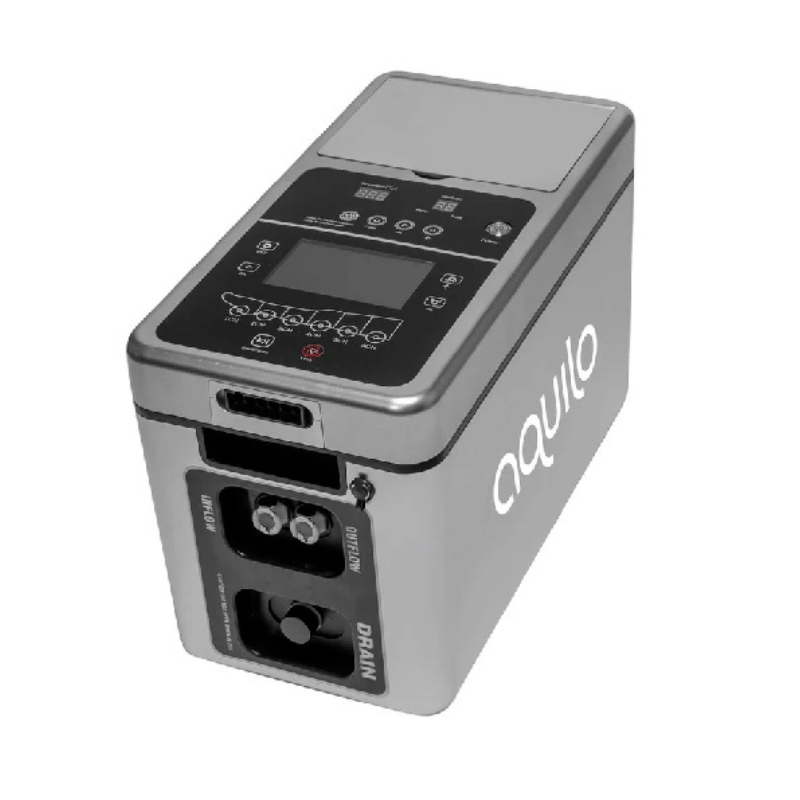

Aquilo Sports CCT1500 Central Unit / Console (Standalone Accessory)

The Aquilo Sports CCT1500 Control Unit is the central component of one of the most advanced sports recovery systems on the market. Designed for professional and intensive use, this console integrates a powerful water circulation pump (for thermal therapy) and a high-precision pneumatic compression system into a single unit.

It is the ideal solution as a replacement unit, to set up a second treatment room in physiotherapy clinics, high-performance centers or sports clubs, allowing you to use your compatible Aquilo accessories (not included) with complete versatility.

Strengths of the Central Unit:

• Combined therapy management: Allows simultaneous or completely independent control of the application of cold/heat and pneumatic compression.
• High-precision compression: Customizable pressure from 20 to 150 mmHg.
• Advanced chamber control: Ability to manage accessories for up to six air chambers, with the option to select or override chambers individually.
• Dual capacity: Sufficient power to treat one or two limbs at the same time.
• Unified control panel: All pressure settings, operating modes and water circulation centralized in one intuitive interface.
• Compact and portable design: Easy to move between different clinical boxes or sports recovery areas.
• Pneumatic Pump and Compression System
• The CCT1500 unit's internal compressor offers complete control over therapy intensity. It allows for adjustable working pressure between 20 and 150 mmHg, adapting to both gentle drainage and intensive muscle recovery. The console is programmed with different pneumatic operating configurations:
• Lymphatic drainage mode: Sequential and progressive activation of the chambers.
• Constant pressure mode: Maintains stable pressure on selected areas.
• Smart selection: Allows the therapist to choose which cameras to activate, ideal for localizing the treatment or avoiding injured areas.

Water Cooling and Circulation System

The unit houses a high-performance continuous water pump designed for thermal therapy. This system circulates water through the internal circuits of compatible accessories, ensuring a homogeneous and constant temperature distribution throughout the session. In addition to cryotherapy (cold therapy), the console can also manage heat therapy depending on the configuration and the thermal accessories connected.

Technical Specifications of the Unit:

• Type of equipment: Thermal therapy and pneumatic compression console.
• Pressure range: 20 - 150 mmHg (Adjustable).
• Maximum pressure: 150 mmHg.
• Pneumatic management capacity: Configured for accessories with up to 6 chambers. Treatment of 1 or 2 limbs simultaneously.
• Water circulation capacity: Up to two simultaneous connections.
• Operating modes: Lymphatic drainage, Constant pressure, and Individual zone selection.
• Use of therapies: Simultaneous (Water + Air) or Independent (Water Only / Air Only).
• Power supply: Power adapter.
• Recommended use: Professional, clinical, sports medicine and high performance.

(Note: This item includes only the CCT1500 main unit and its power adapter . Applicator accessories such as leg sleeves, boots, connecting tubes, and carrying bags are purchased separately.)
