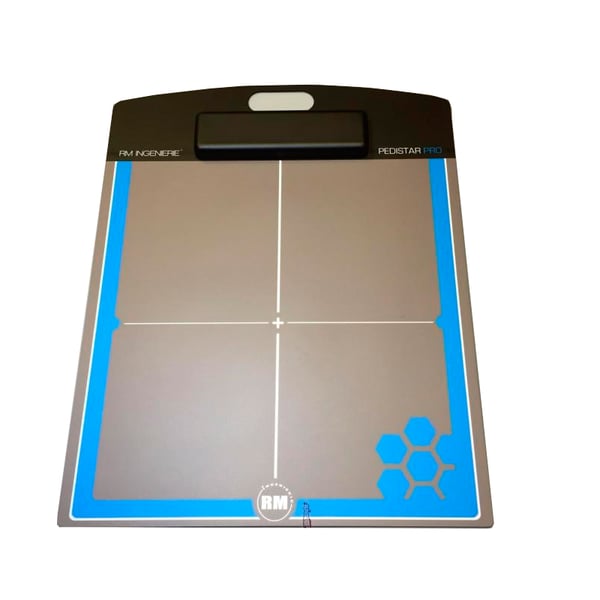

Biomechanical pressures platform Gait analysis Pedistar 3D Pro Includes gateway gift!
Shipping in 7-10 days approx.
* The shipping costs are calculated in the shopping basket
Reference: PL002
Description
Platform pressures biomechanical gait analysis in 3D on a premium version of Pedistar, with which you can study the tread quadrants M1, M2, M3, M4, M5, Hallux, Middle-foot, internal / external heel, forefoot internal /external.
Other advantages of Pedistar Pro front Pedistar is working at higher speeds (200 MHz) and provides up to 84 images per tread. It also has 4,096 self - calibrating capacitive sensors
Technical characteristics of the Pedistar Pro platform

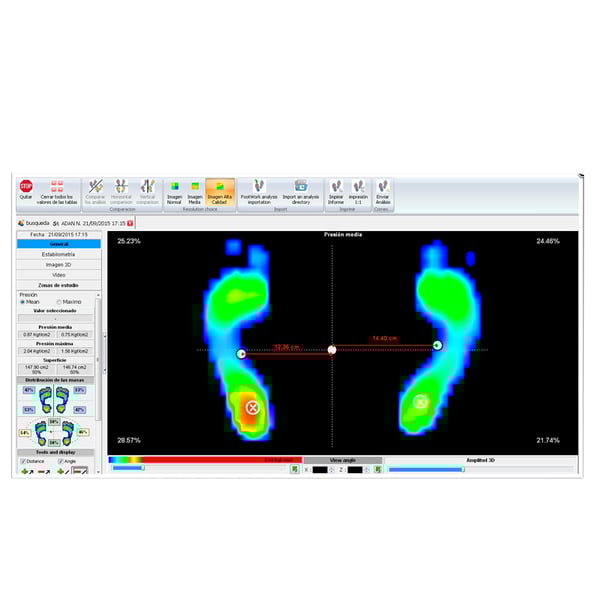

STATIC ANALYSIS
- Position the center of gravity.
- Maximum pressures.
- Analysis by area.
- Measurement of pressure in forefoot and Rearfoot.
- Observe possible dismetrías or vasculaciones of the pelvis.
- 3D visualization.

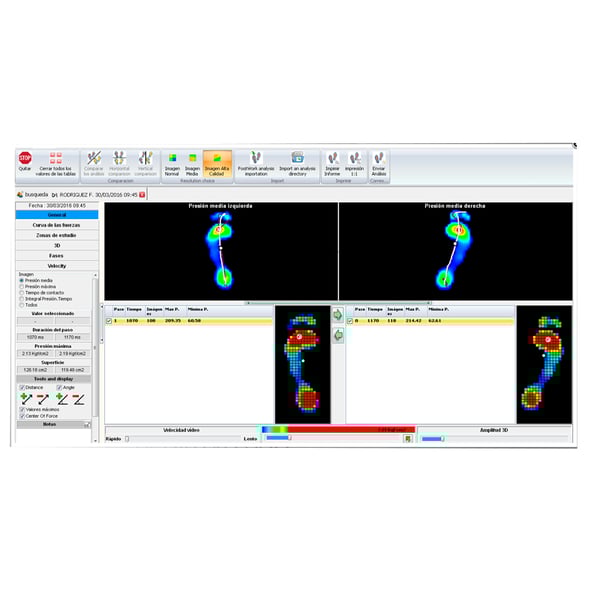

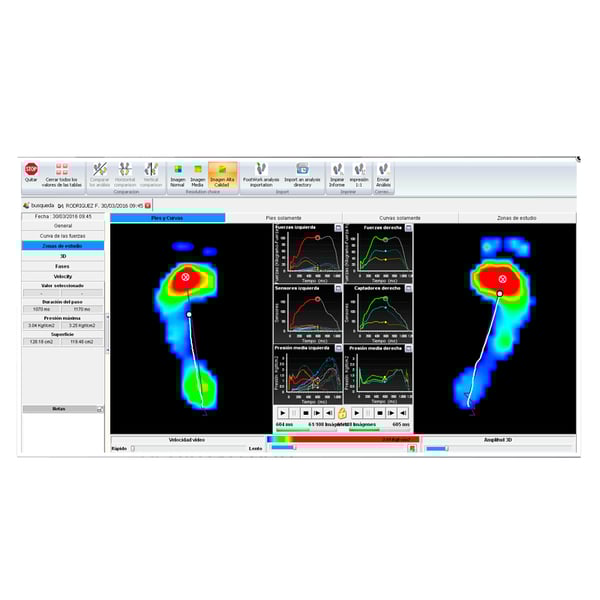

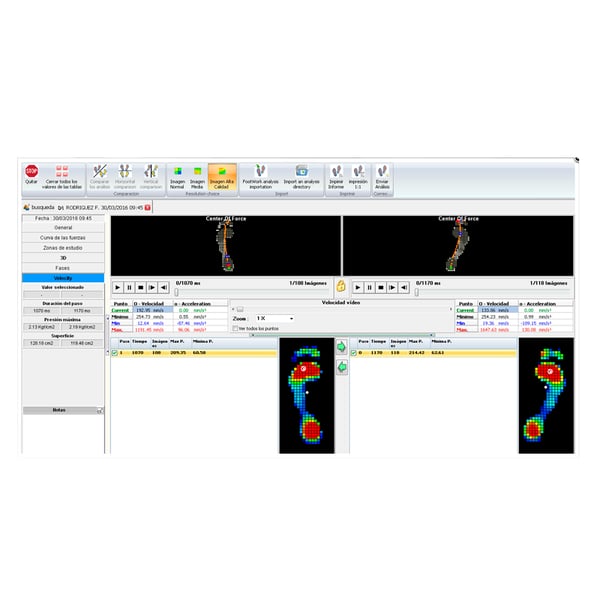

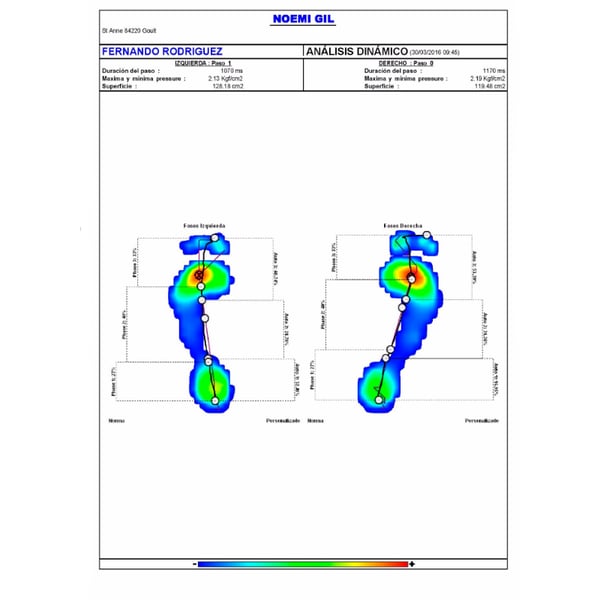

DYNAMIC ANALYSIS
- Position the center of gravity.
- Maximum pressures.
- Gait analysis.
- Line progression of the march.
- Multiple Characterization time support and pressure
- Gravity center.
- Different phases of the pressure in walking.
- Take video.

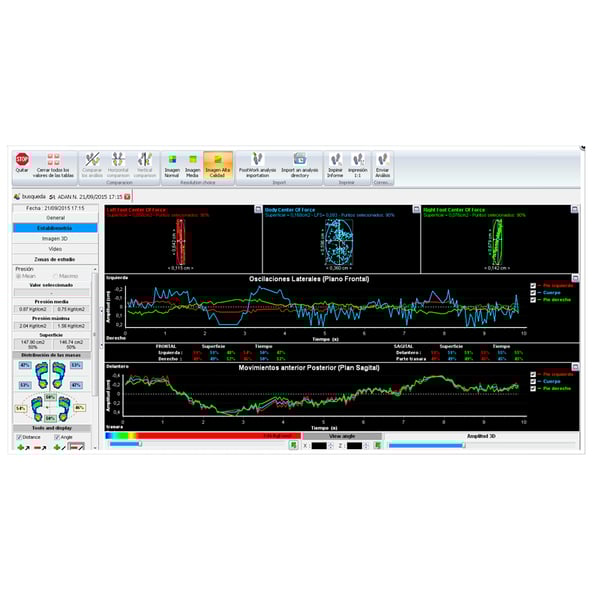

ANALYSIS POSTUROLÓGICO
- Graphics lateral oscillations (frontal plane)
- Graphics anterior posterior movement (sagittal plane)
- Center of gravity (body, left foot, right foot).
- Proprioceptive analysis with eyes open or closed eyes.
Platform dimensions Pedistar Pro
- Dimensions: 45 cm wide x 57.5 cm high x 5 cm depth. // Active Surface: 49 centimeters x 49 centimeters high acho
- Weight: 2 kilos.
