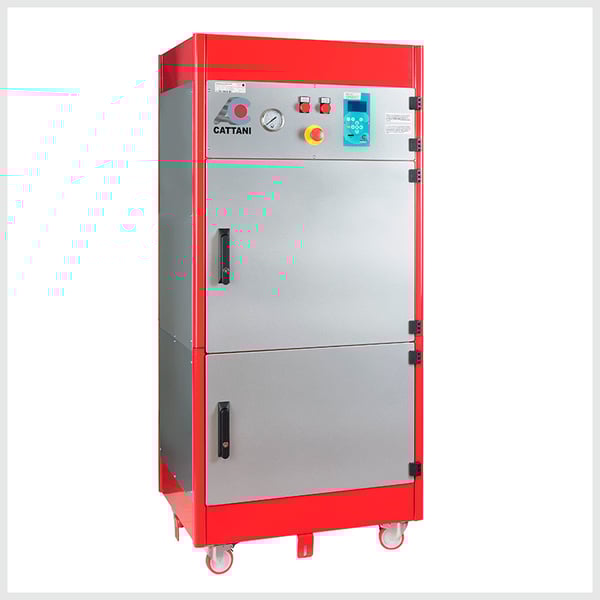

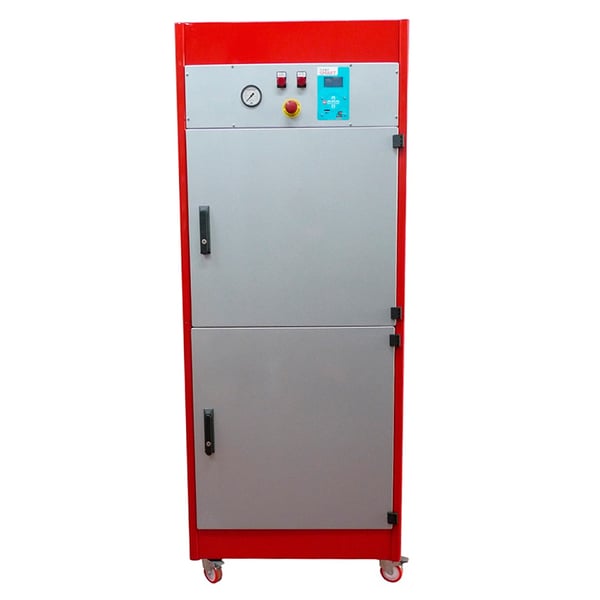

Block Jet Silent 2 Cattani Turbo Smart B + 3 Cylinder Compressor

Block-Jet Silent is ideal for those who do not have space. Reduce dimensions by 50%. In addition, the sound vibration is reduced thanks to the new materials and soundproofing techniques.

Ten years have passed since the first Blok-Jet and there has been a great evolution of both materials and new technologies: in this way the new Blok-Jet Silent 1 and 2 improve in all aspects of innovation in terms of rationalization and operability

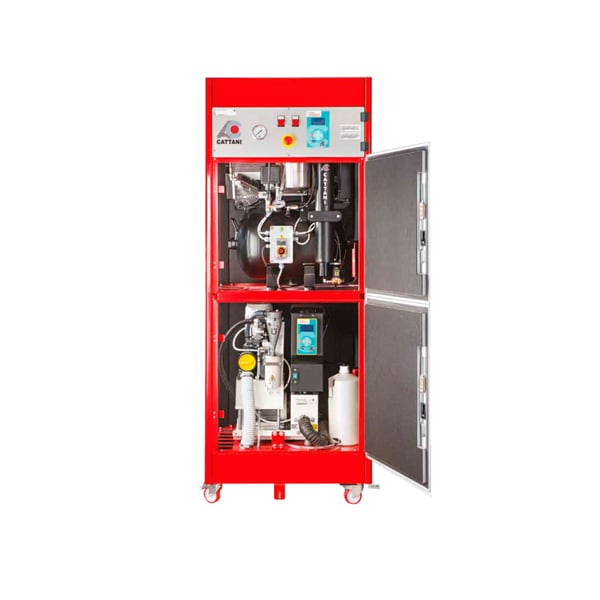

Ventilated and silent, with reduced dimensions and ease of ordinary maintenance thanks to the two doors, while maintenance and mobility of the equipment is easier due to the presence of wheels and panels that can be easily disassembled.

The device has a Turbo-Smart b aspiration unit with amalgam separator. This separator has a working system based on hydrocyclone techniques that recover 98% of the water flow.

It has an AC300 three cylinder compressor with air dryer. All to make a dental unit more than complete. An ideal solution for all dental clinics, an integrated aspiration system with a capacity of up to 5 devices simultaneously.

Turbo Smart B:

Engine: power output 1.5 kW - 9 A
Maximum power in continuous service: 210 mbar
Maximum flow: 1700 l / min

Compressor 3 cylinders with dryer:

Engine: power output 1.5 kW - 6.4 A
45 liter air tank
Effective flow at 5 bar: 238 N l / min

Technical characteristics:

- Turbo-Smart Aspiration Version 'B'

- Motor: Power absorbed 1.8 KW - Absorbed current 7.5 A

- Maximum power in continuous service: 210 MBAR - Maximum flow 1700 L / MIN.

- Compressor of three cylinders AC300 with dryer.

- Single phase motor: Power output 1.5 KW - 10.2 A

- Three-phase motor: Power output 1.5 KW - 3.7 A

- DE 45 L air tank - Effective flow at 5 BAR 238 NL / MIN.

- Sound level: 55 DB (A)

- Measures in MM: L = 757 P = 607 H = 1936

- Net weight: 280 KG
