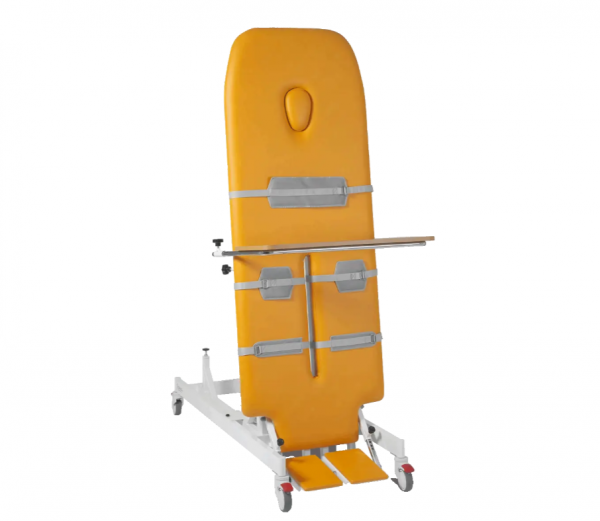

CANALETTO bariatric standing fixed stretcher: one body, with verticalization performed by an electric motor

Fixed single-section stretcher, with verticalisation achieved by means of an electric motor . The fixed height of 49 cm allows the patient to be easily transferred to a wheelchair . The design of the support frame allows the patient to be lifted and transferred comfortably.

Strengths:

- Prone tilt up to 88º.

- 74 cm wide padding for optimal patient comfort.

- The central guide facilitates the fixing of the safety straps on the lower limbs; it also allows a limb to be freed up for possible exercises given by the therapist.

- Two fixed wheels and two swivel wheels, all with brakes.

- Armrest tray available, useful for daily activities and also for upper limb exercises.

- Footrest for both feet with independent adjustment in inclination and decline.

Technical characteristics:

- Electric motor with a thrust force of 8000 N

- Positive tilt up to + 88˚

- Independently adjustable footrest. Positive/negative inclination + - 15˚

- With a set of 5 fixing straps

- Two fixed wheels and two swivel wheels with brakes

- IM1 class fireproof padding and upholstery

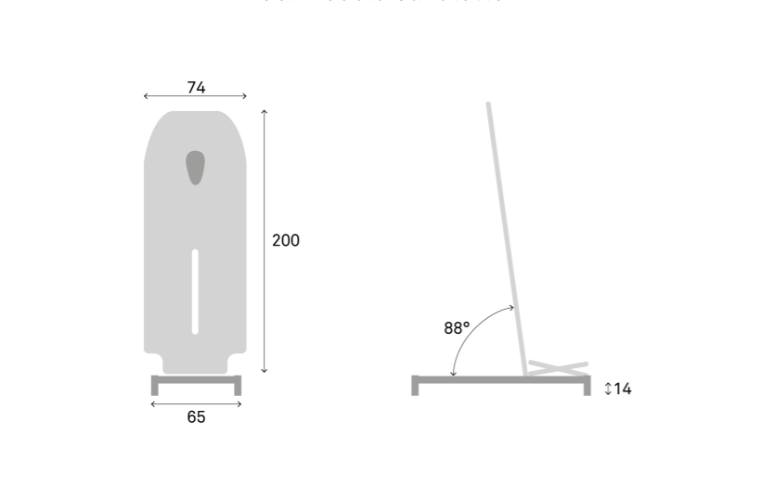

- Dimensions 200 x 74 x 49h cm

- Fixed height 49 cm

- Safety workload 140 Kg

- Maximum capacity 180 Kg

​

Upholstered:

Two types of upholstery to choose from:

- PVC Valencia

- Premium Lettini

Valencia PVC upholstery colours:

Lettini Premium Upholstery Colours:

Color selection process

Choose the color in the " Comments " box during the purchase process by writing the number - name of the desired color

Warranty:

- Lifetime metal structure

- Engine 3 years

- Upholstery 6 months
