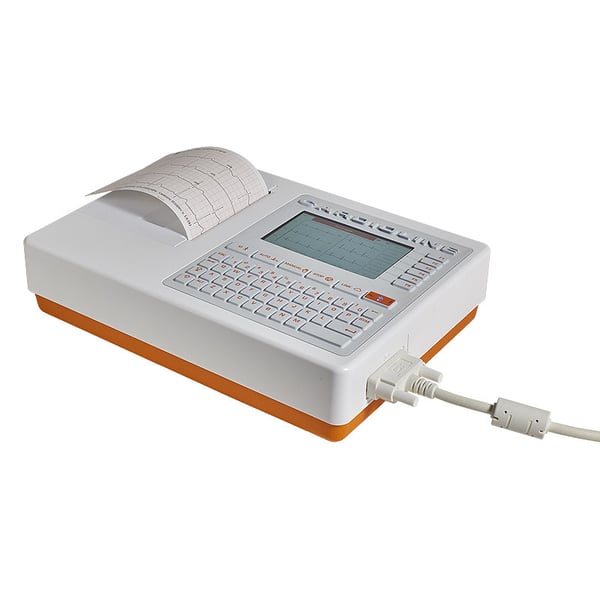

Cardioline ECG 100+ electrocardiograph: 12 leads and 3/6 channels

Cardioline ECG 100+ 12-Lead Electrocardiograph

ECG100+ is an advanced 12-lead electrocardiograph , capable of monitoring, acquiring, printing (on 100mm Z-fold paper 3+1, 3+3, 6 channels) and saving ECG exams of adult, child and neonatal patients . The ECG 100+ extracts critical ECG parameters and offers interpretation when equipped with the Glasgow interpretation software available as an option. This interpretation algorithm takes into account specific criteria in terms of gender, age and race, ensuring a high level of accuracy. The interpretation must be reviewed and validated by a physician to complete the medical diagnosis prior to archiving and exporting the ECG. The ECG 100+ electrocardiograph operates either stand- alone or connected to a computer or computer network (USB, LAN, Wi-Fi). In addition, it can be connected to the most common data management interfaces (DICOM, HL7, XML) and is fully integrated into existing workflows in healthcare structures, even connecting to centralized patient databases. .

Strengths:

- Allows the acquisition of diagnostic quality ECG tests , capable of meeting and exceeding the strictest standards and integrating multiple communication options.

- Thanks to the interpretation algorithm developed at the University of Glasgow, it offers state-of-the -art technology in relation to resting ECG analysis, including full pediatric interpretation and recognition of ST-segment elevation myocardial infarction (STEMI = ST elevation myocardial infarction), perfect for emergency applications .

- ECG100+ can be connected with the most common data management interfaces (DICOM, HL7, XML) and is fully integrated within existing workflows in health centers, including interconnection with centralized patient records that allows the automatic insertion of personal data and saving of exams. It can also be easily connected to a local computer system (private clinics / small clinics) using the device's USB port, without having to set up advanced network environments, but still allowing bi-directional functionality in managing demographics and tests ECG.

- It offers a complete user interface, intuitive and easy to use. The main operations are easily accessible through dedicated buttons (ID, manual or automatic ECG printing, connectivity) and a quick settings menu allows you to define and save settings. The large, high-quality display provides a detailed preview of the ECG plot, ensuring fast and reliable acquisition.

Technical characteristics:

-   ECG leads: 12 leads (I, II, III, aVR-LF, V1-6)

- CMRR: >100dB

- DC input impedance: No lead-off 1000 MΩ

- A/D converter: 24 bit, 32 kHz

- Sampling frequency: 1000 Hz

- A/D conversion: 20 bit

- Resolution: <1uV/LSB

- Bandwidth: 0.05 - 300 Hz

- Pacemaker recognition: hardware recognition together with digital convolution filter

- Filters:

• Fully digital diagnostic high pass filter
• Filter for digital AC interference (50/60 Hz)
• Low-pass digital filter, muscle filter 25 and 40 HZ 8 only applies for display and printing)

- Defibrillation protection. AAMI/IEC standards

- Front-end performance: ANSI/AAMI IEC 60601-2-25:2011

- ECG storage: internal memory 100 ecg, expansion 1000 ecg (optional)

- Display: 4.3” backlit color LCD, ECG waveform display in real time

- Thermal printer: 8 dot/mm - 108 mm; Z-fold 100 x 150mm

- Manual printing 3 or 6 channels, 5/10/25/50 mm/s

- Auto printer: standard or Cabrera; 3, 3+1, 3+3, 6 channels. Mechanical keyboard with alphanumeric keys and functions

- Connection: USB device, LAN (optional)

- Patient cable: standard 15D, 10 wires

- Data export: CSP (standard), XML-PDF-GDT (included in the standard connection option), DICOM (included in the DICOM connection option) and HL7 (optional)

- Electrical power supply. medical AC power supply (100-240 VAC 50/60 Hz); internal rechargeable battery

- Duration: more than 500 ECGs

- Dimensions: 285 x 204 x 65mm

- Weight: 1.8 kg with battery

Basic endowment:

- User manual

- 10-lead IEC patient cable

- Set of 10 Adapter for tabs

- Tab electrodes: 100

- Dust cover

- Z-fold ecg paper pack 110x150mm x 300 sheets

- AC/DC power supply

- 10A - network cable

Optional gadgets:

- Set 4 peripheral electrodes. "Clamp" Ag/AgCl

- 250 ml bottle of gel (25 units)

- 4 peripheral electrodes Pediatr. "Clamp" Ag/

- Tabs tab electrodes (500 Units)

- 6 Ag/AgCl precordial suction cup electrodes

- Disposable electrode neonatal 25 units

- ECG100 + cart with built-in arm

- Banana disposable electrode (60 u.)

- Dust cover ECG100 +

- Set of 10 clip-banana adapters

- Z-fold ecg paper pack 110x150mm x 300 sheets x 10 packs

- Disposable clip electrodes (600 units)

Warranty:

- 24 month warranty

If you are interested in any optional accessory, you can contact us and we will help you in the configuration that best suits your needs, at the number 91 632 77 40 or at our email tiendafisaude@fisaude.com
