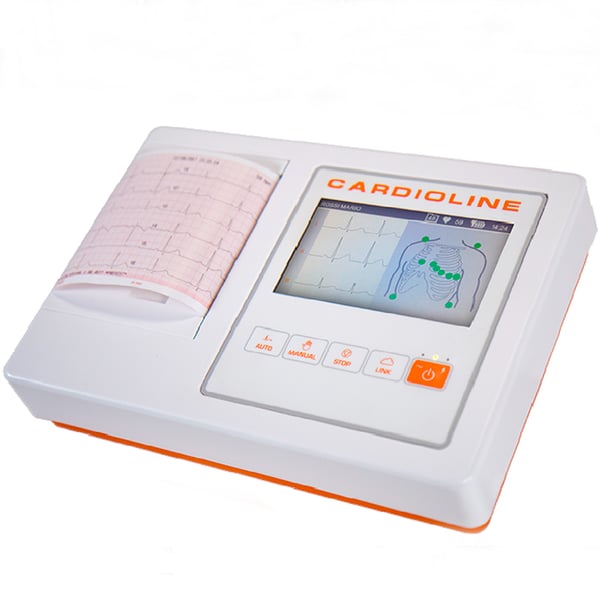

Cardioline ECG100L electrocardiograph: complete, effective and simple portable device for professional use

ECG100S electrocardiograph - complete and intuitive portable device

The ECG 100S device is a portable, fully diagnostic 12-lead electrocardiograph that displays, obtains, prints and memorizes ECG tracings , for adults and children, along with their measurements. It is characterized by a comfortable display with a 5” color touch screen , from which all operations can be easily managed. The device is optionally supplied with the interpretive Glasgow 12-lead resting ECG algorithm . Exporting exams in PDF is possible with the optional EASYAPP application.

Strengths:

- The device is intended for obtaining, analyzing, viewing and printing electrocardiograms . Aimed at providing an interpretation of the data that will be evaluated by doctors and its use in healthcare structures by a doctor or specialized personnel acting on behalf of an authorized doctor. It should not be used as the sole means of determining the diagnosis.

- Interpretation of the device's ECG analysis is meaningful only if used in conjunction with further analysis by a referring physician and an examination of all other important patient data.

- The device can be used in adult and pediatric patients .

- The device should not be used for physiological monitoring or monitoring of vital parameters .

Technical characteristics:

- ECG channels: 12-leads (I, II, III, aVR-LF, V1-6)

- Patient Cable: Standard 15D, 10-leads

- CMRR: > 100dB

- Input impedance: > 100MO

- Input stage sampling rate: 32000 samples/second/channel

- ECG resolution: 500 samples/sec; 5µV/LSB

- Dynamic Range: +/- 330 mV

- Passband: 0.05 - 150 Hz

- Pacemaker Detection: Hardware detection along with convolution

- Filters: digital filter, diagnostic fully digital high-pass filter; adaptive digital AC interference filter (50/60 Hz); digital low pass filter (for display and printing only)

- Defibrillation Protection: AAMI/IEC standard

- Front-end performance: ANSI/AAMI IEC 60601-2-25:2011

- Acquisition mode: Automatic (12-lead), Manual (3/6-lead), Stat (12-lead), Rhythm strip

- Configuration: Standard or Cabrera

- Electrode failure detection: Independent on all leads

- ECG measurements: All leads, averages, corrected QT, Sokolow-Lyon Index

- ECG Interpretation: Adult, Pediatric, STEMI Glasgow Analysis Program

- Export format: SCP-PDF

- PC-ECG “Easy App”: Dedicated management application for PC

- Measurements: 270 x 190 x 60 mm

- Weight: 1.48 Kg

Base equipment:

- User manual

- IEC ECG patient cable, 10 cores, 4mm plug

- 4mm male/female adapters, 10 pieces

- Disposable ECG electrodes, tab, pack of 100 pieces

- EU plug power supply

- ECG100L bag

- ECG paper roll, 100 mm, 20 m conf. 1 pc

Warranty:

24 month warranty
