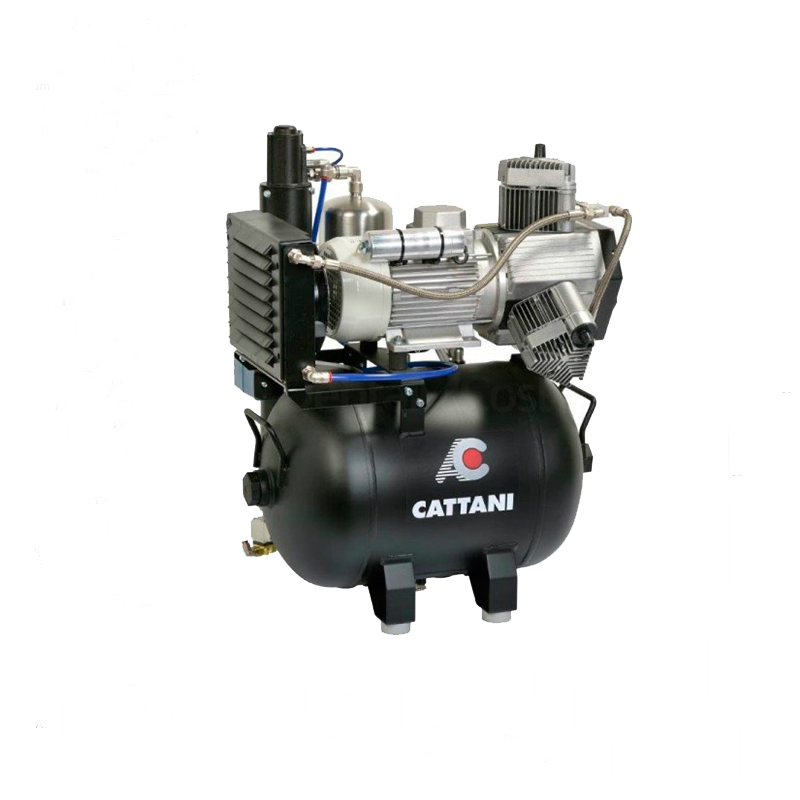

Cattani AC 300 compressor. For four-five dental units with air dryer and oil free

The Cattani AC 300 model is a horizontal, oil-free, 3-cylinder compressor, equipped with 4 filters to guarantee dry compressed air of high quality and purity.

45 liter horizontal tank. The Cattani AC 300 model with air dryer is recommended for use in five dental units. For a better conservation of the air of the compressors, the tanks are internally lined with food grade resin.

The AC 300 compressor has a sound level of 73.6 dB. If soundproofing is desired, it is recommended to complement it with the soundproofing hood, which reduces the level to 51dB.

Oil free air compressor:

Oil-free, equipped with a dryer and a series of filters, it is capable of supplying dry, high-quality, pure air. In 40 years of research we have shown that the oil-free air compressor can be more reliable than a compressor that works in an oil bath.

Maintenance protocol for Cattani devices:

Technical characteristics:

- Single-phase motor 50 Hz - 1.5 kW - 10.2 A

- 45 liter air tank

- Effective flow at 5 bar: 238 l/min

- Sound level: 73.6 dB (A)

- Weight: 65kg

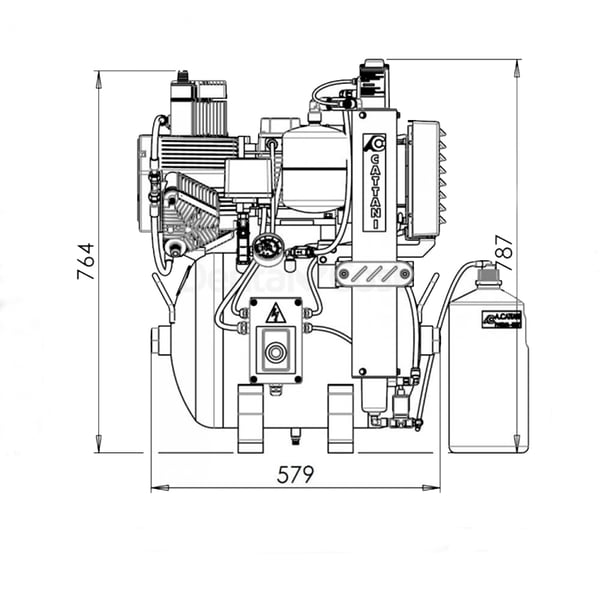

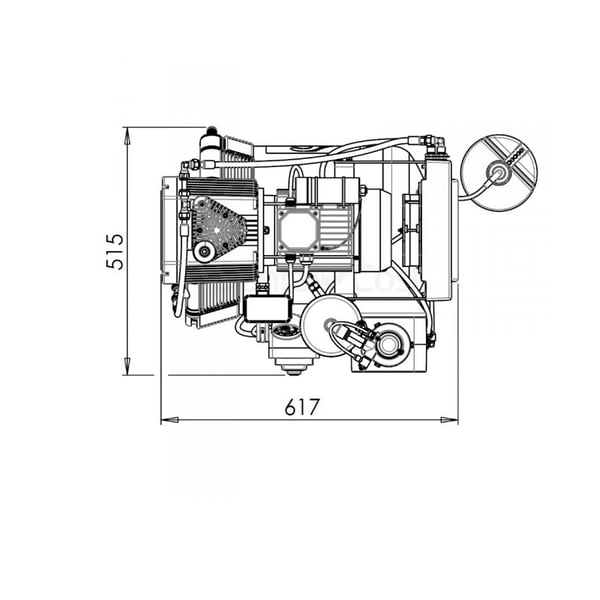

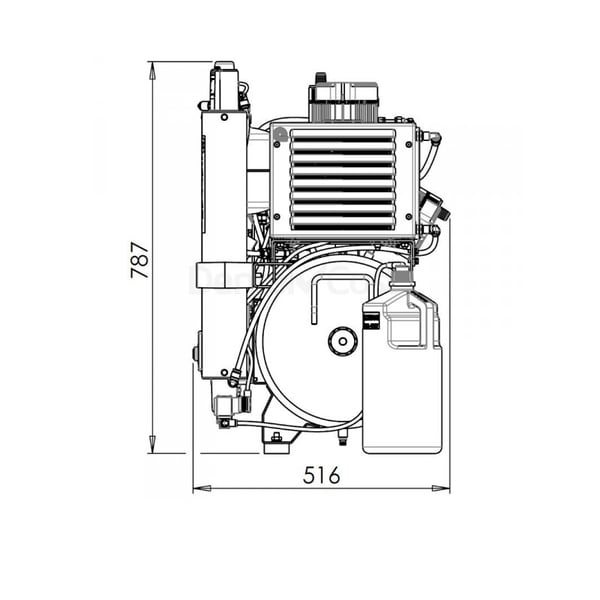

- Dimensions: L=620mm; D=520mm; H=750mm
