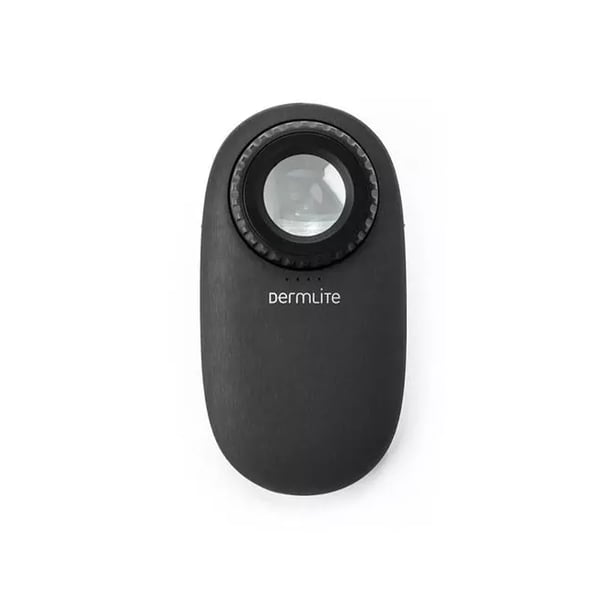

Dermlite DL200HR Dermatoscope: a compact 10x device that fuses quality, precision and comfort

The new HR DermLite DL200 pocket dermatoscope is a high-quality 10x device perfect for use in dermatology. Featuring a compact, ergonomic, easy-to-clean steel design, this dermatoscope combines advanced technology with an innovative retractable separator mechanism for precise focusing and ultra-bright polarized light illumination capability. The battery increases its durability by 20% more than other dermatoscopes on the market and also has integrated connectivity to a compatible mobile device to take photographs using an adapter.

Strengths:

- Advanced optical system with ultra-bright polarized lighting.

- Compact and ergonomic design for easy handling and transport.

- Completely compatible with mobile devices for greater convenience.

- 20% longer battery life on a charge than the previous model.

- Four-level charge indicator for easy monitoring of battery level.

- Automatic shutdown to save battery.

- Contact and non-contact dermoscopy capability

- Face plate with 10mm markings for precise measurements

- Integrated smartphone connectivity through MagnetiConnect™

- Includes IceCap™ infection control caps for greater hygiene as they cover and protect the face plate of the dermatoscope, helping to significantly reduce the risks of cross-contamination.

Technical characteristics:

- Dimensions: 152 x 47 x 26 mm.

- Weight: 128g

- 25 mm 10x lenses.

- High capacity rechargeable lithium ion battery.

- Charge via included USB cable.

- Uses a highly energy efficient LED light source.

How to use:

CAUTION: Do not look directly into the bright LED light. Patients should close their eyes during the facial examination.

1) Charge the internal lithium battery for at least 4 hours before using the device for the first time, using the supplied USD charging cable. See “Battery and Charging” for more information.
2) Caution: If you are using your DermLite to perform fluid immersion dermoscopies, apply the fluid only to the skin and then place the Contact Disc (F) over the fluid. Do not allow fluid to come into contact with the Charging Port (PC).
3) Hold your DermLite DL200 so that the LEDs are pointing towards the skin. Place the device approximately 25 mm above the skin and press the Power button (P) to turn on the device.
4) Position yourself so that your eye is 25-50mm above the DermLite and look through the lens. Move the device away from or toward the skin to focus the image. To perform skin contact dermoscopies or to take images, rotate the Dial (D) to extend the Spacer (S) and focus the image. Press the Mode button (M) to choose between two brightness levels. To turn off the DermLite, press the power button or wait for it to turn off automatically after 3 minutes.

Indications:

The DL200 is the perfect choice for any dermatologist or healthcare professional who needs a high-quality device to evaluate their patients' skin. With its advanced technology and ergonomic design, this dermatoscope offers an exceptional experience for users and accurate diagnosis for patients.

Warranty:

5 years parts and labor
