Diacare Diathermy 6500 with 7" Touch Screen: Multidisciplinary Tecartherapy - Musculoskeletal, Dermatofunctional and Intimate

Diacare 6500 Globus: Advanced Tecar Therapy Equipment for Physiotherapy, Aesthetics and Pelvic Floor

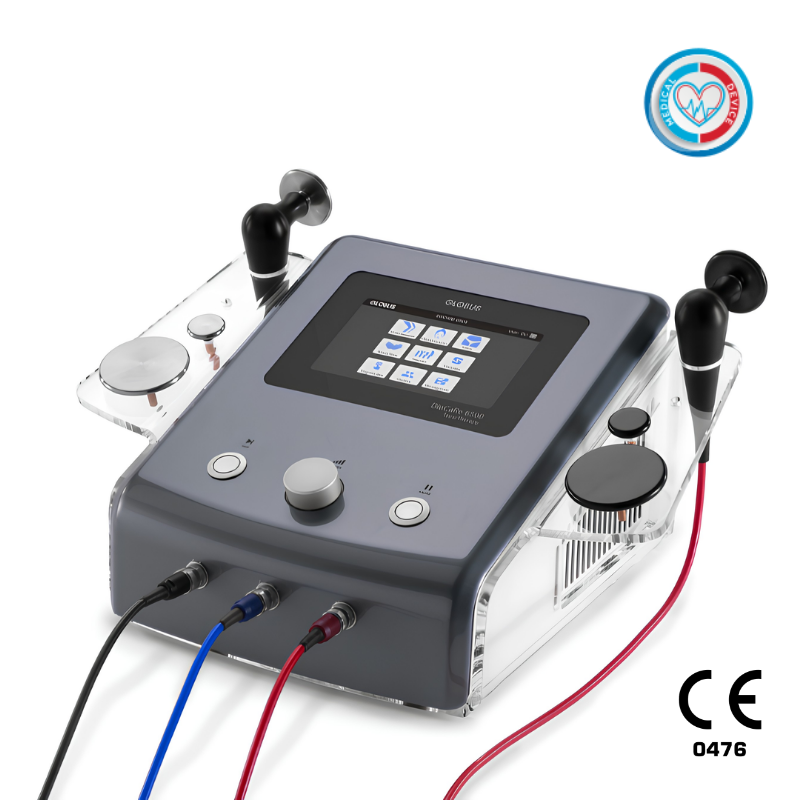

The Globus Diacare 6500 is the most versatile and innovative tecartherapy (diathermy) device on the market, specifically designed to meet the demands of the most advanced healthcare professionals. This device perfectly combines musculoskeletal therapies, dermatofunctional treatments, and pelvic floor rehabilitation on a single platform. Thanks to its powerful emission, 7-inch color touchscreen, and the ability to create, customize, and save programs, the Diacare 6500 becomes an indispensable tool for accelerating the recovery from acute, subacute, and chronic conditions.

Key points

• Total clinical versatility: Combines sports physiotherapy treatments, aesthetic medicine and intimate health (compatible with Intima Kit).
• True multifrequency: Works with 6 different emission frequencies (300kHz, 400kHz, 448kHz, 470kHz, 700kHz and 1000kHz) to act at different depths of the tissue.
• Advanced special functions: Includes modes such as automatic frequency scanning, athermal treatments, transdermal delivery, and pulsed emissions.
• Maximum customization: Allows the creation of free programs (up to 3 phases per treatment) and the storage of patient profiles in your user menu.
• Absolute compatibility: Its compact design is compatible with all accessories in the Globus Diacare range, such as fascial and bipolar handpieces and the hands-free kit.

Differentiating points

• Power and Frequency Range : It incorporates 250W of nominal power and 6 emission frequencies (300kHz, 400kHz, 448kHz, 470kHz, 700kHz, 1000kHz) for unprecedented tissue penetration.
• Range of Treatments : Covers a full spectrum with 53 predefined programs (26 musculoskeletal, 23 dermatofunctional and 4 specific to the Intima Kit).
• Exclusive Special Functions : It has athermal treatment, automatic frequency scanning, transdermal delivery, neuro care and Hands Free Treatment mode.
• Interface and Design : 7" color touchscreen, compact 11.5 kg design and full compatibility with the DiaCaRe accessory range.

Technical specifications

• Screen: 7-inch color touchscreen with intuitive interface.
• Nominal power (NP): 250W ±10% (160W RMS / 180W RMS with Boost function in resistive mode).
• Emission frequencies: 300kHz, 400kHz, 448kHz, 470kHz, 700kHz, 1000kHz (± 10%).
• Treatment modalities: Capacitive (for soft and superficial tissues) and Resistive (for bones, tendons and ligaments).
• Electrodes included: 3 sizes of Ø (30, 50, 70 mm) in both capacitive and resistive modes.
• Emission: Continuous and pulsed (ideal to avoid thermal peaks in acute phases).
• Power supply: 220-240V / 50-60Hz (3.7A).
• Dimensions and weight: 310 x 360 x 180 mm / 11.5 Kg.
• Classification: Class IIb medical device (Directive 93/42/EEC).

Predefined uses and programs

The Diacare 6500 includes a wide range of pre-set programs geared towards various clinical areas:

• 26 Musculoskeletal Programs: Treatment of bone, joint, muscle, tendon, nerve and vascular pathologies (osteoarthritis, hernias, muscle injuries, lymphedema, etc.).
• 23 Dermatofunctional Programs: Focused on dermal regeneration, scars, sagging, cellulite, localized adiposity and post-surgical recovery.
• 4 Intima Kit Programs: Hypotonia, hypertonia, fibrosis and pelvic floor scars.
• 11 Special Functions: Highlights include the Neuro Care programs (pulsed modulations for desensitization and pain relief), Transdermal Delivery (absorption of active ingredients), Athermal Treatment (biostimulation without heat for acute injuries) and Hands-Free Treatment.

Who is it aimed at?

• Physiotherapists and rehabilitation clinics: To accelerate recovery processes in sports and trauma injuries.
• Specialists in Dermatofunctional and Aesthetic Medicine: For anti-aging, firming and body contouring treatments.
• Pelvic Floor Specialists: For urogynecological therapies using the Intima Kit.
• Sports physicians, podiatrists, and chiropractors: Professionals seeking a powerful tool for deep tissue regeneration and pain relief.

Warranty

The equipment comes with a 24-month warranty for private buyers and a 12-month warranty for professional users, applicable to defects in materials or workmanship under normal use. Accessories subject to wear and tear (cables, electrodes) have a 6-month warranty.
