Digital diagnostic camera: RCS-100 Riester with interchangeable lenses acts as an otoscope, dermatoscope, general lens and endoscopy adapter

The Riester RCS-100 is a portable digital medical camera system designed to quickly and efficiently capture, view, and share high-quality clinical images. This multifunctional device is optimized for telemedicine applications , improving communication between healthcare professionals and facilitating more accurate diagnoses in both clinical and remote settings.

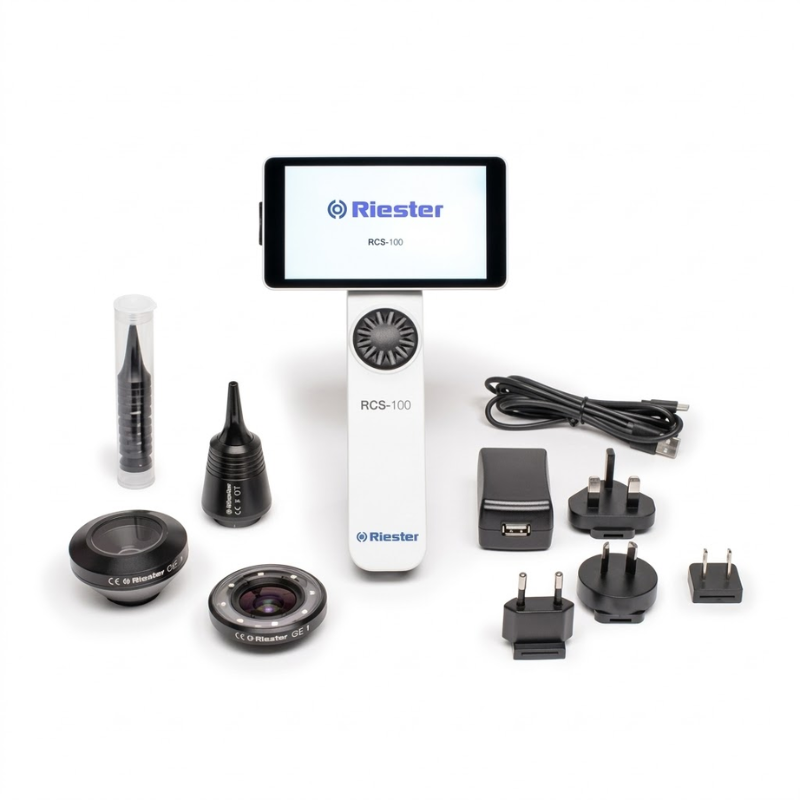

It features interchangeable lenses and specialized accessories that make it a versatile solution for various medical areas such as general medicine, dermatology, otolaryngology, and endoscopy.

Strengths:

- 8 MP HD camera for high-resolution images.

- Portability and ergonomic design for one-handed use.

- 5” touchscreen with intuitive interface.

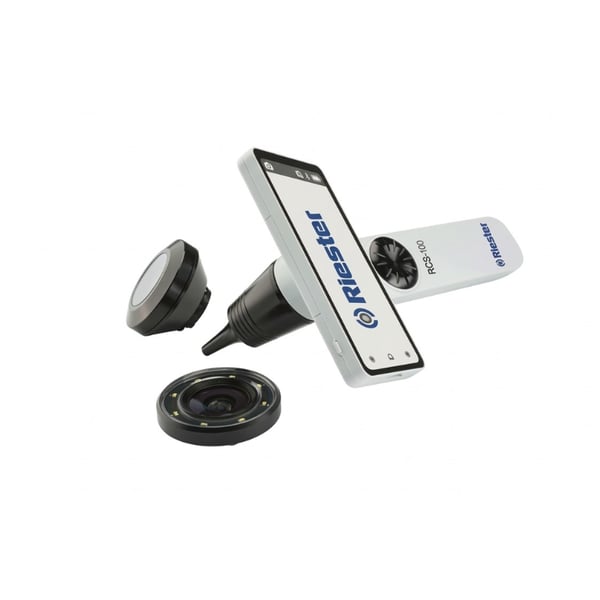

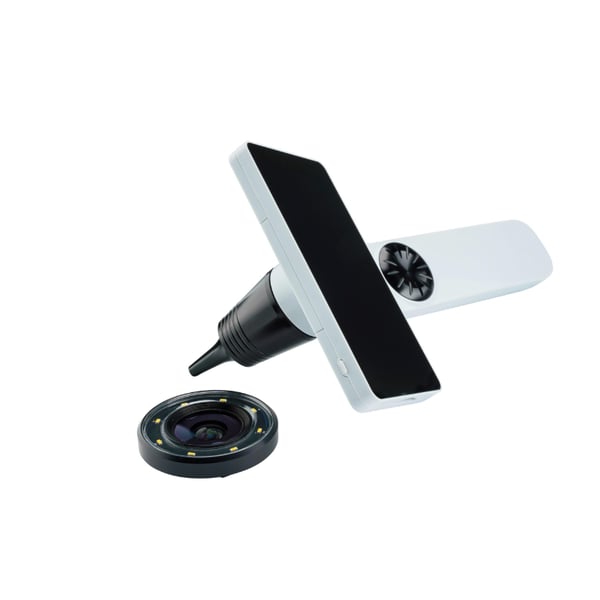

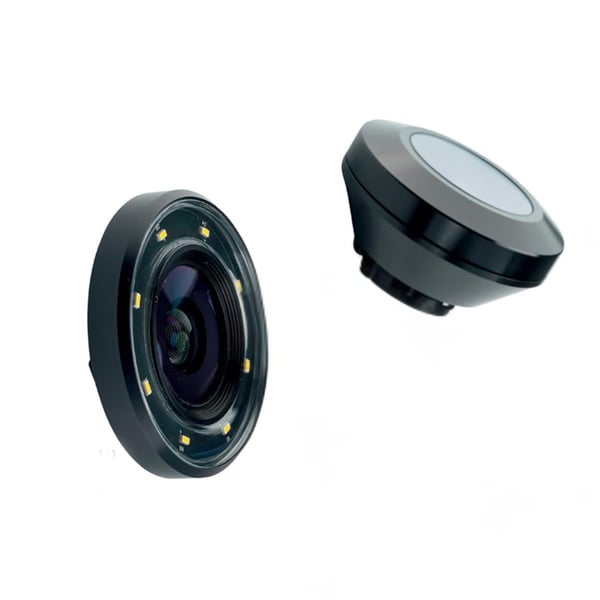

- Compatibility with multiple lenses: otoscope, dermatoscope and general lens .

- Telemedicine capability, allowing real-time image sharing.

- Live video modes for interactive diagnostics.

- High-precision LED lighting with faithful color reproduction.

- Optical and digital zoom (up to 8x depending on the application).

- Long-lasting battery (up to 3.5 hours in video mode).

- Software available in multiple languages.

- Compatible with endoscope adapters from various manufacturers.

Technical specifications:

General:

- Dimensions: 225 × 135 × 45 mm

- Weight: 292 g

- Screen: 5” touch LCD (1280 × 720 px)

- Sensor: CMOS ~8 MP (up to 3296 × 2512 px)

- Formats: JPEG Image / MP4 Video

- Focus: Automatic and manual

Memory and connectivity:

- RAM: 2 GB LPDDR3

- Internal storage: 16 GB

- Expansion: SD card (optional, 16 GB)

- Connectivity: USB OTG and USB Type-C

Battery:

- Type: Lithium ion (18650)

- Capacity: 3.6V / 2600mAh

- Battery life: Up to 3.5 hours in video mode

Optics and visualization:

Increase:

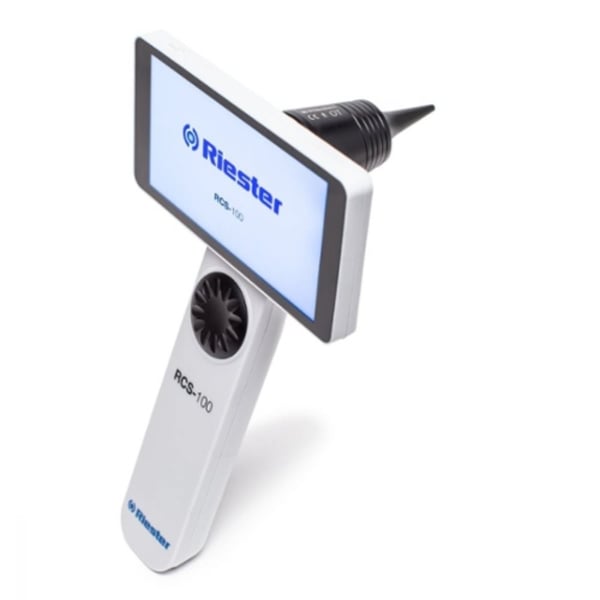

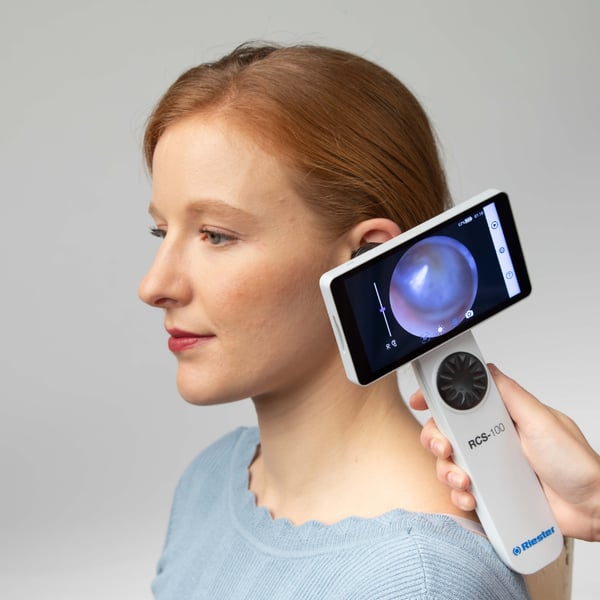

- Otoscope: 2x – 6x

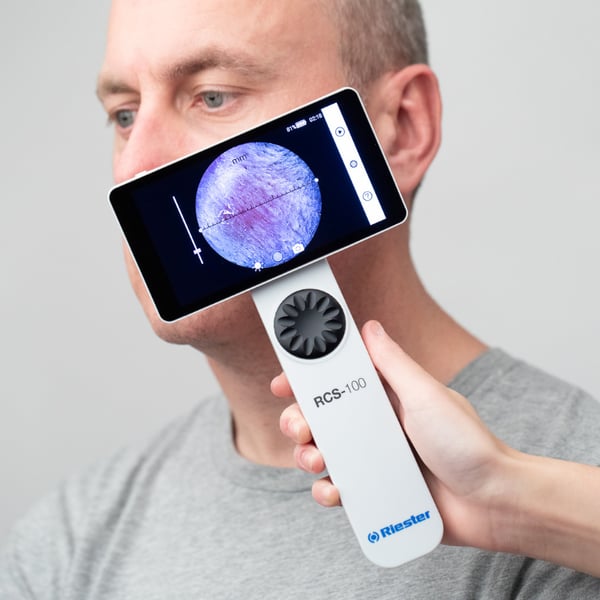

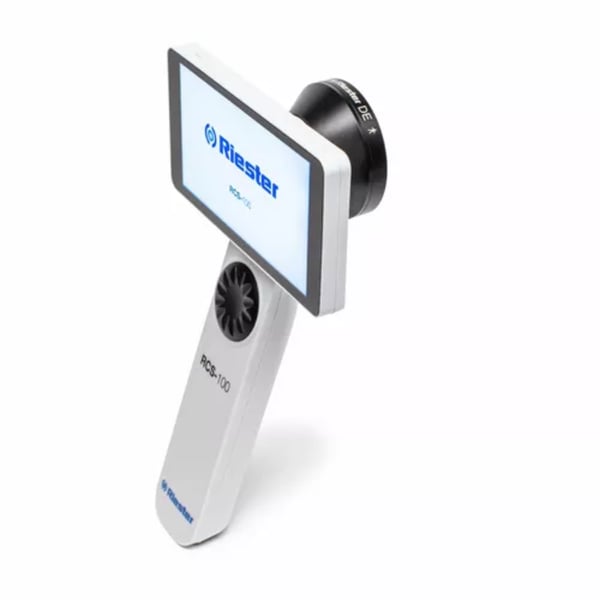

- Dermatoscope: 2x – 8x

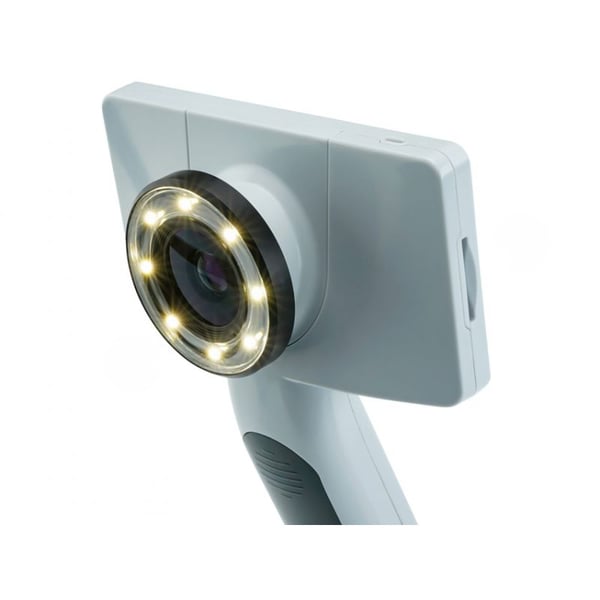

Lighting: Natural light LED (4000K – 5500K)

Feeding:

- Input: 100–240 VAC / 50–60 Hz

- Output: 5 VDC / 2 A

Compatibility:

- Adapters for standard DIN endoscopes (Wolf, Storz, Olympus, among others)

Warranty:

2-year warranty
