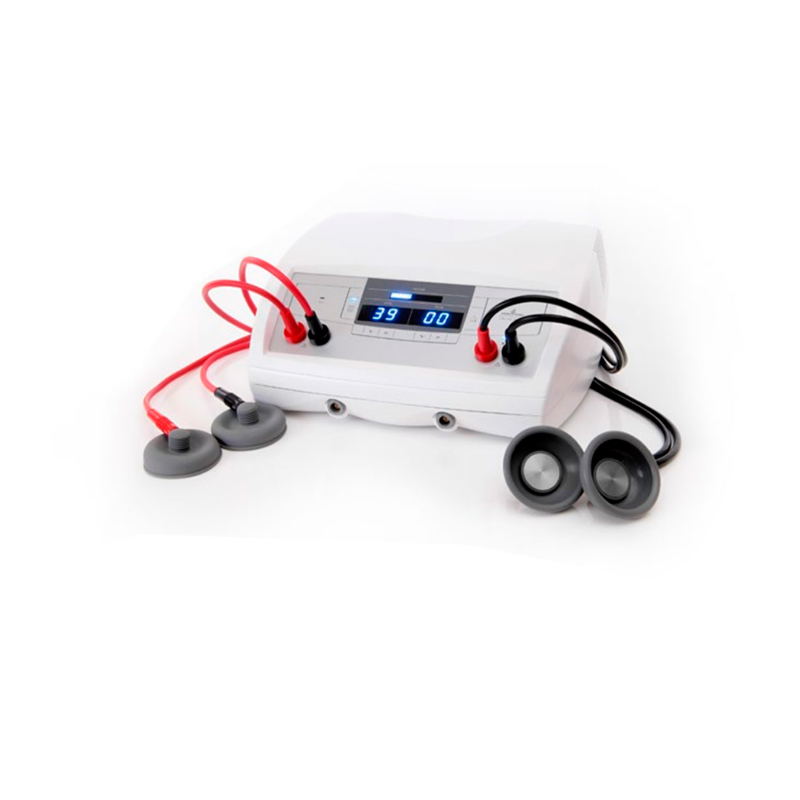

DST-Invacmed vacuum equipment: Efficiency, versatility and compatible with any electrotherapy equipment

The DST-Invacmed vacuum equipment is a modern 2-channel device for combined treatment of vacuum massage and electrotherapy. The efficiency and intensity of vacuum wave therapeutic treatment is increased with the use of electrotherapy.

It is compatible with electrotherapeutic treatment in case of swelling of the extremities caused by injuries, in acute and chronic pain, disorders of the peripheral circulation, stagnation of veins and lymphatics and to achieve muscle relaxation in spastic conditions.

Technical characteristics:

- 2 independent channels.

- Possibility of performing a vacuum massage without the application of currents to stimulate blood circulation and metabolism.

- Cooperation with electrotherapy units.

- Quick and practical fixation of electrodes in hard-to-reach body sites.

- Perfect adhesion of the electrode on the body.

- Independent connection of the electrotherapy electrode.

- Constant and pulsatile vaccum.

- Low noise level in operation.

- Electronic control and protection against too high vacuum force.

- Indication of filling of the water tank.

- Energy saving function.

Technical data:

Vacuum Wave Frequency [impulses/min.]: 15-90

Vacuum [mbar]: 400

Number of electrodes: 4

Power supply [V/Hz]: Current 230/50

Consumption [A]: 0.1

Dimensions [mm]: 335 x 135x 325

Weight [kg]: 3.4

base endowment:

- Four vacuum electrodes (60 mm) with sponges.

- Complete set of electrode cables.

- Electrotherapy device connection cable.

- Power supply cable.

- Interconnection cable for electrotherapy equipment.
