EvoStim UG therapeutic unit: two perineal electrostimulation channels. Composed of batteries, instruction manual, connection cables and vaginal or anal probe. Perfect for incontinence reeducation

EvoStim UG therapeutic unit: perineal electrostimulation with two channels for the re-education of incontinence

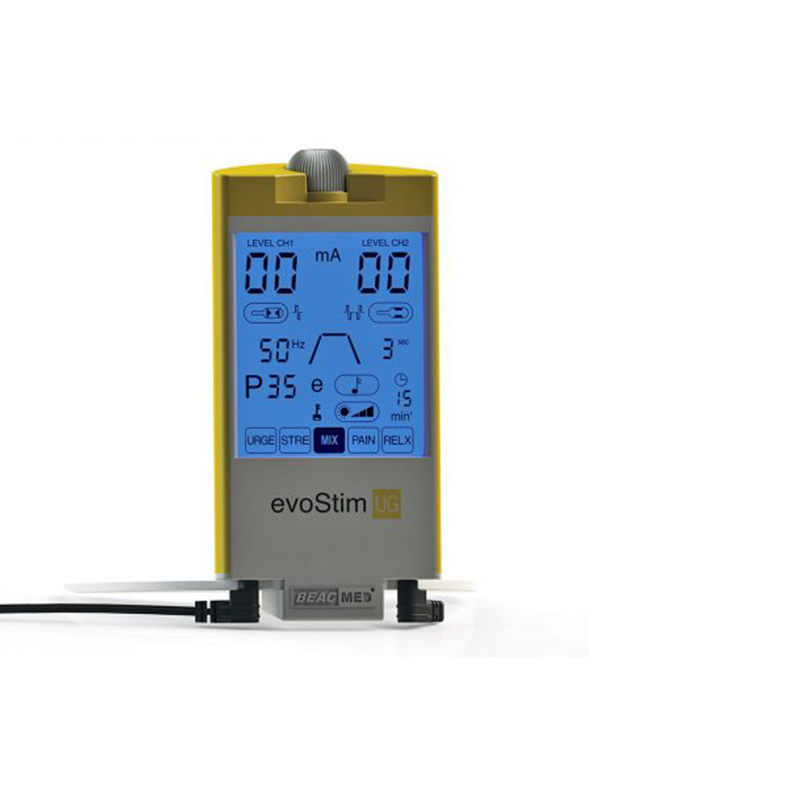

The EvoStim UG electrostimulation device has two channels and is the most suitable for perineal stimulation through vaginal or anal probes . The integrated touch screen with a rotary knob contains a user-friendly interface for the patient and very efficient for the practitioner . One of the advantages that the EvoStim UG offers is the efficiency and comfort of perineal stimulation . The automatic selection of the waveform, according to the type of probe selected (with annular or lateral electrodes), allows to obtain the best comfort and optimal therapeutic results with any type of probe that is on the market. Furthermore, the Intellistim® function in the 5 basic programs allows the user to vary the stimulation frequency without worrying about modifying the other parameters. Each of the 5 touch quick selection buttons can be associated with 9 different memory programs, as an alternative to the basic programs.

Strengths:

- Large LCD display with touch screen

- 5 touch selection base programs under the Intellistim® function

- Automatic waveform selection

- Multi-color backlit display

- Possibility of working with one hand

- Detection of open outlet channels

- Two stimulation channels with independent intensity and waveform

Technical characteristics:

- Number of channels: 1 stimulation + 1 biofeedback

- Power supply: 4.5V with 3 1.5V Alkaline AAA batteries (LR03). Battery life: about 20 hours.

- Output current: 60mApp at 1000 Ohm load adjustable in 1mA steps

- Frequency: 1 to 150 Hz (1-2-3-4-5-10-12-14-16-18-20-25-30-35-40-45-50-60-70-80-90 -100-110-120-130-140-150) (± 5%)

- Pulse width: adjustable from 50 to 400 μs in steps of 10 (± 5%)

- Type of impulse: selectable between BIPHASIC SYMMETRIC and BIPHASIC SYMMETRIC ALTERNATE.

- Rise time: automatic depending on the frequency during the ACTION

- Holding time: from 1 to 60 sec. in steps of 1 s. (± 1 s.)

- Lowering time: automatic depending on the frequency during the ACTION

- Rest time: from 0 to 60 sec. in steps of 1 s. (± 1 s.)

- Standby frequency: automatic depending on the frequency during the ACTION

- Session time: selectable between 5 - 90 min '. (± 1min '.) Or continuous stimulation (C).

- Connections to applied parts: protected 2 mm male connector

- Dimensions and weight: 140x70x25 mm - 150 g. batteries included

- Environmental limits: 15-35 ° C - 20-80% UR
