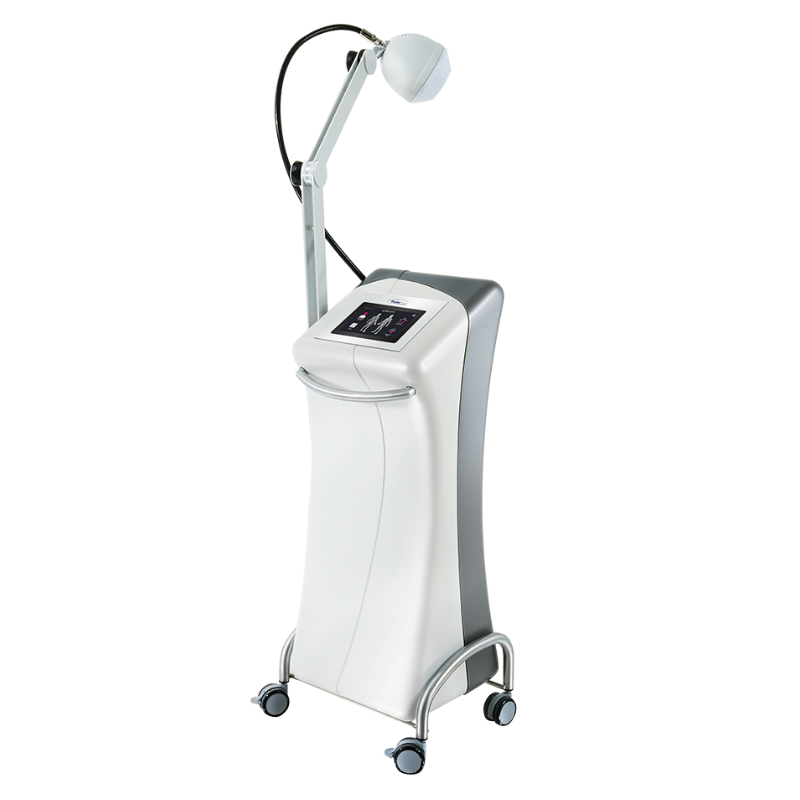

FISIOWAVE 250W Microwave Equipment (radar therapy): designed for physiotherapy and medical treatments

Fisiowave is a microwave diathermy device (radar therapy) designed for physiotherapeutic and medical treatments that require deep and controlled thermal transfer into the tissues.

It uses electromagnetic waves in the microwave band (2450 MHz), generating deep therapeutic heating that promotes increased blood flow, accelerates cellular metabolism and contributes to functional recovery .

The device incorporates a powerful, self-protected magnetron generator with automatic regulation , capable of continuous and pulsed operation, allowing for both thermal and non-thermal treatments. Thanks to its high peak power (1600 W), Fisiowave guarantees effective penetration and rapid clinical results .

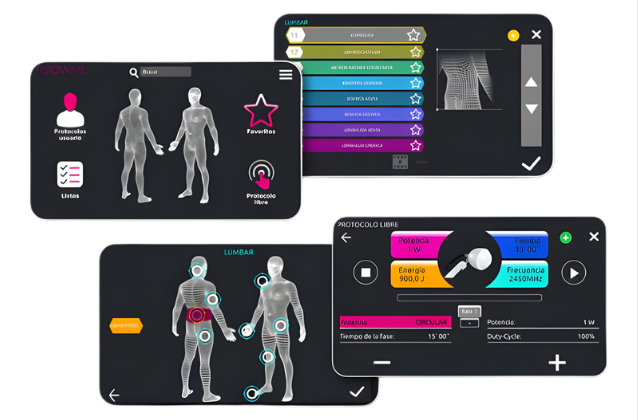

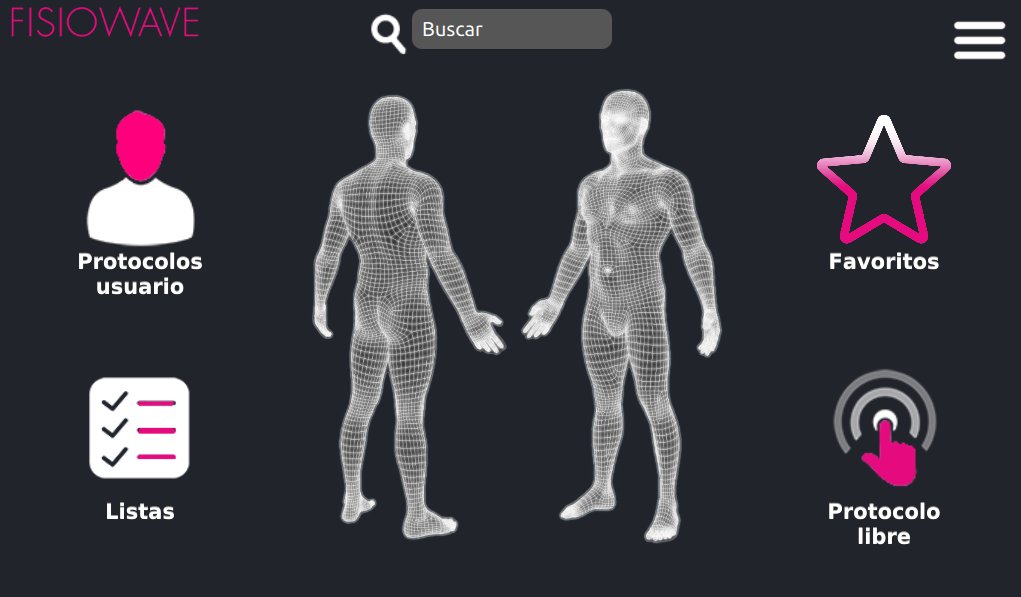

It features a 7” color TFT touchscreen , software with a digital assistant (Wizard) and a library of preset and customizable protocols.

Strengths:

- Microwave diathermy technology (2450 MHz)

- Peak power up to 1600 W

- Average power of 250 W

- Continuous and pulsed emission (configurable duty cycle)

- Automatic magnetron temperature control

- 7” color TFT touchscreen

- Wizard with pathology library

- More than 100 free memories

- Customized programs with up to 4 phases

- Multidirectional articulated mechanical arm

- Easily interchangeable antennas

- Patient and therapist safety system

- Upgradable via USB port

- Ergonomic design with mobile cart

Technical applications:

Therapeutic Indications:

- Muscle contractures

- Lumbosciatica

- Neck pain

- Osteoarthritis

- Post-traumatic pain

- Tendinitis

Main Therapeutic Effects:

- Pain reduction

- Reduction of joint stiffness

- Reduction of edema

- Reduction of inflammation

- Increased blood flow

- Muscle-relaxing effect

Technology and functionality:

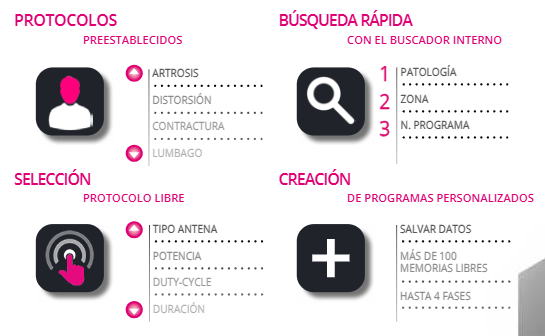

Wizard System:

Digital assistant that guides you step by step in selecting the therapeutic protocol.
Allows:

- Selection by pathology

- Selection by anatomical zone

- Selection by program number

- Parameter modification

- Creation of customized protocols

Protocols:

- Pre-established protocols

- Configurable free protocol

- Power setting, duration, antenna type and duty-cycle

- Storing patient data

- More than 100 memories available

- Programs with up to 4 phases

Available Antennas:

Includes:

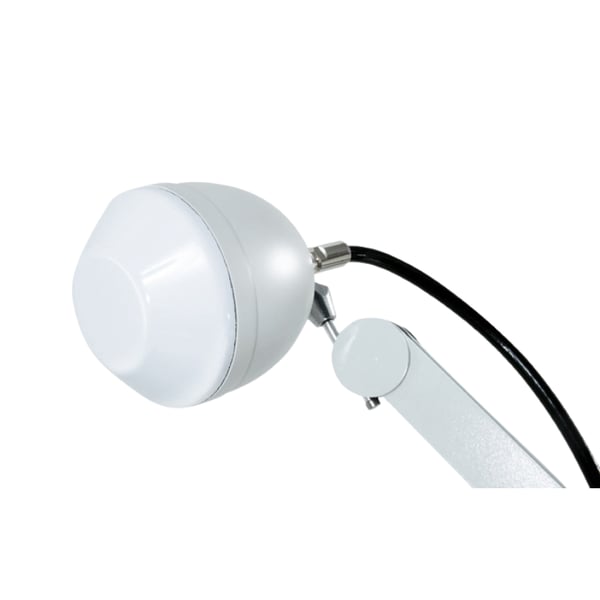

- Circular antenna Ø17 cm (localized field)

Optional:

- Rectangular antenna (long field)

- Three-dimensional antenna (surround field)

Technical specifications:

- Model : Fisiowave
- Commercial classification : Microwave radar therapy device
- Technical classification : Electromedical device Class I Type B
- Medical device class : IIb (Directive 93/42/EEC as amended by Directive 2007/47/EC)

- Emission frequency : 2450 MHz
- Emission : Continuous and pulsed (duty-cycle 10% – 90%)
- Adjustable power : 0 – 250 W
- Peak power : 1600 W
- Thermal control : Automatic with overheating suspension
- Timer : 1 – 30 minutes
- Energy calculation : Automatic according to programmed parameters

- Screen : 7” color TFT touchscreen
- Interface : Interactive software with internal search engine
- Update : USB Port

- Power supply voltage : 230 V (115 V on request)
- Mains frequency : 50–60 Hz
- Power consumption : 600 VA

- Dimensions : 320 × 430 × 980 mm
- Weight : 38 kg

Accessories:

Included :

- 1 circular radiating antenna Ø17 cm

- 1 Articulated support arm

- 1 Antenna cable

- 1 Test warning light

Optional :

- Rectangular antenna

- Three-dimensional antenna

- Protective goggles

Security and certifications:

- Automatic magnetron temperature control

- Automatic overheating shutdown

- Patient and operator protection systems

- CE marking in accordance with Directive 93/42/EEC as amended by 2007/47/EC

- Liability insurance included

Warranty:

- Official manufacturer's warranty (subject to current commercial conditions).

- Specialized technical service.

- Availability of original spare parts and accessories.

- Software update via USB port.
