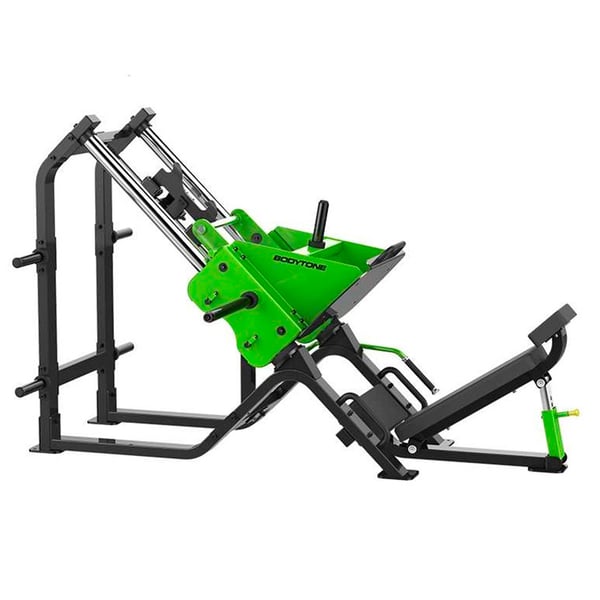

Fitness machine Bodytone Solid Rock Press Oblique legs

Fitness machine Bodytone Press Oblique Rock Solid legs with rear seatback multiposition drive support and safety lever.

Technical characteristics of the fitness machine Bodytone Solid Rock Press Oblique legs

- Chassis: steel tube 110 mm x 52 with a thickness of 3 mm.
UNE EN 10219 soldier, quality S-275-J0H. Enriched and optimized to maintain a constant section in the bending process, avoiding fragile areas with low breakage rate. Cold bending process using 4-roller system, avoiding deformation in the process, keeping its physical characteristics throughout the piece.
- Painting: 50 microns epoxy primer. Surface finish with two component epoxy paint 90 microns, with high antioxidant level moisture and sweating. High quality pigment, with high gloss finish used in automotive. Tunnel painted painting and drying at 60 °.
- Welding closed perimeter structural points and tie plates. Assembly system: system plate - against plate 10 mm thick, avoiding twisting and gaps in areas of high demand. ergonomic and biomechanical study optimal for each exercise
- Axles: laser cut plates of 10 mm reinforced other plate 10mm for proper backlash or twisting movement caused by the use and load.
- Bearing: Double tapered roller bearing SKF, packed in closed hub, anti clearance, ensuring constant movement direction.
- Back and seat: In resistant to perspiration, antibacterial and anti-allergic leatherette. Logo embroidered upholstery. Back, seat and rollers in flexible polyurethane foam density 80 Kg./m3, providing optimum support for the exercise and uniform contact. Resistant to deformation.
- Handles: 3mm rubber. slip and resistant to erosion. Optimal density for a total contact grip for carrying out the exercise. Bumpers fists in solid aluminum.
- Regulations: 8 position adjustable seat, chrome and numbered laser.
- Other: 4 brackets in chromed steel disc, making the machine more stable. Rubber stops 20 mm thick disc media. Rubber stops 50mm to support moving parts. 10.9 screws hardness. Regulation system by a single bolt, made in technopolymer with breakage rate of 750 kg. 4 slip rubber bases. Platform support slip aluminum foot. Independent action, convergent and divergent movement simulating the action of free weights. 4 slip rubber bases.

Dimensions and weight machine fitness Solid Rock Bodytone Press Oblique legs

- Dimensions: 154 x 250 x 188 cm
- Total weight: 278 kg (450 kg maximum load)
