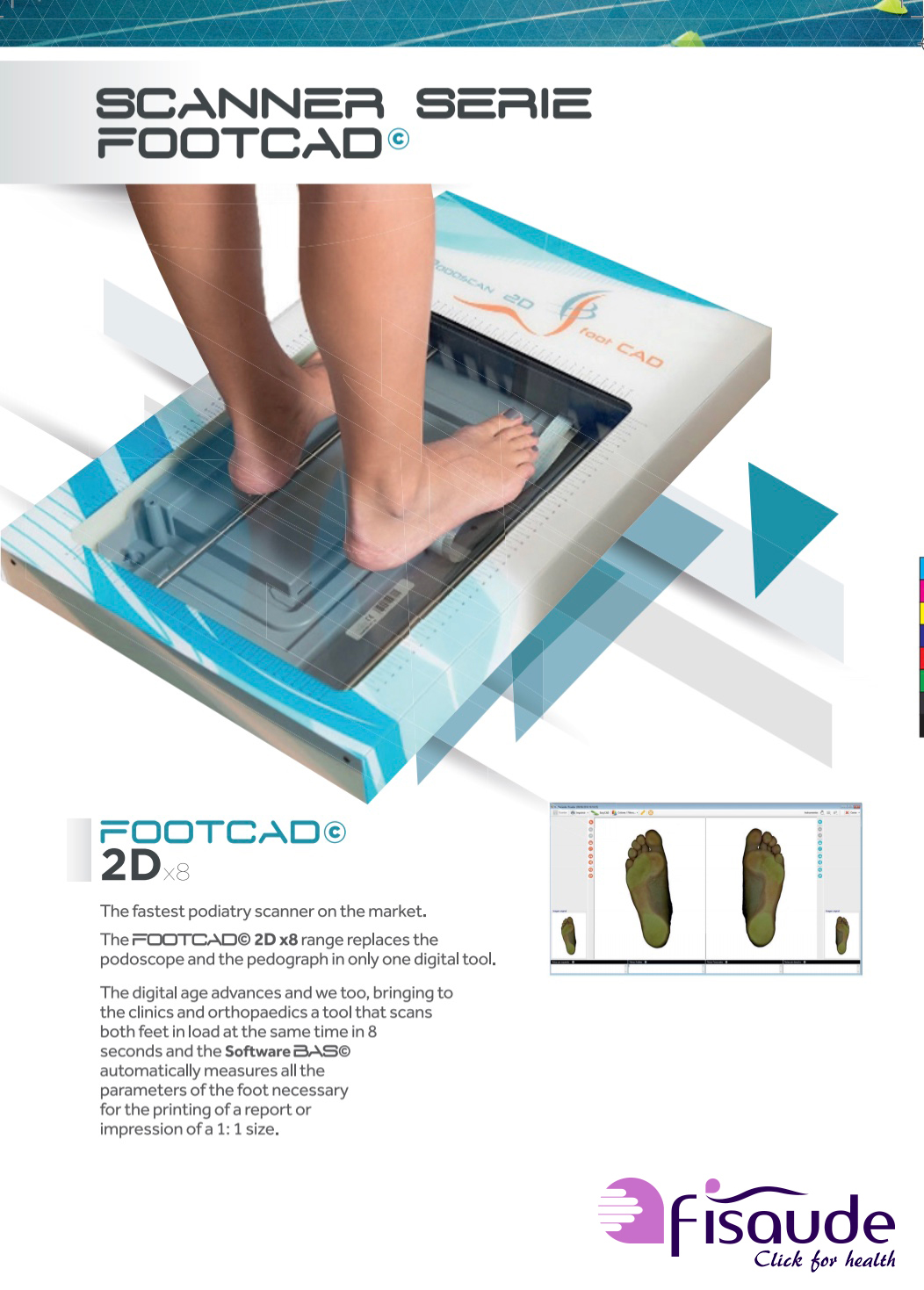

Description FootCAD 2D X8 Plantar Scanner: Faster and more accurate

FootCAD 2D X8 Plantar Scanner: Faster and more accurate

The new high resolution and high speed 2D FootCAD comes to the market. This plantar scanner allows us to perform a fast and very accurate analysis of both feet at the same time and implement with the Software that provides new modes of action automatically. Scan time 8 seconds, compatible with Windows 8/10. Resolution 300ppp

For clinics and orthopedics:

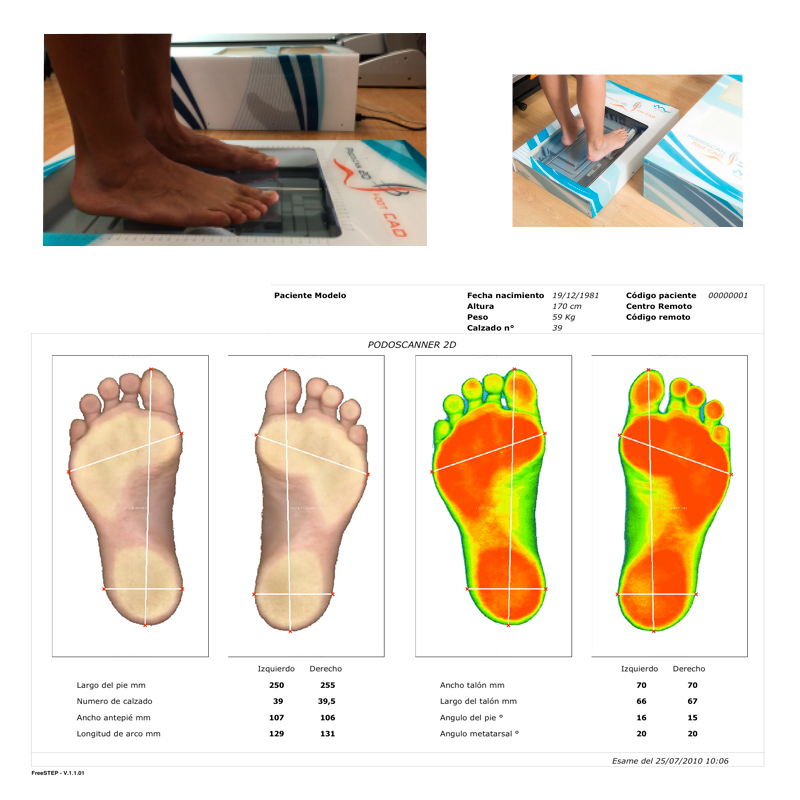

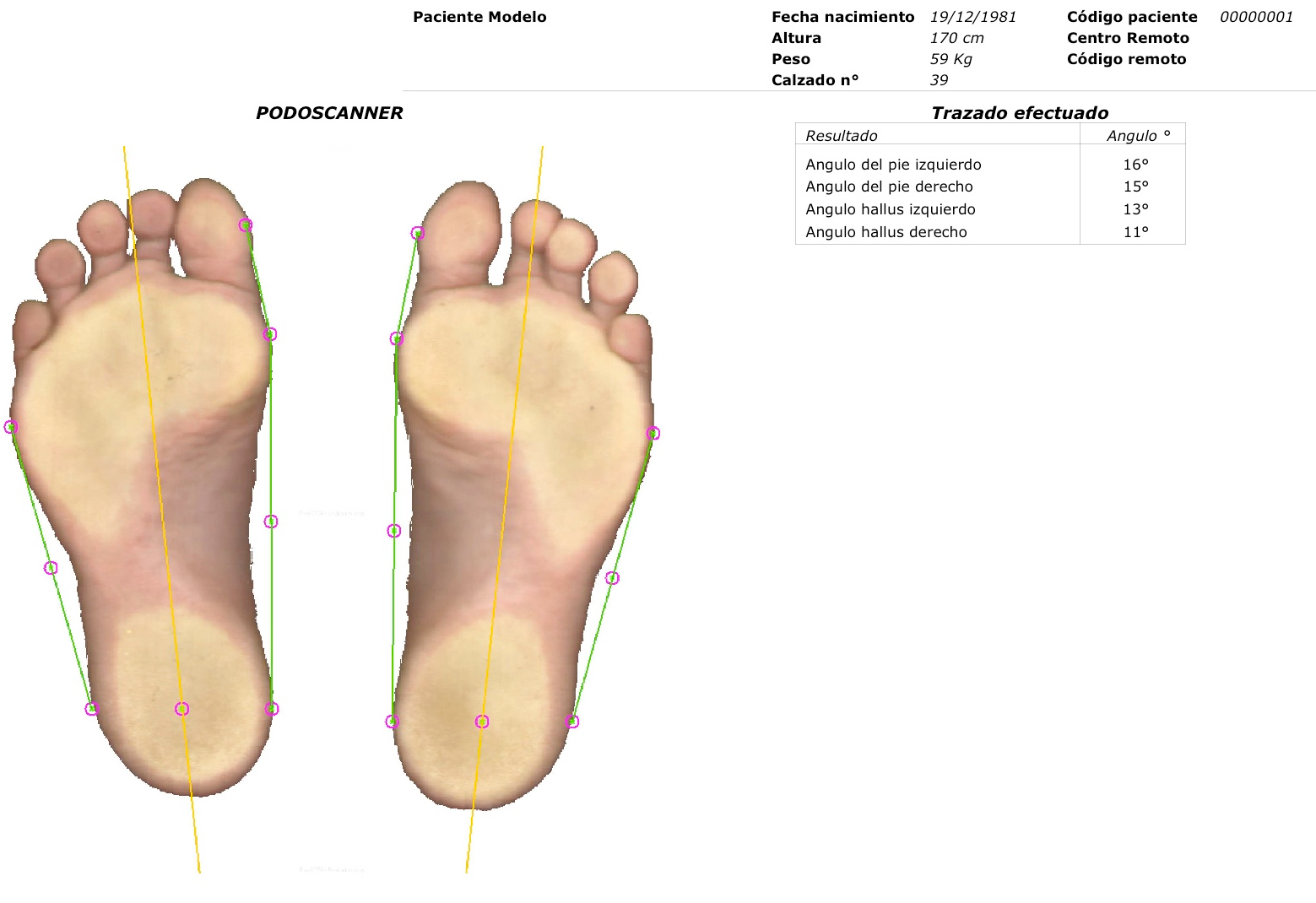

The FootCAD 2D X8 plantar scanner is essential in consultations where a podoscope is required. However, this device is not just a podoscope, it is much more: it is a system for analyzing the digital plantar loads, with the possibility of archiving the images in the patient's database and automatically measuring the foot and comparing the support symmetries.

At the same time, it is capable of carrying out the functions of the traditional podoscope, being able to mark the possible selective discharges directly on the patient's foot , placing the discharge elements such as metatarsal bars or almonds, hindfoot control bars, etc. and apply them in a traditional way by printing a life-size pedigree with those already established brands or transfer them to the foot orthosis design software (EasyCad) included in the FreeStep Full professional pack.

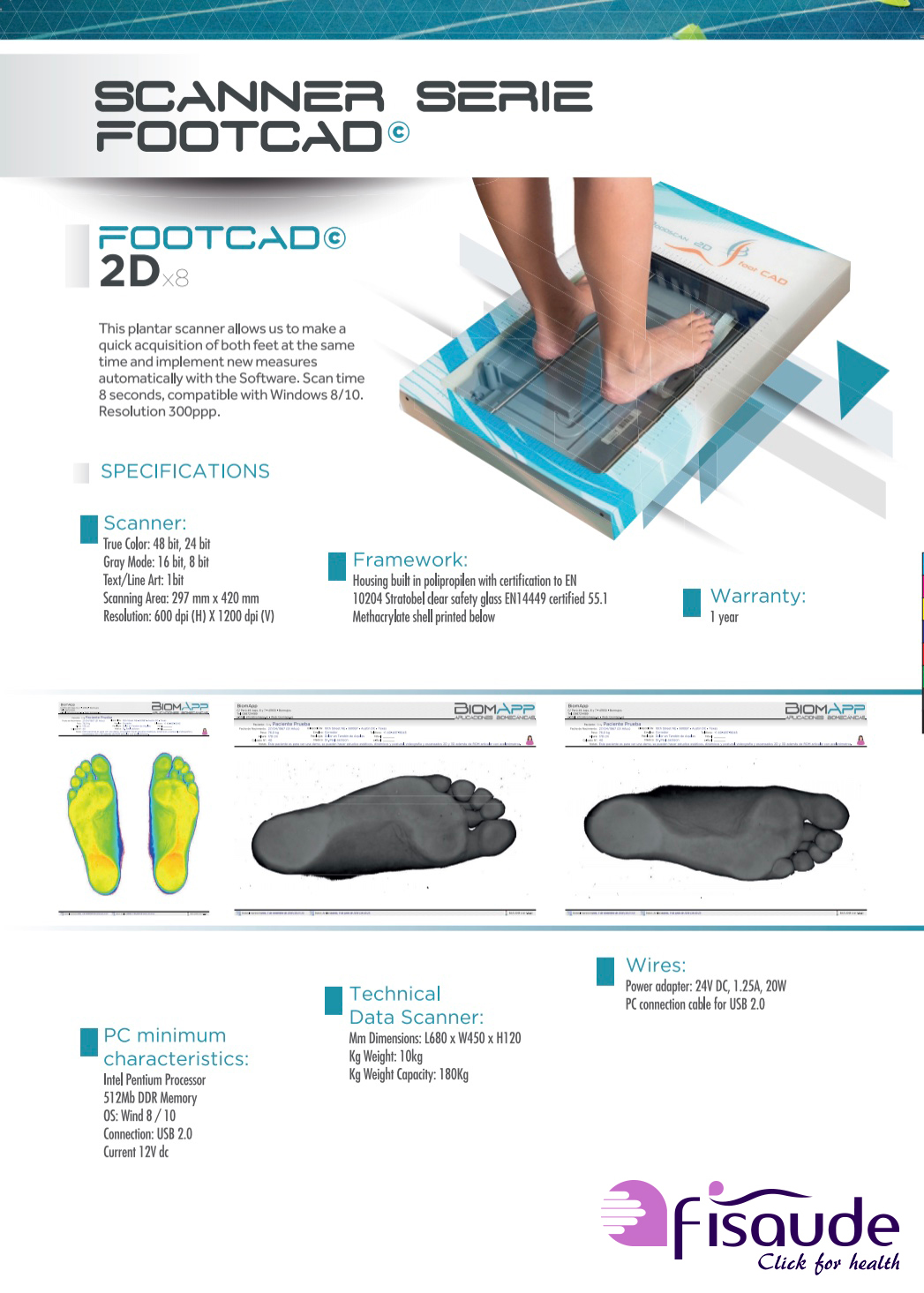

Scanner technical data:

- Dimensions of Mm: L680 x W450 x H120
- Weight Kg: 10kg
- Weight capacity Kg: 180 Kg

Scanner:

- True color: 48 bit, 24 bit
- Gray mode: 16 bits, 8 bits
- Text / Line art: 1bit
- Scan area: 297 mm x 420 mm
- Resolution: 600 dpi (H) X 1200 dpi (V)

Minimum PC features:

- Intel Pentium processor
- DDR memory of 512 MB
- OS: Wind 8/10
- Connection: USB 2.0
- Current 12V dc

Warranty:

The device has a one year warranty.
