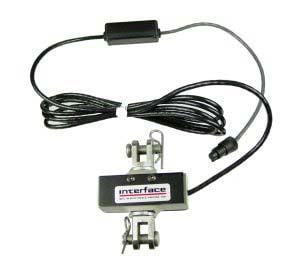

Force Sensor In-line force sensor

The force sensor online is a precision load cell that allows measurement of both tension and compression. The sensor has plug-in functionality with MyoSystem 1400A / L, the TeleMyo 2400 system and the new system of hand MyoTrace 400. The force sensor can be used online in any of the EMG channels. The integrated amplifier ensures a flexible and easy to use. / Measuring ranges:

0-100 lb-F (0-444 N)

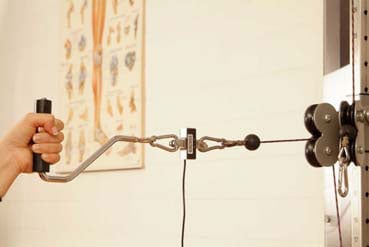

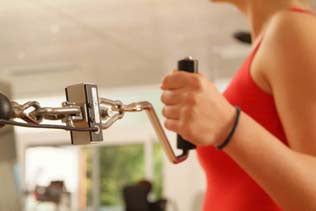

The sensor can be used with any commercial training machine cable. A special adapter to connect the sensor to the weight stack belts of exercise machines without cutting the tape. The same sensor works on multiple machines. This arrangement allows you to create numerous test positions to test static force in a functional way. Such test configurations can be used to document improvements therapy and training.

INPUT FORCE RANGE
+ / - 500 pound-C (+ / - 2224 N)
Sensor Sensitivity £ 500
10mV / lb-F (2.27 mV / N)
Sensor Sensitivity £ 100
50mV / lb-F (11,35 mV / N)
Cable length ONLINE
5 '
