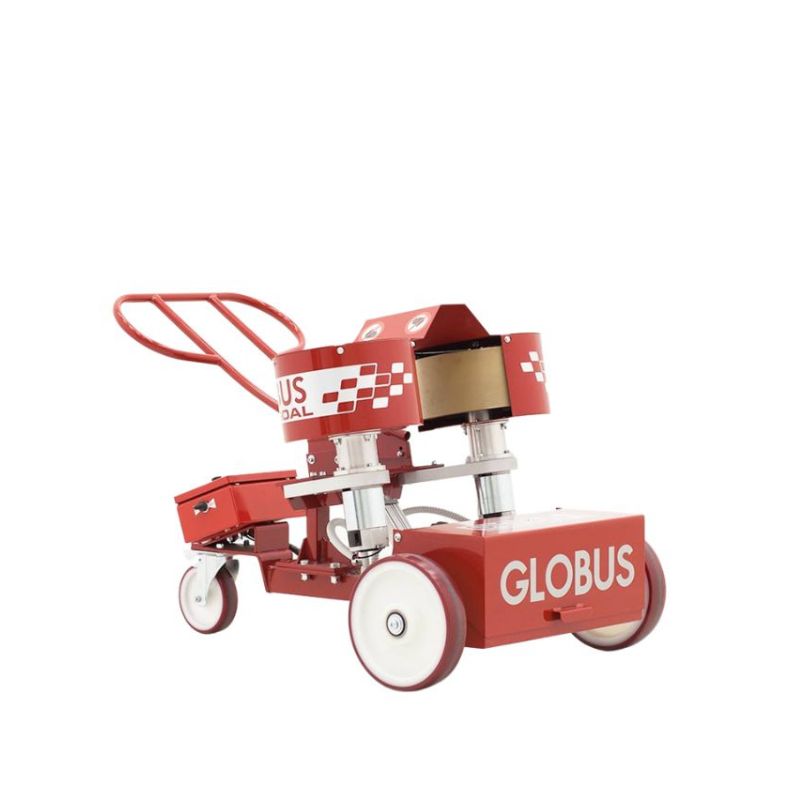

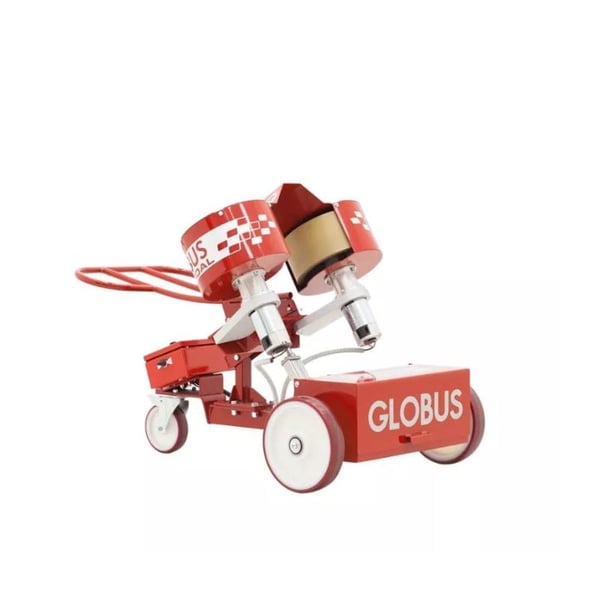

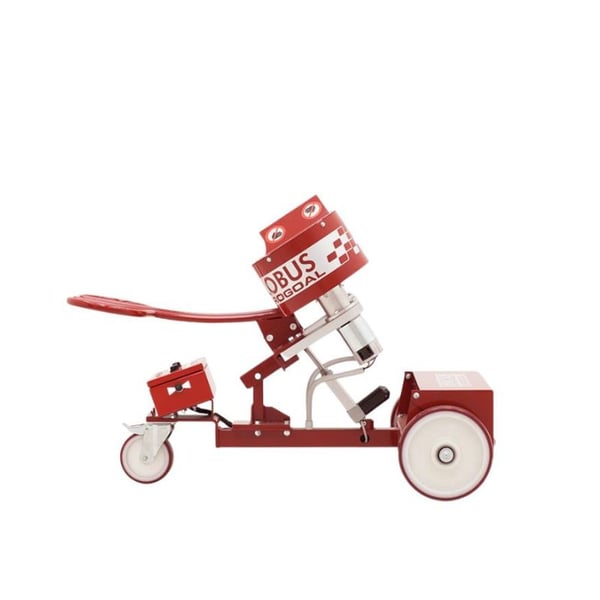

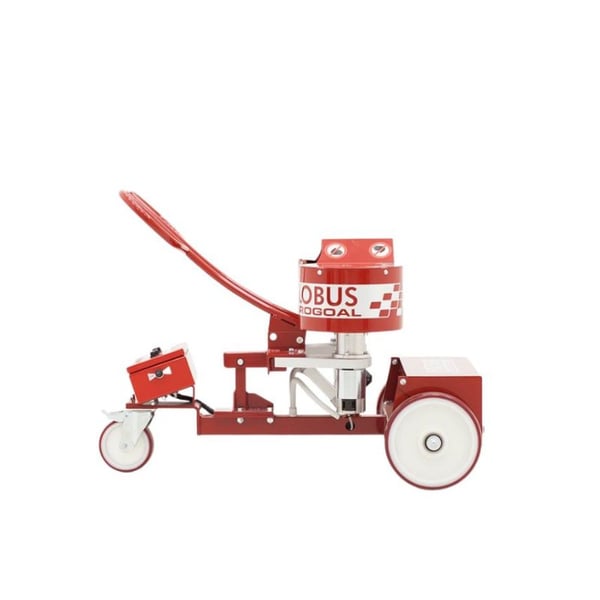

Globus Eurogoal 600: Soccer ball launching machine for training at the highest level

Eurogoal 600 is a professional ball throwing machine for training soccer players . He kicks like a real player, with cross kicks, free kicks and penalties, he can reach a speed of 110 km/h.

Thanks to a special system, the coach can set the ball's trajectory vertically, power, spin and/or cross-court shots. With some simple operations, it is possible to aim the shot at the first or second post and by adjusting the speed of the shot, it is possible to perform goal kicks or cross kicks with various types of trajectories (Magnum effect).

Eurogoal 600 is the ideal partner for goalkeepers and soccer players to carry out a large number of training sessions. In fact, it not only trains individual technique with the greatest precision, but also lends itself to being used in global game situations, such as crosses into the area and corner kicks.

Shots at ground level at different heights: they are performed by changing the vertical inclination of the machine and turning the crank. By combining the draft lift parameter with the speeds of each wheel, it is possible to obtain many trajectory effects.

Strengths:

Defensive and offensive training.

Attack/defense corner kicks.

Crossed shots in attack/defense from outside the area.

Drills for direct attack/defense fouls.

Aerial balls to train attackers (volleys, overhead kicks, etc.)

Counterattack drills.

Specific exercises to train headers.

Specific exercises to train the control and reception of aerial passes.

Goalkeeper training

Memorize the shot on a target.

Memorize throws to the first or second post.

Low throws.

Penalty shots.

Stop the ball on mid-level or elevated shots.

Clear the ball on cross kicks and corner kicks.

Anticipate the forwards when exiting the goal.

Quick reaction to powerful pitches.

Quick reaction to short range shots.

Straight and cross pitches with full spin

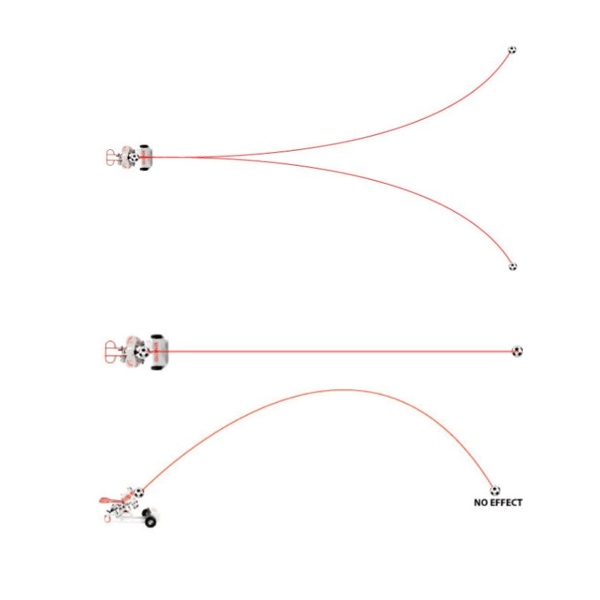

Floating effect (dry launch) : it can be obtained by adjusting the two wheels at the same speed, in this way, the ball has no rotation and the trajectory becomes floating and unpredictable.

Curved effect : a curved launch is obtained by keeping the two shooting wheels at the same level, and adjusting them to different speeds. The ball will rotate around its vertical axis and have a curved path.

By combining the shooting speed and the wheel rotation speed, you can achieve the shooting effects that a coach needs to train goalkeepers, defenders and attackers.

Shooting settings:

Raise and lower the shot.

The articulation between arm, wheels and machine allows the vertical inclination to be varied to perform blows at different heights (for example, at mid-height or at the intersection of the posts).
To lower the shot, press the button with the arrow pointing down. To raise the shot, press the button with the arrow pointing up.

Displacement of the shot to the right or left of the target.
Once the incline is established, the shot can be directed laterally by holding the handlebars and turning the machine to the right or left.

Speed adjustment of the 2 wheels.
The rotation speed of the 2 wheels can be adjusted independently with two buttons (potentiometers) placed on the control console.
The right knob adjusts the right wheel, while the left knob adjusts the left wheel.
If the speed is the same for both wheels, the ball will have a straight path, while if the wheels have different speeds, the ball will come out with a curved path.

Characteristics:

Does not damage the ball (patented by Globus).

Long autonomy thanks to its double battery (110-220 V).

Powerful pitches and great side and downspin.

Launch speed from 10 to 110 km/h.

Extremely accurate and independent speed regulation.

Compatible with different ball sizes.

Easy to move in the field.

Guides ensure accurate repeats of the same shot.

Recommended for youth categories and soccer schools.

Goalkeeper training :

Parade of shots at goal.

Sequence of sockets with return effect or output on first and second pole.

Sequence of shots over the barrier.

Penalties.

Ball control on flat shots.

Ball grip control on aerial shots.

Kicks/Cross and corner kicks.

Leaving the goal to anticipate the attackers.

Reaction time on powerful shots.

Defense training:

Attack/defense on corner kicks.

Attack/defense from outside the area.

Araque/defense on inactive balls.

Shoot at goal with the ball in flight.

Against the ball.

Head hit.

Technical characteristics:

Firing speed – Up to 110km/h.

Shooting distance – 60 meters.

Cast wheels – High grip anti-wear rubber.

Triaxial system – NO.

Maximum shooting height – 25 meters.

Lateral head rotation – NO.

Vertical elevation – -5° / +40°.

Electric motor for vertical lifting – YES.

Lateral head tilt – NO.

Side firing range lock – FIXED.

Electronic control unit – YES.

Independent regulation of the speed of both wheels – YES.

Electronic control unit with 5 trigger memories – NO.

Ball speed regulation – Manual and micrometric.

Adjustment of the curvature of the trajectory to the right and to the left – Manual and independent adjustment of the two wheels.

Wheel speed recovery time in sequential shots – 3 sec.

Battery life – 5 hours.

Motorized vertical tilt – YES.

Fast and slow battery charging – YES.

FLOAT effect – Yes.

MAGNUS Effect – Yes.

TOP SPIN effect – No.

BACK SPIN effect – No.
