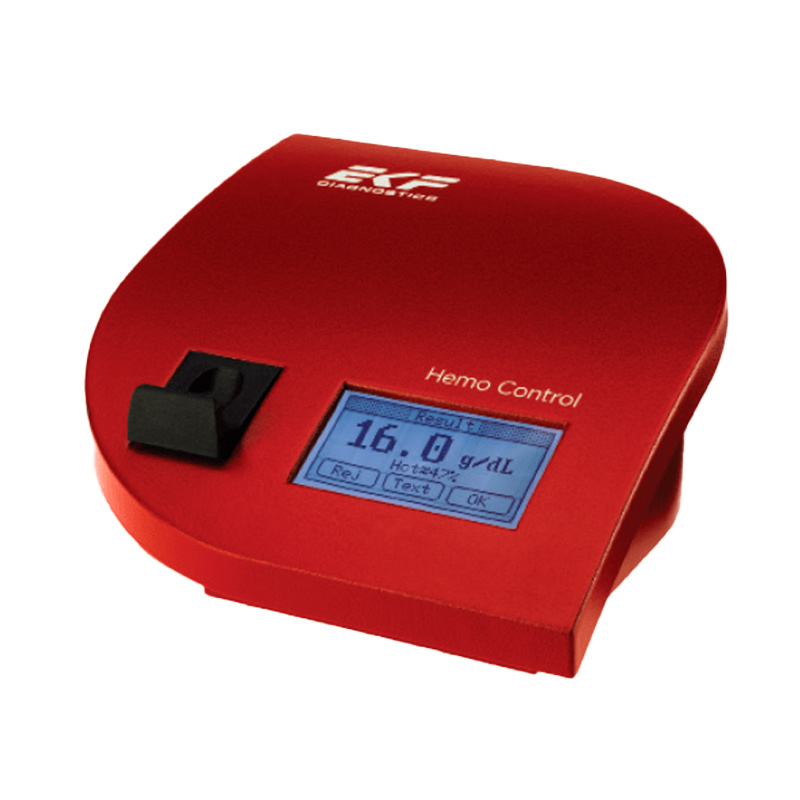

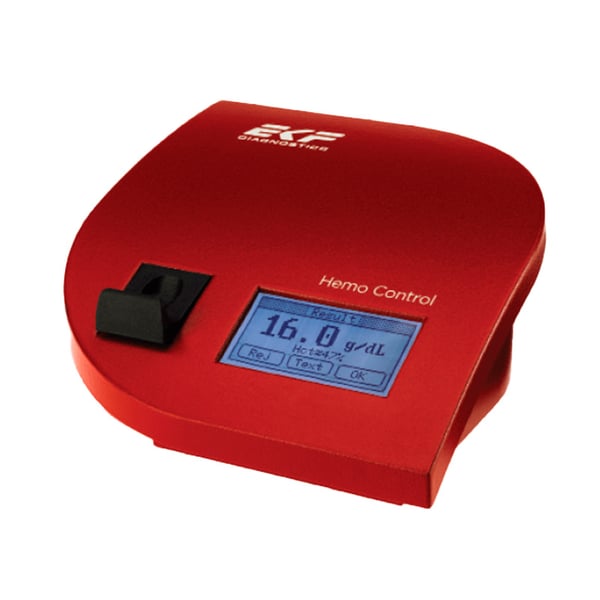

Hemo Control Analyzer: Fast and Accurate Hemoglobin and Hematocrit

Hemo Control portable analyzer. Results in 30 seconds, no calibration, no maintenance . Measures hemoglobin and estimates hematocrit with only 8 µL of blood. Ideal for clinics and mobile campaigns.

Strengths:

- Fast and accurate results: Obtain hemoglobin measurements and hematocrit estimates in as little as 25 to 60 seconds, with a minimum 8 µL blood sample.

- Easy to use: Intuitive interface with illuminated touch screen that guides the user step by step through the analysis.

- No calibration required: The device is factory calibrated and maintenance-free, allowing for simple and hassle-free use.

- Large storage capacity: internal memory allows for storing up to 4,000 results, facilitating data tracking and analysis.

- Sample versatility: compatible with capillary, venous, or arterial blood, adapting to various clinical needs.

Technical characteristics:

- Measurement method: acid methemoglobin photometry.

- Measuring range: 0 – 25.6 g/dL (0 – 15.9 mmol/L).

- Precision: coefficient of variation (CV) less than 2%.

- Linearity: ±0.3 g/dL over the range of 0–20 g/dL; ±0.7 g/dL at higher concentrations.

- Sample volume: 8 µL.

- Operating temperature: 15°C to 40°C.

- Display: Illuminated touchscreen for intuitive operation.

- Memory: capacity to store up to 4,000 results.

- Connectivity: USB port for data transfer and compatibility with LIS/HIS systems.

- Power supply: built-in rechargeable battery with up to 100 hours of battery life.

- Dimensions: 160 x 160 x 68 mm.

- Weight: 700 g.

- Certifications: Complies with CE regulations for medical devices.
