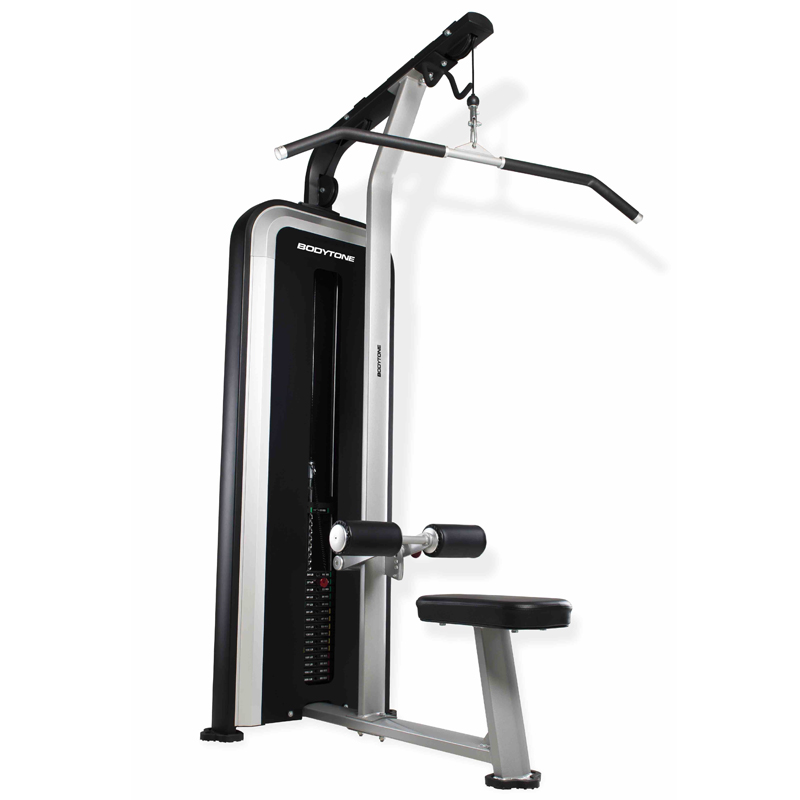

High Tone - High Lat Pulldown Evolution Series Body Tone: 95 kg load on plates

High Evolution Series Body Tone Pulley for the effective and total work of all the muscles of the back

Bodytone's line of professional bodybuilding machines is the newest and most complete range of plate machines , made in 4 mm steel tube structure. thick, high strength.

The latest technologies have been used in special 3-layer paint treatment , guaranteeing greater durability and resistance .

Manufactured with solid steel parts and guides and hardened double layer chrome.

Transmission by cable of 6 mm steel. coated in PVC of 900 kg of Looser resistance . Multiposition travel limiters with angle and numbering indicator.

Differentiated levels of strength with colors . Nylon pulleys with internal bearing, highly silent . Includes information panel of each exercise , with muscles involved. Highly translucent full bodywork according to CE regulations. Two- sided storage tray for the user.

Technical characteristics

- Total weight : 218 kg.

- Weight of plates: 95 kg (option 125 kg)

- Adjustments : Seat height.

- Transmission : 6 mm thick steel cable coated with PVC with a resistance up to 900 kg.

- Guides : Carbon steel calibration and hardened double chrome treatment for better sliding of weight plates.

- Structure : Steel tube of 3 mm of high resistance, cut with laser for more precision, and welded by robotized process.

- Quilting : A high density, perspiration resistant, antiallergenic and anti-bacterial skin simulation with double padding on models with a more intense surface area.

- Painting process : Steel pickled and stabilized by total immersion of the pieces in different degreasing solutions to guarantee a perfect and complete cleaning of the base material. Antioxidant primer to ensure adequate insulation of the internal oxidation and good adhesion of the paint. 2 layers of epoxy polyester powder paint, dried at 240ºC.

- Design process : Previous study of biomechanics and ergonomics under the supervision of professionals and associated athletes. After a long period of design, from sketching, engineering research, prototype production, testing by professional athletes, for a year, our products enter the market.

Support levers : Balanced, allow to eliminate excess weight at the beginning of the exercise.

Covers and covers : ABS 3.5 mm thick, translucent and high strength. Protections on both sides, according to EU regulations, to avoid any possible damage caused by contact with the weight plates.

Grips : Anti-allergenic and anti-slip neoprene with aluminum finish.

Supports and supports : EVA of high density of 5.8 mm of thickness with a manual mechanism by means of a bolt. Laser numbered numbered positions.

Platforms : Made of non-slip material.

Weight selector : Magnetic with ergonomic rotor and secure wiring.

Counterweights : Designed to fit optimal biomechanics.

Limiter of race : Different positions with indicator of the angle and numbering.

Moving parts : ST52 steel bevelled, calibrated and machined.

Numbering of the weight of the plates: Numbered and with 3 different colors depending on the level.

Pulleys: Nylon with an internal bearing and quiet operation.

Dimensions

- Length: 125 cm.

- Width: 124 cm.

- Height: 229 cm.
