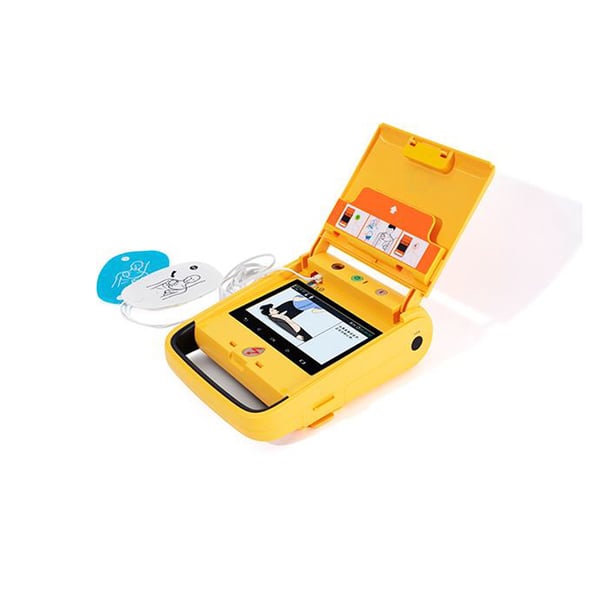

i5 Semi-Automatic Defibrillator with 7” Screen: 200J AED with Real-Time ECG

The i5 Semi-Automatic Defibrillator with a 7” screen is an advanced solution for immediate response to cardiac arrest, designed to offer maximum effectiveness, control, and ease of use in any environment. This AED combines state-of-the-art technology with an enhanced visual interface, enabling safer intervention for both healthcare professionals and inexperienced users.

One of its main advantages is its 7-inch HD color LCD screen , which provides clear, real-time information throughout the procedure. Through this screen, the user can view operating instructions, the patient's electrocardiogram (ECG) , and the number of shocks delivered, significantly improving situational awareness and decision-making.

The i5 defibrillator delivers state-of-the-art biphasic shocks , automatically adjusted to the patient's impedance to maximize treatment effectiveness. With up to 200J of power in adult mode , it ensures an appropriate response in critical situations, while pediatric mode allows for safe use in children with the simple selection of a button.

This model includes universal electrodes , suitable for both adults and pediatric patients, simplifying use and reducing treatment time. Furthermore, its semi-automatic system guides the user with visual cues and voice prompts in several languages , facilitating a quick, clear, and safe intervention.

In terms of maintenance, the i5 is designed for complete peace of mind. It incorporates a daily, weekly, and monthly automatic self-diagnostic system that monitors the device's status to ensure it's always operational. Its long-lasting battery , capable of up to 200 discharges or more than 4 hours of operation, reduces the need for frequent replacements and optimizes costs.

Strengths:

- 7” HD screen with real-time information

- ECG visualization during the intervention

- High-power discharge up to 200J

- Universal adult/pediatric electrodes

- Easy to use with voice and visual guides

- Configurable trilingual system

- Automatic self-diagnosis

- WiFi connectivity and 4G monitoring option

Technical specifications:

- Impedance-adjusted truncated exponential biphasic wave

- Energy: 200J (adults) / 50J (pediatric)

- 7” HD LCD screen (800 x 480 px)

- Analysis time: < 8 seconds

- Internal memory: >16GB

- Analysis accuracy: 99.56%

- Lithium battery: up to 200 discharges or >4 hours

- Protection: IP55

- Weight: 1.89 kg

- Connectivity: WiFi + 4G option

Base staffing:

- Adult and pediatric electrodes

- Battery

Warranty:

- 5-year warranty
