Kinefis Deluxe 24 Liter Class B Autoclave + Free Water Distiller: with internal printer, double safety lock, USB and LCD display

Kinefis Deluxe 24 Liter Autoclave + Free Water Distiller

The Kinefis Deluxe 24-liter Class B autoclave stands out for its fully automatic operation. This autoclave features the latest technologies available on the market: an internal printer, double safety lock, USB port, water quality detector, seven sterilization programs ... all within a stylish, functional, and modern design.

This 24-liter version complies with CE Directive 1023 and ISO 13485 for small steam sterilizers. It also features a separate steam generator and numerous safety features. If the unit overheats and exceeds the recommended pressure, the autoclave will automatically shut down for safety reasons. Regarding safety, it's worth noting that the autoclave has a separate wastewater tank to collect dirty water and ensure that the internal pipes remain clean.

At Fisaude, we want your autoclave to always function optimally. Therefore, the purchase of this device includes a water distiller completely free of charge. Using double-distilled water is essential for the maintenance of your autoclave, as using other types of liquids can cause problems with the equipment. Fisaude wants to prevent this.

Strengths:

- The Kinefis Deluxe 24-liter class B autoclave stands out for its fully automatic operation.

- It works by means of a pre-vacuum system and an independent steam generator separate from the chamber.

- Supports sterilization of materials: solids, porous materials, prions, hollow materials, unbagged and single-bagged materials .

- It has an internal printer to obtain records of sterilization cycles.

- And also save them through your USB port .

- Its door has a double safety lock , thus preventing any vacuum or steam leaks,

- Thanks to its water quality sensor, it prevents possible damage to its mechanisms.

- It has 7 sterilization programs and 1 customizable program, plus other cleaning programs, B&D, Helix, Vacuum.

- Its design is stylish, functional and cutting-edge.

- Complies with CE Directive 1023, ISO 13485 relating to small steam sterilizers.

- And countless safety options. If the unit overheats and exceeds the recommended pressure, the autoclave will automatically stop working for safety reasons.

- The autoclave has a separate wastewater tank to collect dirty water and ensure that the internal pipes are always kept spotless.

- All adjustments and instructions are made from your LCD screen

Who is it aimed at?:

The device is designed for healthcare purposes, but its applications are much broader. The Kinefis Deluxe 24-liter Class B autoclave is very useful in general medical practices, dentistry, veterinary medicine, podiatry , as well as in personal hygiene and beauty salons. It is also used for cleaning materials and equipment that may come into contact with blood or bodily fluids, making it ideal for estheticians , tattoo artists, and hairdressers.

Technical specifications:

- Category: Class B.

- Capacity: 24L.

- Screen: LCD.

- Printer.

- USB port.

- Front loading.

- Fully automatic.

- Steam generator independent of the sterilization tank.

- Accepts solid, porous and hollow objects.

- Product size: 67 cm x 50 cm x 42.5 cm

- Camera diameter: 25 cm

- Camera depth: 42 cm

- Programming for: Bowie & Dick Test (B&D)

- Sterilization cycle counter.

- Automatic adjustment of local atmospheric pressure.

- Separate clean water tank and dirty water tank.

Who is it aimed at?:

The device is designed for healthcare purposes, but its applications are much broader. The Kinefis Deluxe 24-liter Class B autoclave is very useful in general medical practices, dentistry, veterinary medicine, podiatry , as well as in personal hygiene and beauty salons. It is also used for cleaning materials and equipment that may come into contact with blood or bodily fluids, making it ideal for estheticians , tattoo artists, and hairdressers.

Sterilization parameters and programs:

Autoclave working conditions:

- Ambient temperature: 5 ℃ ~ 40 ℃

- Relative Humidity: ≤80%

- Atmospheric pressure: > 70 kPa;

- Voltage: 230VAC, 50Hz, 2500VA

- Maximum working pressure: 0.21 ~ 0.23MPa

- Maximum operating temperature: 134 ~ 137 ℃

- Autoclave lifespan: 5 years

Transportation and storage requirements:

- Ambient temperature range: 5 ~ 40 ℃

- Relative humidity: ≤80%

- No corrosive gases

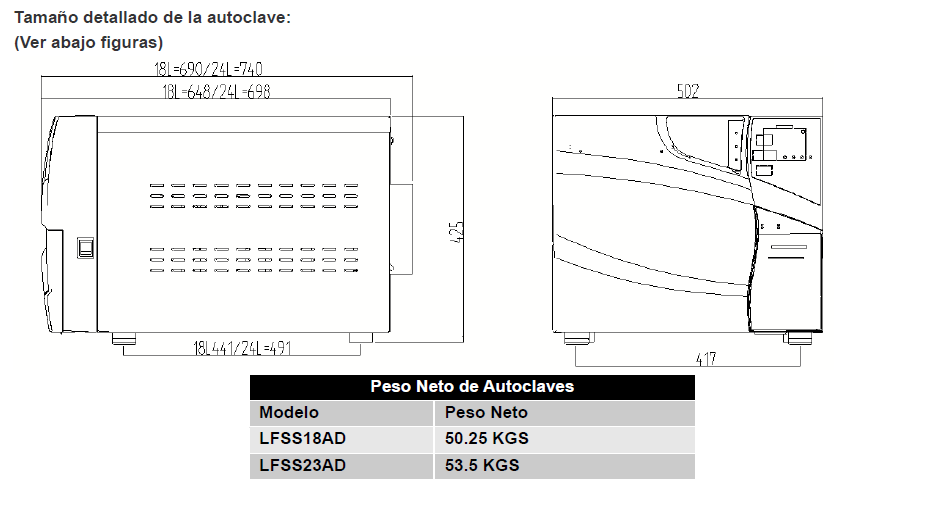

Detailed dimensions of the autoclave:

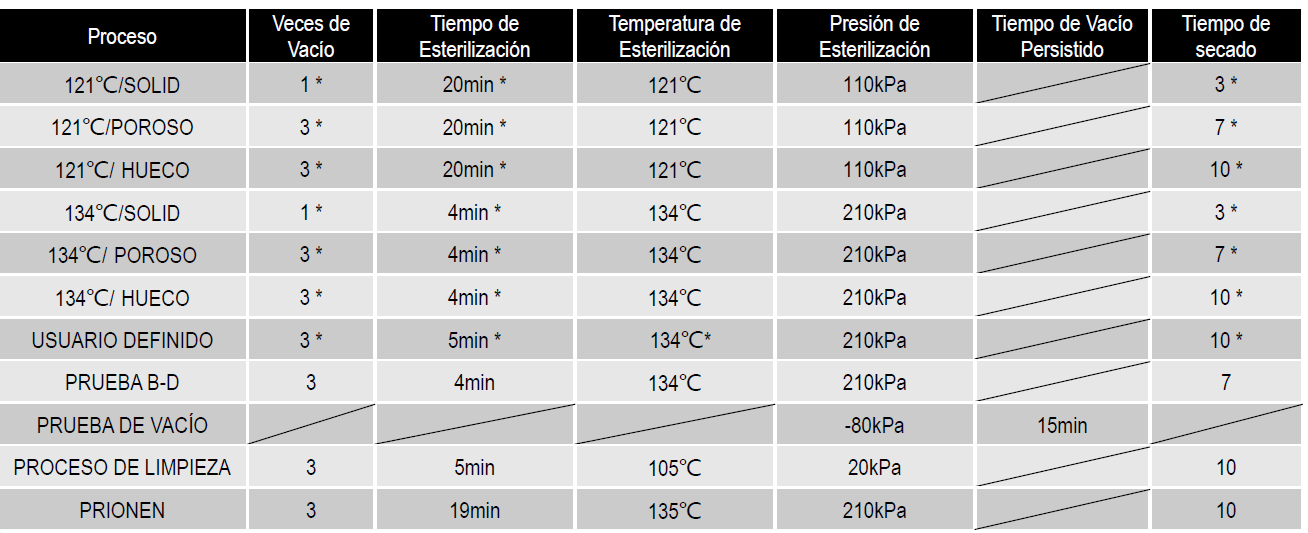

Sterilization programs:

Safety measures:

- Double safety lock.

- Temperature sensor.

- Pressure sensor.

- Clean and dirty water tank level sensor.

- Pressure valve.

- Germ filter.

Maintenance:

0- Vacuum program every day.

1- Adjust door pressure and perform a vacuum test each time a leak alarm is indicated.

2 - Clean the door sealing ring regularly with distilled water.

3 - Replace sealing ring if the leak is not corrected by adjusting the door tightness or cleaning with distilled water.

4- Replace printer paper.

5- Weekly cleaning program.

6- Clean the tank with ethyl alcohol every month.

7- Replace the germ filter every 150 cycles.

8 - Replace safety fuse. (at the discretion of a technician)

9 - Replace the safety valve (at the discretion of a technician)

Technical data:

- CE 1023, ISO 13485 certification

- Standard BS EN 13060: 2004 + A2: 2010

- Frequency: 50Hz

- 3-hole plug

- Voltage: 1950 VA

- Sterilization temperature: 105 - 134 ℃

- Maximum working pressure: 0.21-0.23MPA

- Camera material: Stainless steel

- Screen: LCD

- Product size: 65 cm x 50 cm x 43 cm

- Screen size: 6 x 4.25 cm

- Available languages: Spanish and English

- Door closing system: mechanical

- User password: yes

Base staffing:

- Kinefis Deluxe 24 Liter Class B Autoclave

- Water distiller

- 1 autoclave power cable

- 1 power cable for distiller

- 1 pipe + connection for draining water

- 3 trays

- 1 tray support

- 1 handle to hold trays and prevent burns

- 1 instruction manual
