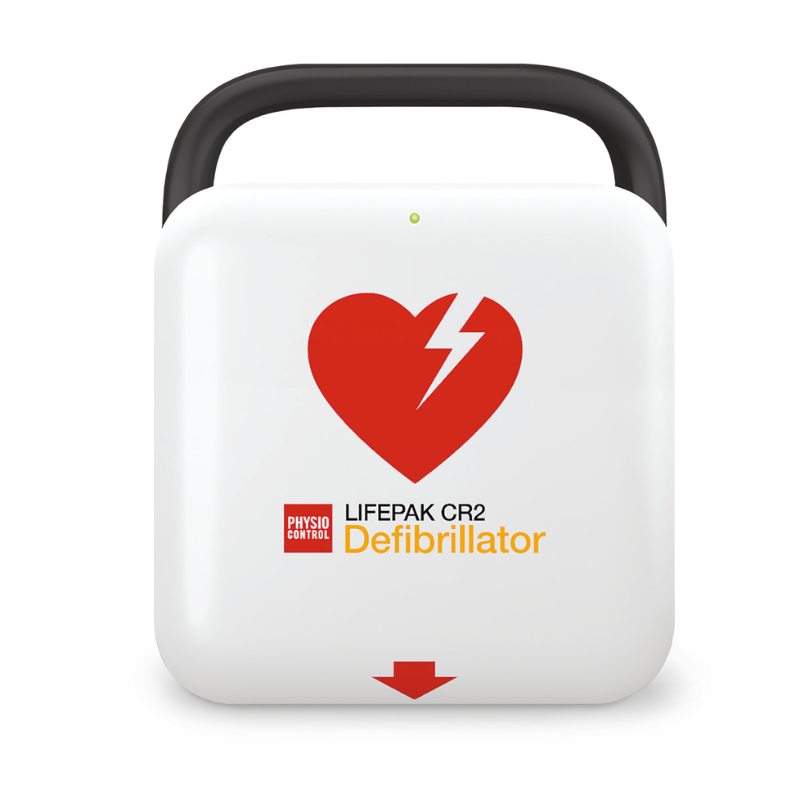

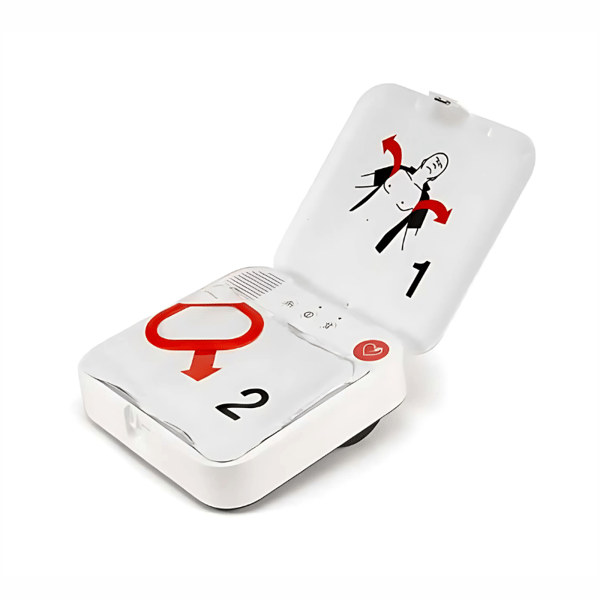

LIFEPAK® CR2 USB semi-automatic and automatic defibrillator with advanced technology for immediate response

Designed to maximize effectiveness and minimize stress in critical situations, the LIFEPAK® CR2 USB guides the user step by step, even without prior experience. It incorporates leading technologies to ensure speed, accuracy, and safety in defibrillation.

Main features

Ease of use: Simple interface with clear graphics and voice instructions.

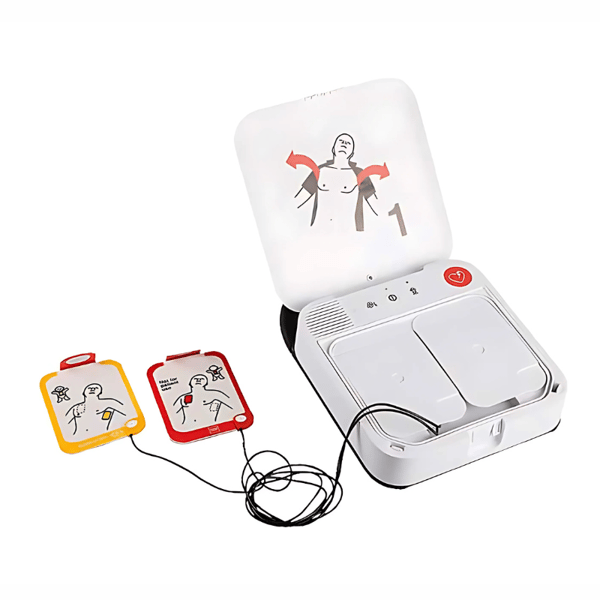

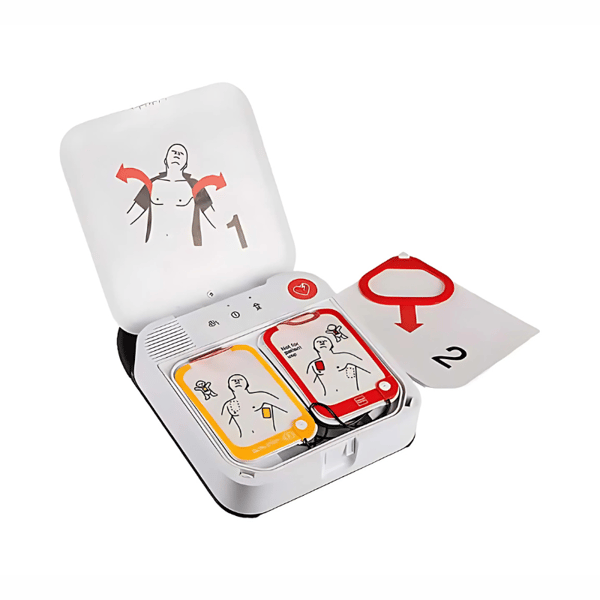

QUIK-STEP™ Electrodes: Apply directly to the electrode pad without removing it from a base.

Pediatric mode without changing electrodes: energy automatically adjusted for children.

CPR Guide with Metronome: Rhythm and Audible Cues for Effective Resuscitation.

ClearVoice™ Technology: Detects and adjusts volume based on ambient noise.

Scalable energy up to 360 J: maximum efficiency even in difficult cases.

LIFEPAK TOUGH™ model: IP55 rated, ideal for demanding environments.

8-year warranty.

Technical specifications:

Waveform: biphasic truncated exponential.

Output energy (adult): 200 J, 300 J, 360 J.

Pediatric energy: 50 J, 75 J, 90 J.

ECG analysis: Shock Advisory System™.

Charging time: 0 s for first discharge (pre-charged).

Time to shock after CPR: <17 s (semi-automatic mode).

Visual and audible status indicators.

Operating conditions:

Use temperature: 0 to 50 °C.

Storage: -30 to 60°C (limited exposure), ideal 15–35°C.

Altitude: up to 4,572 m.

Resistance: IPX5 (water) and IP5X (dust). Vibration and drop-proof (MIL-STD-810G).

Dimensions and weight:

Height: 9.7 cm

Width: 22.6 cm

Depth: 27.4 cm

Weight: 2 kg (with battery and electrodes)

Battery and storage

Type: Lithium-manganese dioxide, 12 V, 4.7 Ah

Autonomy: up to 166 discharges (200 J) or 800 minutes

Shelf life: 4 years at rest

Internal memory: 60-minute ECG per episode

Connectivity: USB

Accessories

Combined electrodes for adults and pediatrics (intuitive use).

Recommended replacement every 4 years.
