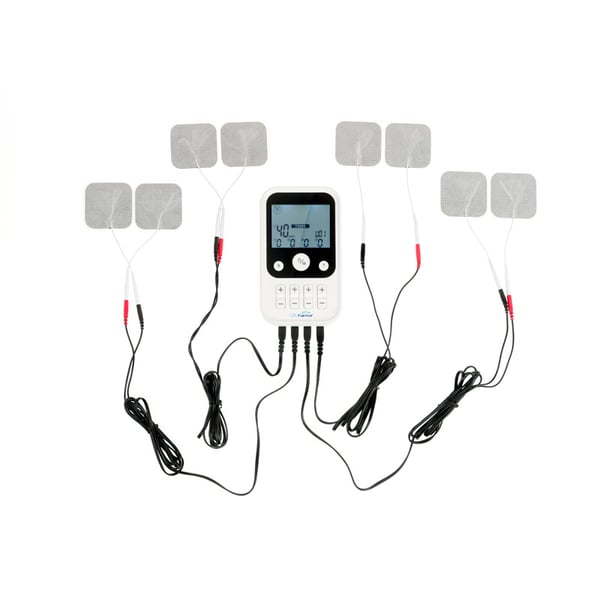

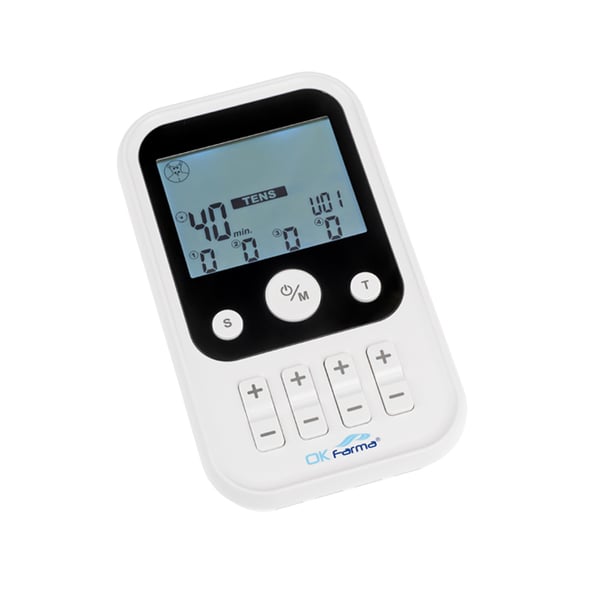

New Pocket Fit 4 electrostimulator: complete handheld electrostimulator for all applications with 50 programs and 4 independent channels

New Pocket Fit 4 is the new complete handheld electrostimulator for all applications. Thanks to its manageability and ease of use, it can be used in any situation for muscle stimulation and therapy. It has 50 programs for all types of TENS and EMS applications, and is equipped with four independent channels to stimulate different areas of the body at the same time or several people in the same session in a different way.

New Pocket Fit 4 is a four-channel electrostimulator with a rechargeable battery power supply (included in the package).

Technical characteristics:

- Model type: Pocket Fit 4 / R-C101C

- Power source: 3.7 V lithium-ion battery

- Power supply
Input: 100-240 V AC, 50/60 Hz, 0.2 A
Output: 5 VDC, 300 mA

- Output channel: four channels

- Waveform: Two-phase square wave pulse

- Output current: Maximum 120 mA (at 500 ohm load)

- Output intensity: 0 to 40 levels, adjustable

- Mode of operation: TENS and EMS modes

- Programs: 50 programs

• TENS: 18 preconfigured + 12 free
• EMS: 11 presets + 9 free

- Pulsation: 2 Hz - 120 Hz

- Pulse width: 50 us - 400 us

- Treatment time: 5 minutes - 90 minutes

- Condition of use: 5ºC to 40ºC with 15% - 93% relative humidity, 700 hPa to 1060 hPa atmospheric pressure

- Storage conditions: -10ºC to 55ºC with a relative humidity of 10% -95%, atmospheric pressure of 700 hPa to 1060 hPa

- Dimensions: 144 x 86 x 29.6 mm (length, width, depth)

- Weight: about 160g

- Automatic shutdown: 1 minute

- Classification: Type BF, internal power supply, IP22

- Electrode size: 50 x 50 mm, square

- Output accuracy: An error of +- 20% is allowed for all output parameters

base endowment:

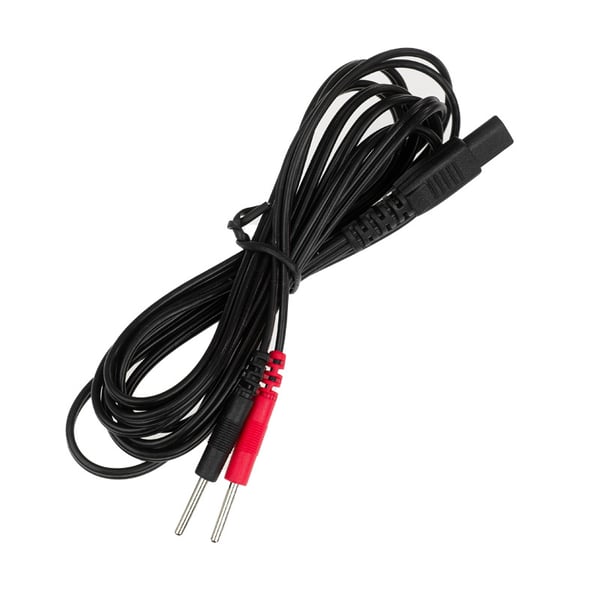

- 4 output cables
- 4 electrodes d = 30 mm per face
- 8 electrodes 50×50 mm
- 4 x 1.5 V AA batteries

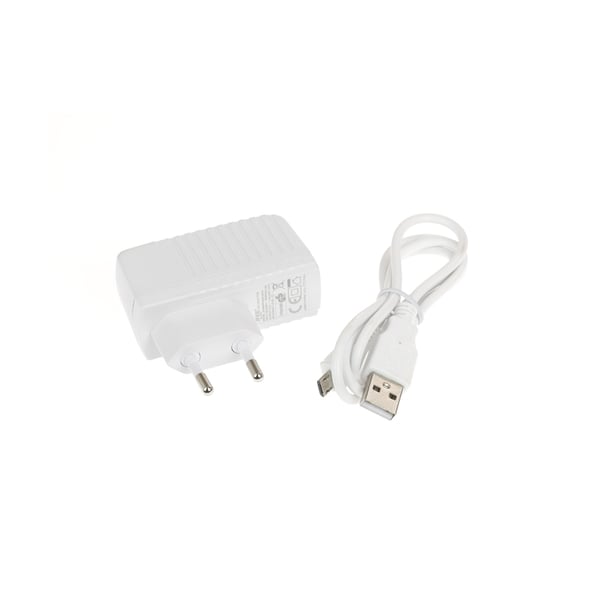

- External power supply
- user manual

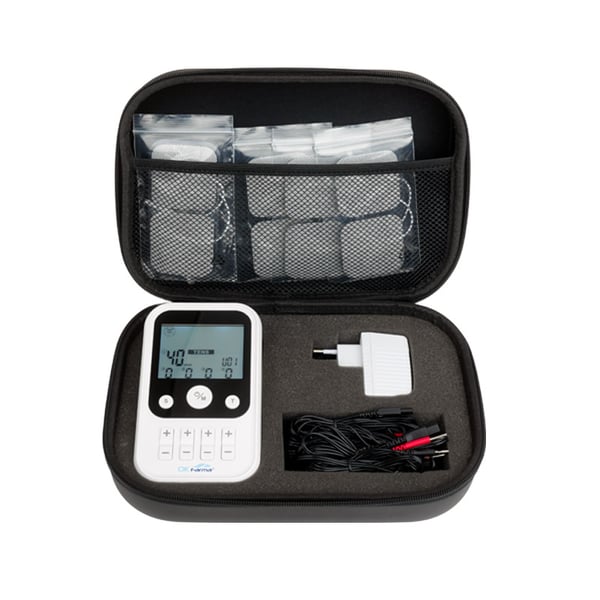

- bag
