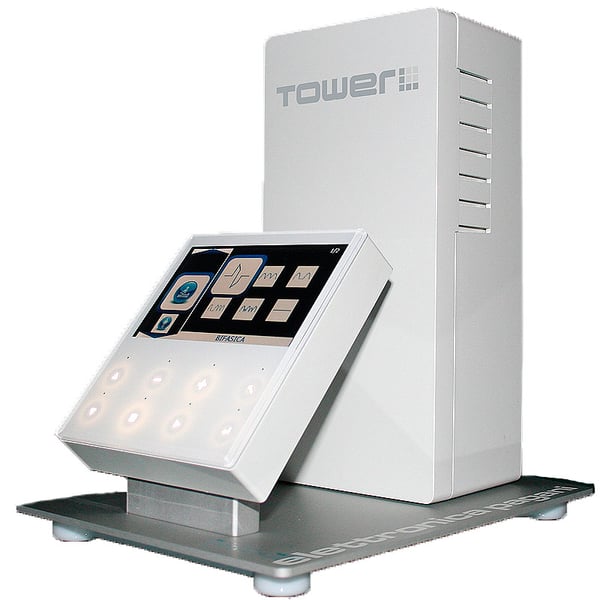

Pagani Tower: Combined electrotherapy + ultrasound + magnetotherapy + laser + diathermy equipment

Pagani Tower allows you to gather all the essential therapies in a single device, with the different optional modules:

- Electrotherapy Module

- Diathermy Module

- Ultrasound Module

- Magnetotherapy module

- "Laser therapy" module

The new Pagani Tower concept consists of the application of all types of electrotherapy in the same equipment , simply by changing the desired module , to apply the necessary therapy. IMPORTANT: you can only work with one module at a time.

With a large full color touch screen , the therapist can choose the therapy and parameters that best suit the patient, indicating the areas to apply the treatment with simple and intuitive images that Pagani Tower offers in its system.

An extensive bibliography is available including pre-set protocols along with various memories to enter custom protocols.

The available modules are:

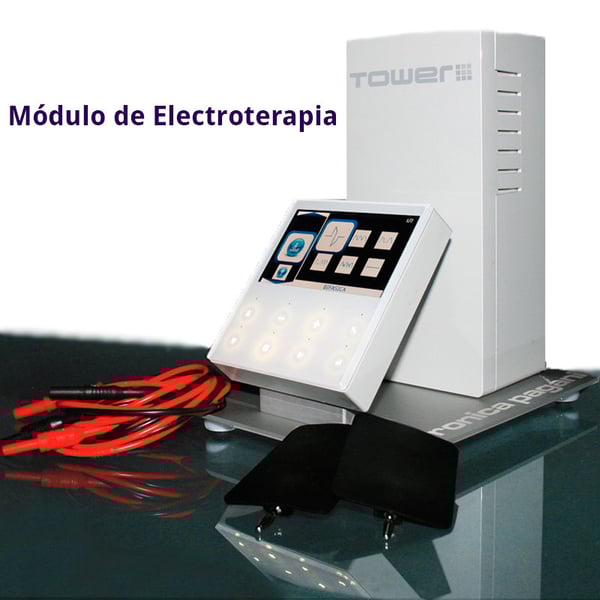

electrotherapy module

Technical characteristics:

- Outputs: 2 or 4 outputs to choose

- Dimensions: cm 23 x 17 x 26

- Type of protection CEI 62-5: 1BF

- EEC Directives 93/42: IIa

- Wave types: Galvanic, diadynamic (50-100 Hz, CP, LP), triangular, biphasic, interferential, bipolar and quadripolar, Kotz (Russian current)

- Maximum current: 76.5mA

- Pre-configured protocols with body images

- Free memories for custom protocols

Standard accessories:

- Connection cables

- Set of silicone electrodes with 60x80 mm sponges

- A pair of elastic bands

- Manual

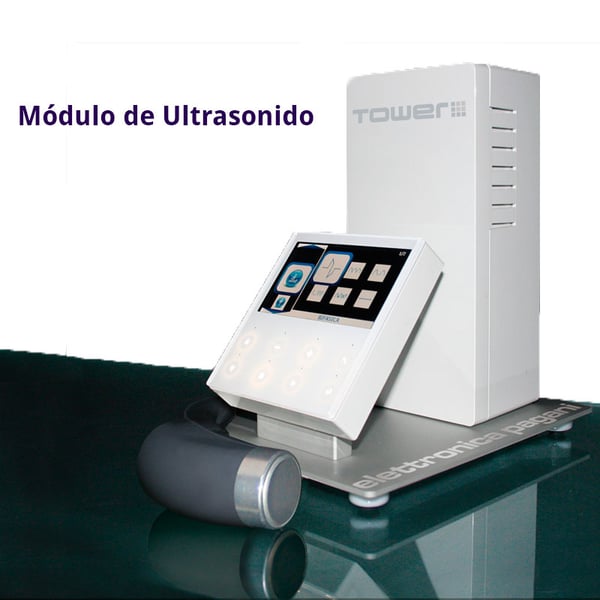

​Ultrasound module:

Technical characteristics:

- Dimensions: cm 23 x 17 x 26

- Type of protection CE 62-5: 1B

- EEC Directives 93/42: IIa

- Multifrequency 1 MHz, 3 MHz and combined 1 + 3 MHz

- Emission modes: continuous and pulsed

- Timer max. 30 min.

- Pre-configured protocols with body images

- Maximum intensity: 3 W/cm2

- Bad fit detector between the patient's skin and the ultrasound head

Standard accessories:

- 5 cm2 multi-frequency head

- Ultrasound gel 250 ml

- Manual

Optional gadgets:

- 8 cm 1 MHz static head with elastic band

- Small 1/3 MHz ultrasound head, 1 cm

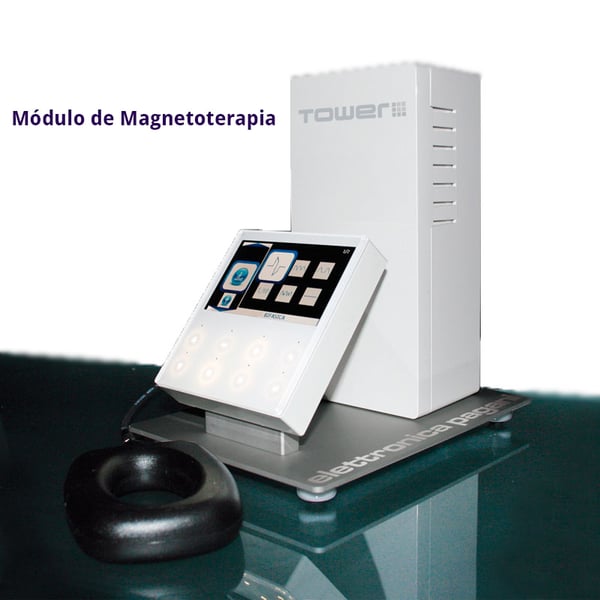

Magnetotherapy module:

Technical characteristics:

- Dimensions: cm 23 x 17 x 26

- Type of protection CE 62-5: 1BF

- EEC Directives 93/42: IIa

- Outputs: 2

- Frequency: from 1 to 200 Hz

- Emission: continuous and pulsed

- Intensity: 100 Gauss (peak); effective in patients max. 50 Gauss

- Pre-configured protocols with body images

- Free memories for custom protocols

Standard accessories:

- Two low-frequency applicators with fixing straps

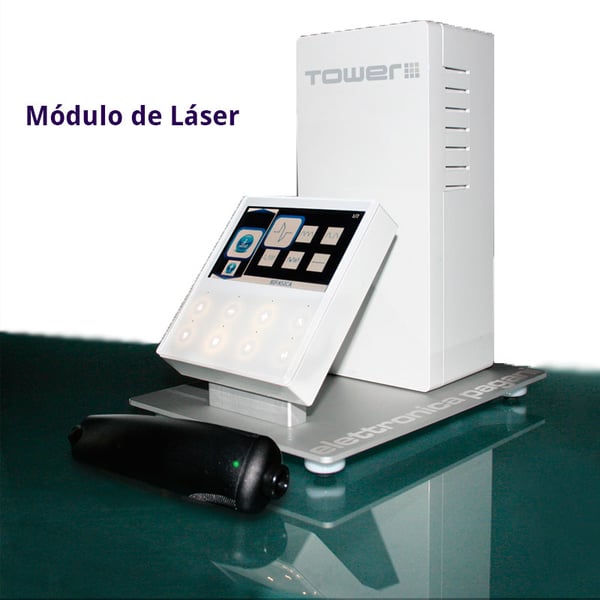

Laser therapy module:

Technical characteristics:

- Dimensions: cm 23 x 17 x 26

- Type of protection CEI 62-5: 1BF

- EEC Directives 93/42: IIb

- Power 500mW

- Laser source: IR 808nm

- Emission mode: continuous interrupted (pulsed)

- Modulation: up to 300 Hz

- Pre-configured protocols with body images

- Free memory for custom protocols

- Applicator diameter: 10 mm

- Safety glasses

Diathermy Module:

- Dimensions: cm 23 x 17 x 26

- Type of protection CEI 62-5: 1BF

- EEC Directives 93/42: IIb

- 120W power adjustable in both capacitive and resistive

- Frequency: 480 Khz +7- 10%

- Free memory for protocols

- Continuous and pulsed emission

- Interactive handle with 30 and 60mm electrodes

- 1kg tecar cream

IMPORTANT NOTE : FOR THIS EQUIPMENT IT IS NECESSARY TO PURCHASE ''PAGANI TOWER'' AND ADD THE DESIRED MODULES (UP TO 5 OPTIONAL MODULES TO CHOOSE)

IMPORTANT: Pagani Tower only allows you to work with one module at a time.

If you are interested in the Pagani Tower , contact us and we will help you in the configuration that best suits your needs, at the number 91 632 77 40 or at our email tiendafisaude@fisaude.com
