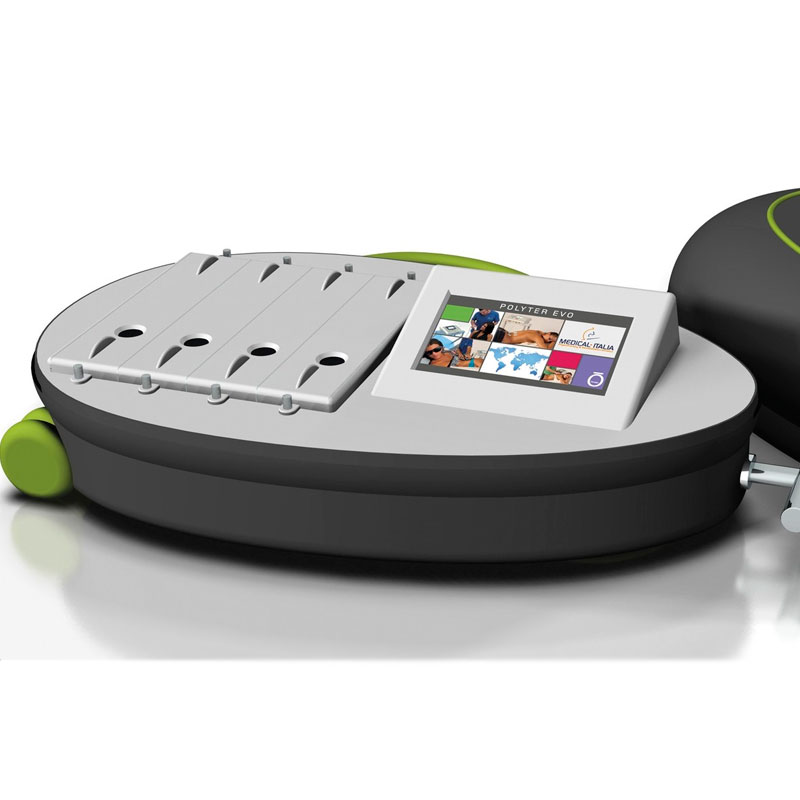

Polyter Evo: Portable device for electrotherapy, ultrasound, laser and magnetotherapy (Module necessary for operation)

Polyter Evo revolutionizes the concept of physiotherapy device because up to 4 therapeutic modules can be inserted in a single machine, at least one necessary, including: Ultrasound, electrotherapy, magnetotherapy, low frequency laser, tecar and high power laser.

The heart of Polyter Evo has been completely redesigned from R&D, reducing the size and weight of the electronics. The simple and intuitive software has been designed using all the features and graphical capabilities of the latest operation. The project led to the creation of a portable device , the new concept of modular expandability.

Today Fisaude.com offers users a versatile device that can be built according to their needs , above all the equipment is "alive", since it is possible to expand Polyter Evo with new modules at any time .

Strengths

One, two, three, up to a maximum of four technologies can be housed inside the new portable container, satisfying the needs of the most demanding users.

PolyterEvo is a device also dedicated to home therapy , thanks to the practical O-Design trolley that can ensure:

- Portability : compact box with a reduced size.

- Robustness : The material used to make the container is ABS.

- Lightness : We have achieved a complete kit with reduced weights thanks to the development of new modular electronic boards, the use of ABS material to make the box, the appropriate choice of a new generation battery.

- Italian Design : The refined O-design of the PolyterEvo with its smooth lines without sharp corners, combines the need for a box with a compact and safe design with the unmistakable elegance of the Made in Italy design.

Technical characteristics

- ABS trolley with accessories compartment

- 7" touch screen color display

- Predefined treatment protocols for each technology

- Customizable Operating Programs in the internal user memory

- Software update

- Rechargeable battery with a range of 4-5 hours

- Dimensions: 61 x 37 x h23 cm

- Weight: depending on the base of modules included

Create your Polyter Evo

The new concept of modular expandability allows you to combine one or more of the following technologies in a single chassis :

Electrotherapy module:

- 2 independent outputs

- 25 waveforms low and medium frequency, Iono, Tens

- Maximum intensity 100mA

- Synchronous function of the two channels

- Operation: Constant voltage, constant current

- Electrode control (electrode test)

- Open circuit alarm

Electrotherapy module pro:

- 2 independent outputs

- 28 Low and medium frequency waveforms, microcurrents, APS, HPVC, NMES

- Maximum intensity 100mA

- Synchronous function of the two channels

- Operation: Constant voltage, constant current

- Electrode control (electrode test)

- Open circuit alarm

Laser therapy module:

- A channel

- Frequency from 200 Hz to 10,000 Hz

- ML1/25 head supplied

- Automatic fluence measurement (joules/cm2)

- Generator with the possibility of piloting head of one or more diodes

- Automatic head recognition

- Real-time contact sensor

-Interlock

- Laser protection glasses

Tecar module:

- Capacitive/resistive mode

- Power up to 200 W

- Work mode: Athermy, Endodiathermy, Diathermy

Ultrasound module:

- A channel

- 1/3 Mhz multifrequency head with integrated contact sensor

- Continuous or pulsed work mode

- Automatic head recognition

Magnetotherapy module:

- A channel

- Power up to 100 Gauss

- Frequency up to 100 Hz

- Continuous or pulsed work mode (Duty Cycle)

Important:

Module selection process:

Choose the desired module in the "Comments" box in the purchase process by writing its name.
