Polyter Evo: Portable Electrotherapy, Ultrasonic, Laser and Magnetotherapy Device (Ref. EL.61-ML)

Description Polyter Evo: Portable Electrotherapy, Ultrasonic, Laser and Magnetotherapy Device (Ref. EL.61-ML)

Polyter Evo revolutionizes the concept of physiotherapy device because in a single machine, up to 4 therapeutic modules can be introduced between:

Ultrasound, Electrotherapy, Magnetotherapy, Low frequency laser, Tecar and High power laser.

2 Available Polyter Evo Models

- Polyter Evo Outdoo r: Power supply by battery or by mains (110 - 220V), with battery.

- Polyter Evo Indoor : Electricity supply (110 - 220 V), without battery.

The heart of Polyvo Evo has been completely redesigned R & D, reducing the size and weight of electronics. Simple and intuitive software has been designed using all the features and graphics capabilities of the latest operation. The project led to the creation of a portable device , the new concept of modular expansion capability.

Today Fisaude.com offers users a versatile device that can be built according to their needs , above all the equipment is "alive", since it is possible to extend Polyter Evo with new modules at any time .

Create your Polyter Evo you want!

The new concept of modular expansion capability allows you to combine in a single chassis from one or more of the following technologies :

Electrotherapy Pro Module

- 2 independent outputs

- 28 low and medium frequency waveforms, microcurrent, APS, HPVC, NMES

- Synchronous function of the two channels

- Operation: Constant voltage, constant current

- Control electrodes (test electrodes)

- Open circuit alarm

Electrotherapy Module

- 2 independent outputs

- 25 Low and medium frequency waveforms, Iono, Tens

- Maximum current 100mA

- Synchronous function of the two channels

- Operation: Constant voltage, constant current

- Control electrodes (test electrodes)

- Open circuit alarm

Electrotherapy Pro Module

- 2 independent outputs

- 28 Low and medium frequency waveforms, microcurrents, APS, HPVC, NMES

- Maximum current 100mA

- Synchronous function of the two channels

- Operation: Constant voltage, constant current

- Control electrodes (test electrodes)

- Open circuit alarm

Modulator Therapy

- A channel

- Frequency from 200 Hz to 10,000 Hz

- ML1 / 25 head endowed

- Automatic creep measurement (joules / cm2)

- Generator with the possibility to pilot head of one or more diodes

- Automatic recognition of the head

- Real-time contact sensor

- Interlock

- Laser protection goggles

Tecar Module

- Capacitive / resistive mode

- Power up to 200 W

- Working mode: Athermia, Endodiathermia, Diathermy

Ultrasound Module

- A channel

- 1/3 Mhz multifrequency head with integrated contact sensor

- Continuous or pulsed mode

- Automatic recognition of the head

Magnetotherapy Module

- A channel

- Power up to 100 Gauss

- Frequency up to 100 Hz

- Continuous or pulsed operation mode (Duty Cycle)

Strengths

One, two, three, up to a maximum of four technologies can be housed inside the new portable container, meeting the needs of the most demanding users.

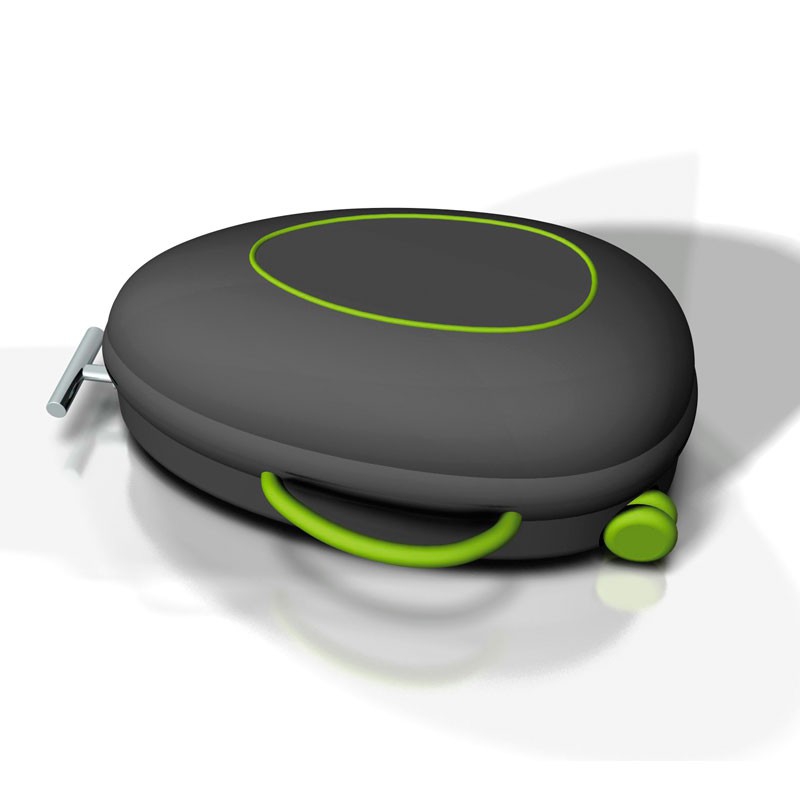

PolyterEvo is also a device dedicated to home therapy , thanks to the practical O-Design trolley that can ensure:

- Portability : compact box with a reduced size.

- Robustness : The material used for the realization of the container is ABS.

- Lightweight : We have achieved a complete equipment with reduced weights thanks to the development of new modular electronic boards, the use of ABS material for the realization of the box, the appropriate choice of a new generation battery.

- Italian Design : The refined O-design of the PolyterEvo with its smooth lines without sharp corners, combines the need to have a box with a compact and secure design with the unmistakable elegance of the Made in Italy design.

Technical characteristics

- ABS trolley with accessory compartment

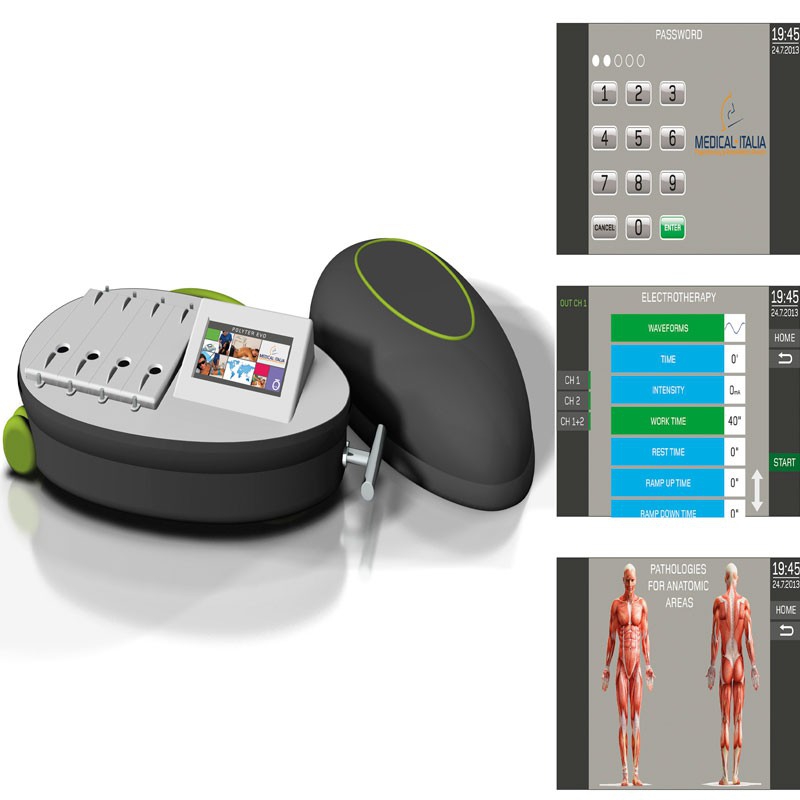

- 7 "touch screen color screen

- Predefined treatment protocols for each technology

- Operational programs customizable in internal user memory

- Software update

- Rechargeable battery with a range of 4-5 hours

- Dimensions: 61 x 37 x 23 cm

- Weight: depending on the base of modules included
