Description Portable T-plate Pedometer (Ref. 21.113.7)
Biomechanical platform Gait analysis static analysis, dynamic and posturológico
- New improved software Medicapteurs
- Importing images (video and photo) and making lengths and angles on the same
- Direct export of any program image to PDF
- Export of dynamic analysis video format (.avi)
- New more visual and simple Interface
- More complete data base

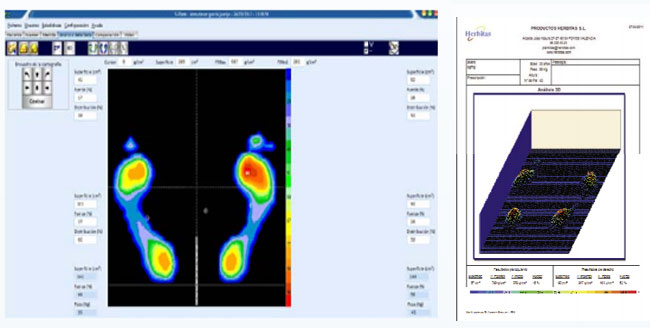

Static Analysis
- Mapping areas with calculation.

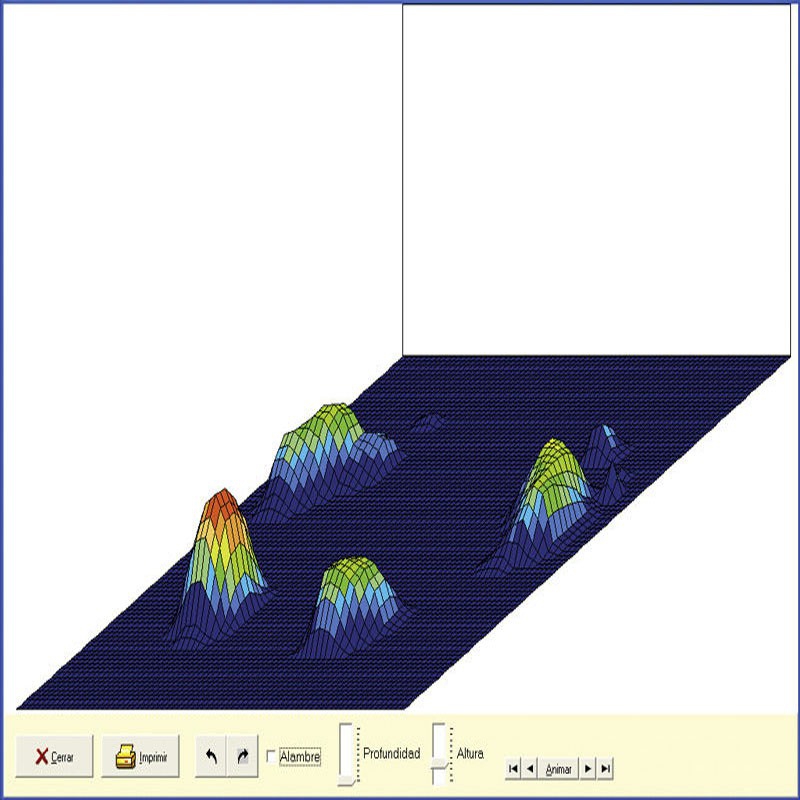

- Different visualizations (3D isopressure, thermal).
- Printing 1: 1 scale.
- Taking actual measurements.
- Display in normal mode, isopresiones, etc.
- CG position, point of maximum pressure, mean pressure and surface (footprint, by foot and by quadrant).

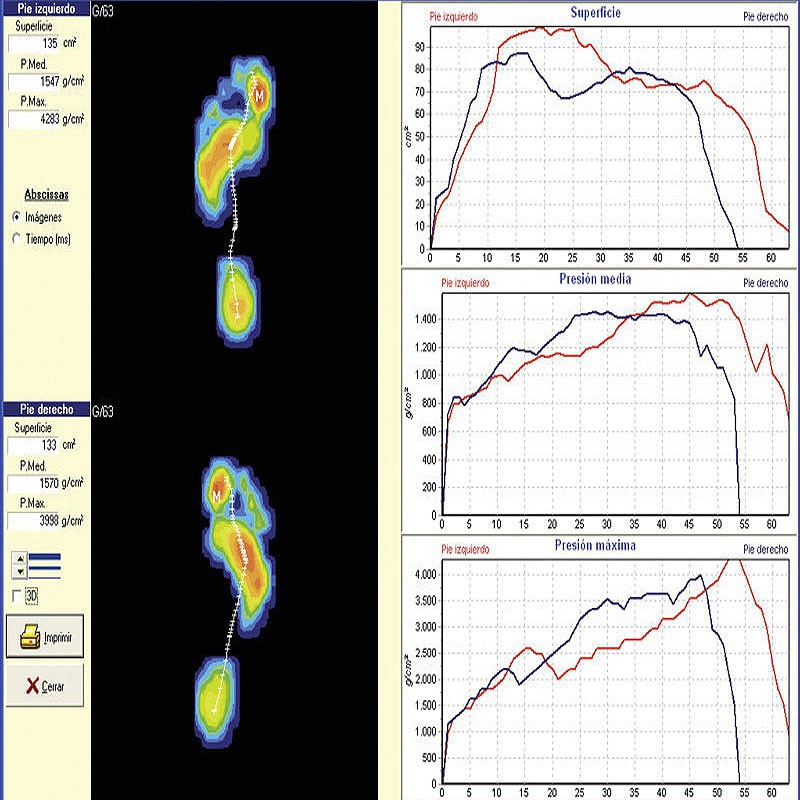

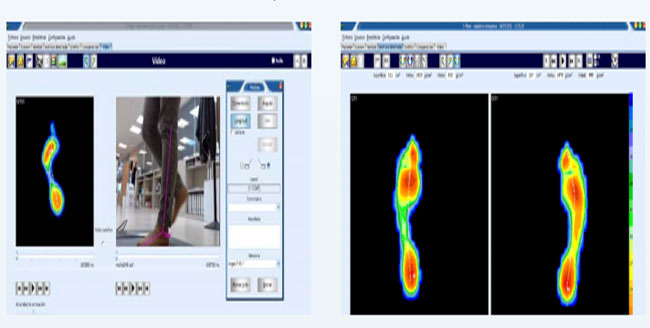

Dynamic Analysis
- Mosaic of the stance phase, compared to 4 measures
- Picture synchronization with webcam
- All kinds of biomechanical graphics ...
- Line progression running.
- Mosaic frames.
- Graphics Biomechanical synchronized with the animation.
- Multiple socket (3 steps per foot) to avoid unrepresentative measurements.
- Taking and Importing video synchronized full-sized photos.

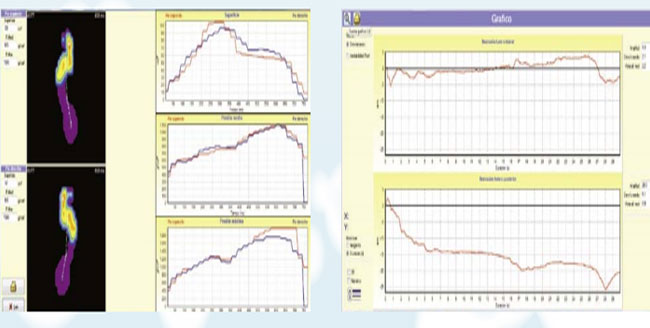

Analysis Posturológico
- Electroestabilograma
- Analysis of Romberg
- Graphics stability
- Chart instability and postural deviation.
- Moving the CG.
- Amplitude and velocity of CG in each plane.
Technical characteristics
- New sensor technology "artificial skin".
- Deposits 200 images per second.
- Simplicity in use.
- No calibration required.
- New ultra lightweight (2 kg) model.
- Aluminum Base and high strength methacrylate.
- Surface high strength polycarbonate.
- New improved software Medicapteurs exclusive.
- Import images.
- Ability to perform measurements on ima g es.
- Data export to pdf.
Advantages
- Original brand Medicapteurs
- Ultra-light format
- No calibration required
- No limit number of licenses per platform
- Free updates
- High sensitivity: allows analysis with or without shoes / insoles
- Greater durability: 4 mm. thick aluminum base and methacrylate
- Exclusive Extensions software such as SRI system
- Compatibility with CAD CAM system
- Software upgradeable by optional modules
- Service support and technical advice
Data sheet
- Size (length, width, height) 610x 580 x 45 mm.
- Thickness 4 mm.
- Net area 400 x 400 mm.
- Weight 2 Kg.
- Base material aluminum and high strength methacrylate
- High strength polycarbonate surface
- Type of resistive sensors (self-calibrating)
- Sensor Life One million performances.
- Interface / USB 2.0 PC
- High strength polycarbonate surface
- USB 2.0 Power transformer not required
