Press Inclined - Inclined Chest Press Solid Rock Bodytone: Professional machine for effective work of the breastplate

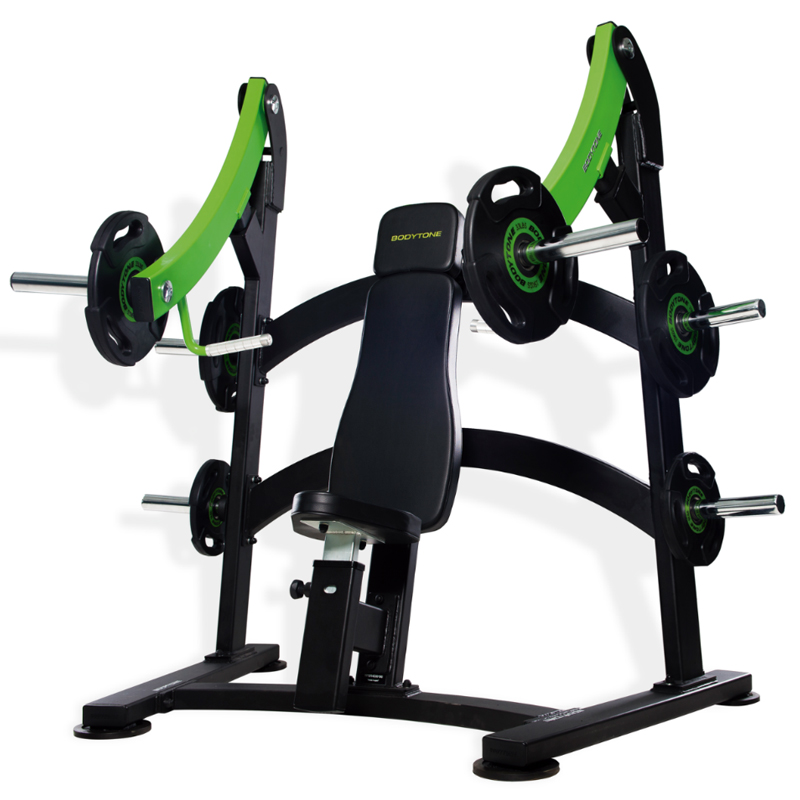

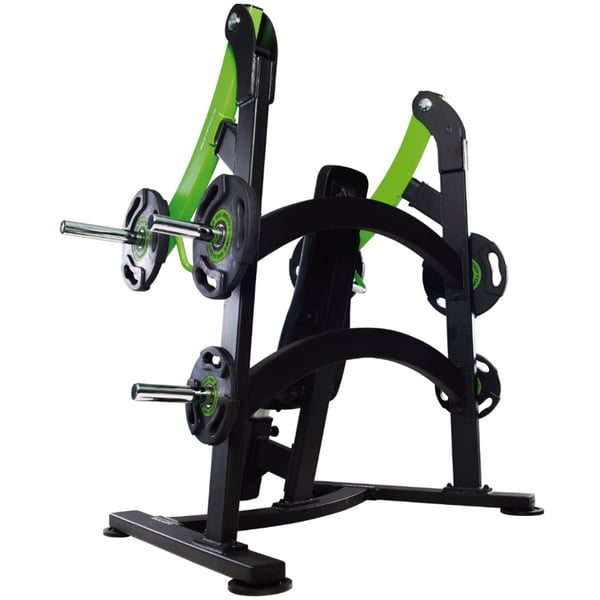

Press Inclined - Inclined Chest Press Solid Rock Bodytone

The Press Bending machine - Inclined Chest Press is d iseñada   and made to allow you to reach the top in your training area pectoral and shoulder . Its system of independent arms and disk loading allows the user to individualize the exercise , and train with the freedom and effectiveness of free weight with the safety of a movement controlled by the biomechanical path of the machine.

Bodytone's line of solid rock power machines are characterized by a completely redesigned design where the curves and design are combined with the corporate color, green, that brings you that sporty and elegant air. They are robust machines of great dimensions with ergonomic grips of rugged steel and non-slip , designed to support large weights . With articulated and independent arms , seats easily adjustable by means of lever and prepared to support maximum loads of training from 300 to 500 kg.

The use of "top" components has been key in the production of these machines, using SKF bearings of high quality in the articulations of the arms of each machine of the series, painting 3M , and a system of plate plaque that guarantees the total robustness and security of the whole structure.

Undoubtedly, it is a very complete range that comes to cover a very important sector in the fitness sector, as is strength training.

Technical characteristics

Total weight : 151 kg.

Chassis

- Steel tube of 110 x 52 mm, with a thickness of 3 mm.

- Soldered according to UNE EN 10219, quality S-275-J0H.

- Enriched and optimized to maintain a section constant in the bending process, avoiding fragile areas with low breaking index.

- Process of cold bending by means of 4 rollers system, avoiding the deformation in the process, maintaining its physical characteristics throughout the piece.

Painting

- 50 micron epoxy primer.

- Surface finish with 90 micron bicomponent epoxy paint, with high antioxidant degree due to moisture and sweating.

- High quality pigment, with high gloss finish used in automotive.

- Painted in a paint tunnel and dried at 60º.

Welding

- Perimetral closed in structural points and plates of union.

- Assembly system: Plate system - against 10 mm thick plate, avoiding twists and looseness in areas of maximum demand.

- Optimum ergonomic and biomechanical study for each exercise

Axes

- Plates cut to 10mm laser with reinforcement of another 10mm plate, for a correct movement without looseness or twisting produced by the use and the load.

Tread

- Double SKF conical bearing, packed in closed bushing, anti-sagging, guaranteeing a constant steering movement.

Backrest and seat

- In polipiel resistant to sweating, antibacterial and antiallergic.

- Logo in embroidered upholstery.

- Backrest, seat and rollers in flexible polyurethane foam of density 80 Kg./m3, offering optimum support for the exercise and a uniform contact.

- Resistant to deformation.

Handles

- 3mm anti-slip rubber and erosion resistant.

- Optimal density for a total contact grip for the performance of the exercise.

- Solid aluminum cuffs.

- Regulations: Adjustable seat in 8 positions, chromed and numbered by laser.

Others

- 4 disc holders in chromed steel, making the machine more stable.

- 20 mm thick rubber stoppers on disc holders.

- 50 mm rubber stoppers to support moving parts.

- Hardness screws 10.9.

- Regulation system with a single bolt, manufactured in technopolymer with a breaking index of 750 kg.

- 4 Non-slip rubber bases.

- Platform for foot support in non-slip aluminum.

- Action of independent movement, convergent and divergent, thus simulating the action of free weight.

- 4 Non-slip rubber bases.

Dimensions

- Length: 107 cm.

- Width: 191 cm.

- Height: 175 cm.
