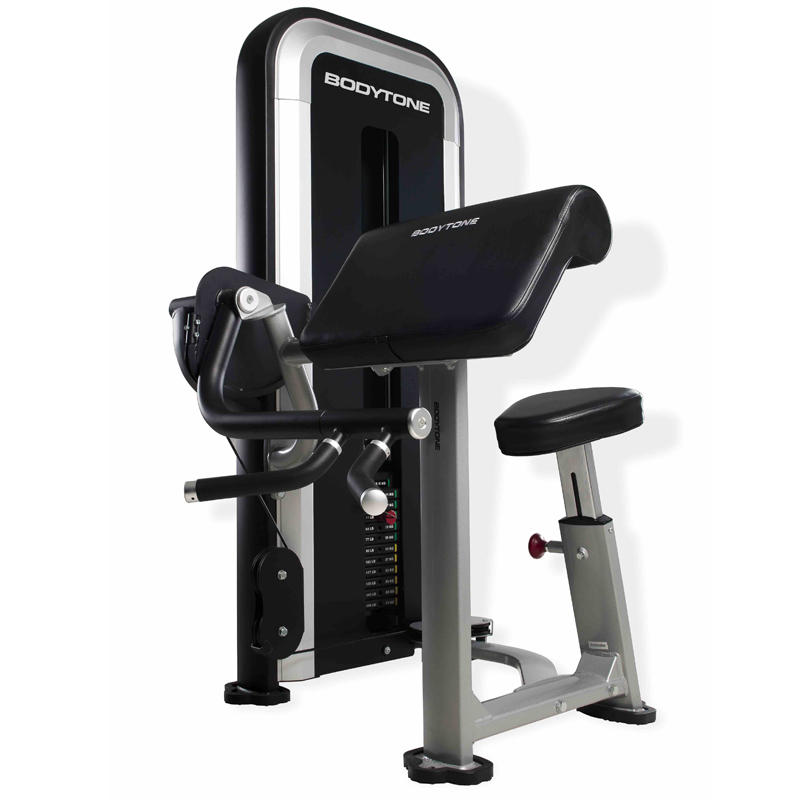

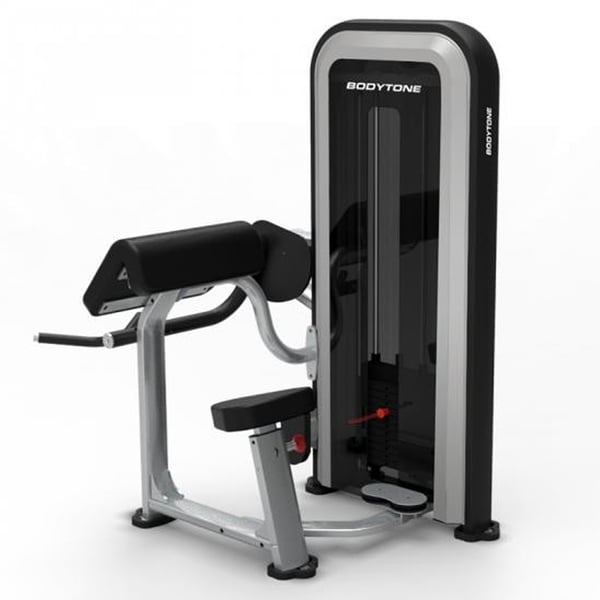

Professional Series Biceps Seated Evolution Series Body Tone: 71 kg load on plates

BODYTONE EVOLUTION SERIES is the new and most complete range of plate machines, made in 4 mm steel tube structure. thick, high strength.

The latest technologies have been used in special treatment of paint in 3 layers, guaranteeing a greater durability and resistance. Manufactured with solid steel parts and guides and hardened double layer chrome.

Transmission by cable of 6 mm steel. coated in PVC of 900 kg of Looser resistance. Multiposition travel limiters with angle and numbering indicator.

Differentiated levels of strength with colors. Nylon pulleys with internal bearing, highly silent. Includes information panel of each exercise, with muscles involved. Highly translucent full bodywork according to CE regulations. Two-sided storage tray for the user.

TECHNICAL CHARACTERISTICS:

Total weight

190 kg.

Plate weight

71 kg.

Settings

Seat height

Transmission

6 mm thick steel cable coated with PVC with a resistance up to 900 kg.

Guides

Calibrated in carbon steel and with double chromed treatment hardened for a better sliding of the weight plates.

Structure

High strength 3 mm steel tube, laser cut for accuracy and welded by robotic process.

Padded

A high density, perspiration resistant, antiallergenic and anti-bacterial skin simulation with double padding on models with a more intense surface area.

Painting process

Steel pickled and stabilized by total immersion of the pieces in different degreasing solutions to guarantee a perfect and complete cleaning of the base material. Antioxidant primer to ensure adequate insulation of the internal oxidation and good adhesion of the paint. 2 layers of epoxy polyester powder paint, dried at 240ºC.

Design process

Prior study of biomechanics and ergonomics under the supervision of professionals and associated athletes. After a long period of design, from sketching, engineering research, prototype production, testing by professional athletes, for a year, our products enter the market.

Help levers

Balanced, they allow to eliminate the excess weight at the beginning of the exercise.

Covers and covers

ABS 3.5 mm thick, translucent and high strength. Protections on both sides, according to EU regulations, to avoid any possible damage caused by contact with the weight plates.

Grips

Anti-allergenic and anti-slip neoprene with aluminum finish.

Supports and supports

EVA of high density of 5.8 mm of thickness with a manual mechanism by means of a bolt. Laser numbered numbered positions.

Platforms

Made of non-slip material.

Weight Selector

Magnetic with ergonomic rotor and secure wiring.

Counterweights

Designed to fit optimal biomechanics.

Stroke limiter

Different positions with angle and numbering indicator.

Mobile Parts

ST52 steel bevelled, calibrated and machined.

Numbering of the weight of the plates

Numbered and with 3 different colors depending on the level.

Pulleys

Nylon with an internal bearing and quiet operation.
