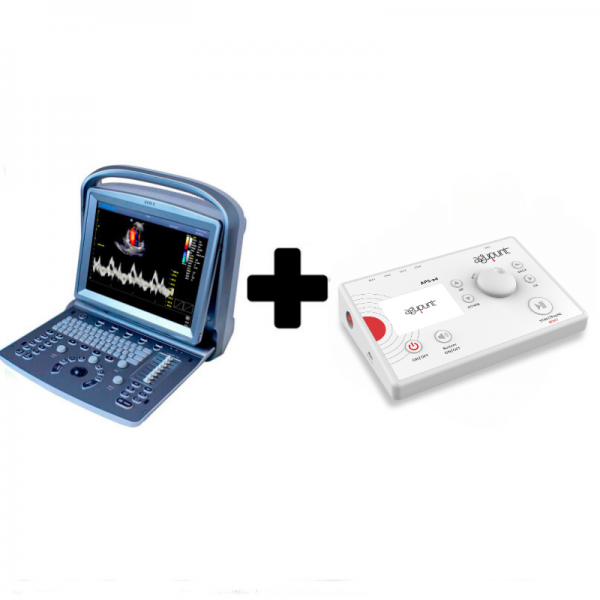

Savings pack: Chison ECO 5 ultrasound machine with 10 MHz linear probe + APS e4 therapeutic percutaneous electrolysis device

Chison ECO 5 Portable Ultrasound Machine with 5.3 - 10.0 Mhz linear probe + APS e4 therapeutic percutaneous electrolysis device

Chison Eco 5

ECO 5 is the newest model in the ECO series of the Chison brand . It is equipped with color Doppler , so it can be used for a wide variety of examinations . In addition to known imaging techniques: - Tissue harmonic imaging, Speckle Reduction Algorithm, Composite Technology, I-image: image optimization software. Several new features are introduced , such as the Auto Image Optimization (AIO) optimization tool and full-screen zoom that makes full use of the 12' LCD screen.

Thanks to the EasyViewTM system, patient data, measurement reports and stored images are easier to manage ; And by using the USB ports we can not only export saved data quickly , but we can also connect a PC printer which offers a good alternative to more expensive video printers.

Chison ECO 5 is one of the best color Doppler ultrasound system options with advanced technology at a competitive price.

Strengths:

Ergonomic:

- Rotating LED monitor (0 ~ 30°): different viewing angles

- Unique LED: reduces eye fatigue

- Keyboard layout: for quick and easy access

- One key for viewing full screen images

Complete Portable Ultrasound Machine

- Full digital beam generator

- Color Doppler technology

- Double frame rate technology

- Color priority

- Color filter

- Multiple Applications: Abdomen, OB & GYN, Urology, Vascular, Small parts, Pediatrics, Cardiology.

- THI (Tissue Harmonic Imaging)

- SRA (speckle reduction algorithm)

- Composite images

Efficient:

- Simplified workflow

- Built-in EasyView™ imaging system, fast image storage/retread/transfer, one-button direct printing, make your workflow better than you can dream of.

Eco friendly:

- Less radiation

- Lower energy consumption

- Longer life: LED

Technical characteristics:

- 2 probe connectors

- Easy to use and intuitive thanks to the various functions

- Intuitive data manager: All photos and reports can be saved via digital scan viewable on your computer, and exported in JPG and PDF format

- Memory: 8G internal memory; Data backup can be done on an external USB or PC media

- Integrated rechargeable battery BT-2500 Li-ion 4400mAh 14.8V (2.5 hours)

Monitor:

- 12” high resolution LED monitor

- Resolution: 1024X768

- Full screen option

- Ergonomic from 0 to 30° to have different viewing angles

Advanced technology:

- Multi-beam Former

- Pulsed color doppler technology (double frame rate color priority technology, color filter)

- Automatic PW pulsed doppler tracing

- Space Compound Imaging

- SRA (noise reduction algorithm): is a technique that uses a variety of useful algorithms to avoid "smearing", smooth tissue images and mark weak edges

- i-Image

- THI – second harmonic – second harmonic - to improve image quality

- Complete calculation packages: general measurements and clinical measurements

- EasyViewTM image archiving system

- Patient information management system

- Amount creation system

- Zoom

- i-image

- Cinema Loop

- 3 USB ports: 2 on the left side and 1 on the right

- Ethernet port, Video output, VGA port

- Thermal and laser printer support



APS e4 Therapeutic percutaneous electrolysis: The revolution in invasive physiotherapy





The new APS e4 device has been redesigned and improved by the best professionals in invasive electrotherapy treatments. Includes the new 8-output octopus-type cable for electrolysis . A portable multi-option electrotherapy device with three types of current: galvanic (continuous), biphasic (symmetrical/asymmetrical) and monophasic (symmetrical). Its treatments are 100% modifiable, and allows you to control the parameters of all treatments, and adapt to the needs of each patient.

This device is based on the most innovative technology to redefine the field of invasive physical therapy. The APS e4 device erases the technological boundaries that limit other devices to elevate invasive physiotherapy to a new level.

Its technological components and the precision of its treatments combine to configure the most complete equipment on the market thanks, also, to its four work programs:

- Single-phase pulsed current (EPS, PENS)
- Percutaneous electrolysis (IPEN)
- Neuromodulation (NMP)
- Segmental stimulation (MSUN)

It is the only invasive physiotherapy equipment licensed to work on battery or connected to the electrical grid.

*Compatible with the previous model of APS-e4 and other electrolysis equipment.

Current typology

- Galvanic (continuous)

- Bisaphic (symmatric)

- Bisaphic (asymmetrical)

- Single phase (symmetrical)



Type of treatments

Parameters 100% modifiable during treatment to adapt them to each patient

- Dry electropuncture: Application to myofascial trigger points. Default programs and
Modifiable high and low frequency.

- Neuromodulation: Stimulation of dermatomes, myotomes and/or sclerotomas related to the pain area. Default and modifiable program.

- TENS: Analgesia induced by neurostimulation for the relief or blocking of chronic or acute pain.

- Microcurrents: Application at a subsensory level with multiple benefits for people with hypersensitivity.

- Pointer: Checking and stimulating the target tissue using a single needle.

- IPEN (electrolysis): Indicated for tendinopathies and muscle tissue. It produces electrochemical changes in the tissue that stimulate regenerative responses.



Strengths:

- INCLUDES 8-HOUR IN-PERSON TRAINING. CHECK THE DATES OF THE NEXT COURSES BY CLICKING HERE.

- The equipment has 4 types of currents: 1. Pulsed monophasic current (EPS, PENS), 2. Percutaneous electrolysis (IPEN), 3. Neuromodulation (NMP), 4. Segmental stimulation (MSUN).

- Never has a laptop with these characteristics taken up so little space.

- APS e4 offers maximum stability and precision in the emission of currents. In addition, it allows us to know the exact voltage load that we are emitting in order to assess the real effectiveness of the treatments.

- It is the first invasive physiotherapy equipment with which you can work connected to the electrical network. With a health license to be able to work plugged into the electrical network.

- The equipment has an anti-collapse system that automatically restarts it in case of blocking, thus avoiding interfering with the patient.

- It has 50 storage memories to create your treatments.

- APS e4 has a pointer capable of emitting current superficially using a strut and 4 channels with crocodile clips to be able to emit currents percutaneously with a needle.

- The checkbox system performs a constant self-check of the equipment and its connections.

- The variety of programs included in the device allow for a multitude of treatments.

What is invasive physiotherapy?

Invasive physiotherapy is a percutaneous intratissue electrolysis (EPI) technique that consists of the ultrasound-guided percutaneous application of a galvanic current through an acupuncture needle. This achieves phagocytosis and the repair of soft tissue injuries (patellar tendon, Achilles tendon, pubalgia/hernia, lateral and medial epicondylitis, etc.).

Who is this product aimed at?

To physiotherapy and rehabilitation clinics.

For what treatments is invasive physiotherapy recommended?

- Tendinopathies: such as in the supraspinatus, rotator cuff, epicondylitis, patellar tendinopathy, Achilles tendinopathy, etc...

- Muscle tears

- Neuropathies such as loss of sensitivity or motor deficit, etc...

Technical characteristics:

- Rechargeable battery with USB type C charger (universal)

- Operation of the equipment connected to the current or by battery.

- Outputs 1-4 of symmetrical monophasic, symmetrical biphasic and asymmetrical biphasic current for dry electropuncture, neuromodulation, TENS and microcurrent treatments.

- Output 5 for galvanic current (for electrolysis) and symmetrical two-phase (for pointer).

- 3.5 inch TFT digital screen.

- Easy and comfortable to carry, with dimensions of 220m x 140 mm and a weight of 225g.

- Acoustic sounds (start and end of treatment or in case of equipment error)

- Possibility of working in milliamps (mA) or microamps (A) in the electrolysis and microcurrent programs.

- Equipment parameters:

Power: 0.01 to 20.0 mA
Frequency: 1 to 150 Hz
Pulse: 10 to 700 ms
Stage time: from 1 to 60 sec
Treatment time: 1 sec to 60 min
Maximum voltage: 19V

Dimensions:

- Weight: 2 kg.

Base equipment:

- Carrying case with APSe4

- Handle with on and off button

- 4 cables for channels 1-4

- Charger cable designed for medical device

- Pointer for the maniple

- 4 electrodes

- 25 APS Regular needles 0.32x40 mm

- Octopus type cable with 8 outputs

Warranty:

- The device has a two-year warranty.
