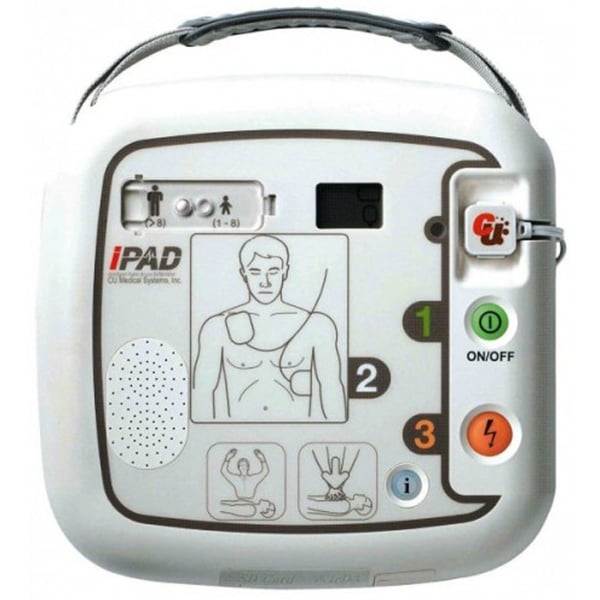

Semiautomatic defibrillator IPAD CU-SP1: easy to use, instructions and voice prompts

The IPAD CU-SP1 semi-automatic defibrillator is external for users with minimal training. It is very easy to use by healthcare personnel and/or the general public.

The new iPad CU-SP1 is the latest model in the public access range of smart defibrillators . The semi-automatic defibrillator guides you through a rescue event through voice instructions and prompts. It is suitable for use in the workplace , a shopping center or any other out-of-hospital environment .

Technical characteristics:

- Disposable battery minimum 200 discharges (depending on type and environmental conditions)

- On-screen status indicator

- Automatic volume adjustment according to ambient noise

- Smart electrodes. Continuous checking of their expiration. Warning sign 3 months before expiration

- Practical accommodation for the electrodes. Accessible compartment under equipment. Always connected

- Detailed voice messages and light indicators: Voice messages to perform CPR on adult and child patients

- Detection of CPR performance. Notify the user if or resuscitation process is detected

- Complete communication between the CU-SP1 and the user through the CU-EX1 computer program, to control each episode

- Transfer of information with the user via SD card or IrDA infrared port (optional).

Technical data:

- Output energy: Adult 150Joules, Pediatric 50Joules (common use)

- Charging time: less than 8 seconds. Charging time after CPR finished: at least 8 seconds

- Patient Analysis: Shockable rhythms, ventricular fibrillation, ventricular tachycardia

- Battery: Standard DC 12 V 2.8 Ah, Lithium manganese dioxide, minimum capacity 1OO discharges (150J). High capacity DC 12V 4.2Ah, Lithium manganese dioxide, minimum capacity 200 discharges (150J)

- Useful life: 5 years (High capacity battery and in operating/standby temperature conditions and in standby mode after initial check)

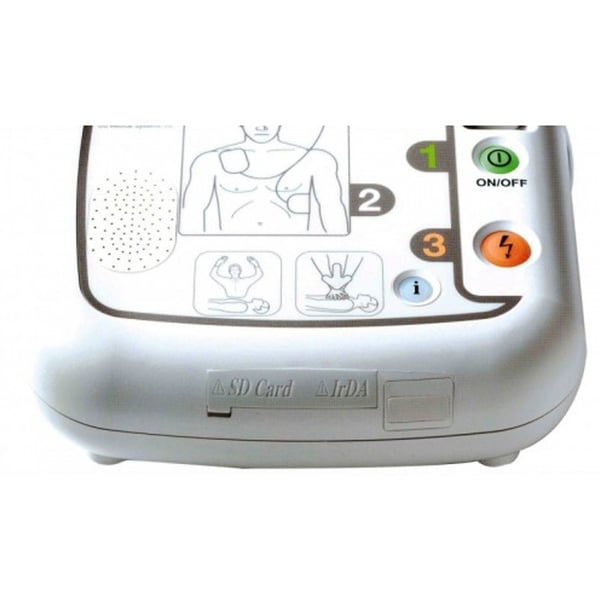

- Data recording and transmission: lrDA port Wireless transmission of event data to PC

- SD card. Internal Memory (Nand-flash): ECG, Events

- Storage capacity: Multi recording of 5 events/ Max 3 hours

- PC program data review: CU-EX1

- Electrodes: Common use for adults and children

- Expiration date: 30 months (from the date of manufacture)

- Sensitivity/Specifications: Meets AAMI DF80 guidelines

- Sealing: IPX5 liquid protection per IEC60529 (IP55) IP5X dust protection per IEC60529

- Temperature: Operation/standby (OºC - 40ºC)

- Vibration: Meets MILSTD 81OF guidelines.

Warranty:

- The parts of this supplier have a 1-year guarantee except compressor motors, which are 2 years

- The rotors and bearings have a 6-month guarantee

* The guarantees will be applied as long as the device and its accessories are not damaged by misuse or negligence by the client: blows, broken displays, overvoltage, etc.
