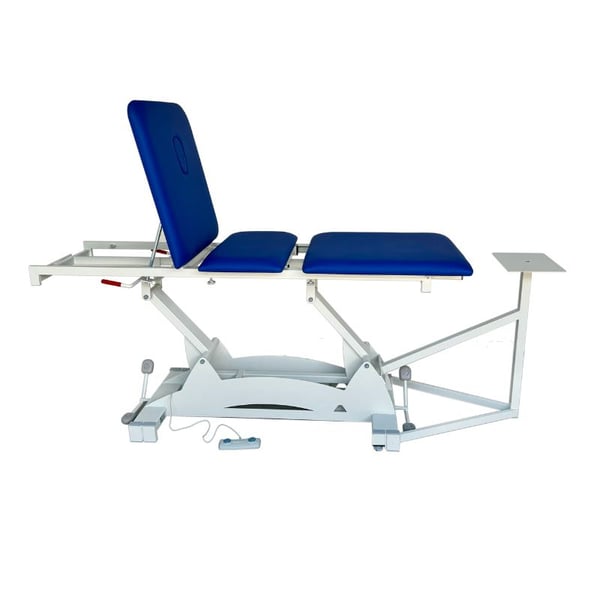

Servitec height-adjustable traction table: For treating patients using cervical and lumbar traction

SERVITEC TRACTION Stretchers ROBUST Range with 2-3 BODIES, ALL MOVABLE: the Best Quality / Price / Robustness in the Spanish Manufacturing Market. Optimal Balance in Robustness-Price-Aesthetics

Three-body electric or hydraulic lift-up stretcher, all movable, with various tilt positions, sitting and lying down position, 194 x 70 cm bed with centralised, single-step retractable wheels.

Servitec stretchers from the robust range are ideal for the established professional who is looking for special features in his work tools that make him unique in his sector, but who also wants a robust and rigid stretcher, without elasticity or swaying, suitable for high static and dynamic loads.

Strengths:

- The structure is very robust and the materials are of the highest quality, which extends the useful life of the stretcher. Like all Servitec brand products.

- The base frame has narrower planks-stringers than the table top and is designed to allow the professional to approach the patient easily without anything to trip over.

- The upholstery is designed for high resistance to abrasion, perspiration, oils and other stains.

- The backrest includes a facial hole with an upholstered plug to place the patient "face down" comfortably.

- Models with wheels: It has 4 centralised retractable, rotating wheels of great robustness, with a soft 50mm double cover, which allows it to be easily moved with the patient on it, even on rough or uneven ground. The wheels are uncovered and come into contact with the ground by means of a comfortable lever at both ends, only needing to step on one of them.

- Hydraulic height adjustment: The stretcher bed can be raised from 60 cm to 95 cm by a hydraulic pump operated by pedals on both sides with ergonomic rubber pads to avoid annoying impacts on the floor when pedalling, plus a double bilateral pedal for lowering or unloading.

- Electric height adjustment: The stretcher bed can be raised from 55 cm to 95 cm by electric linear motor, operated by floor pedal. Optional peripheral drive.

- All movable bodies with interlocking backrest inclination: mechanical by lever interlocks, and central sections and sliding feet that are free or fixed by means of tightening knobs, allowing the professional to easily and precisely adapt to the therapy to be performed.

Technical characteristics:

- SUPER-ROBUST stretcher for traction, examination, massage and/or treatment of patients with INCLINATION AND SLIDING.

- Highly robust and durable structure in oven-painted steel in EPOXY-POLYESTER, greyish white RAL 9002.

- 3-body bed, all movable: Reclining backrest with double locking rods using a steel piston-plunger system that locks into infinite positions, a mechanism that lasts forever without maintenance, breakdowns or breakages, the most reliable manual system (WITHOUT rack systems, which offer fixed adjustment positions (teeth), which to adjust downwards must be pushed forward, causing discomfort to the patient, and always end up breaking due to wear).

- All sections have complete independent structural perimeter frames and solid steel rod for rotation without hinges, to protect the upholstery, avoiding the tearing and flaring of holes/screws, or breakage of the wooden insert, since said wooden board does not perform a mechanical-structural function.

- Upholstered-Backrest with face hole and face plug.

- Hydraulic height lifting with bilateral pedal. 1,000 kg. force pump (10,000 Nw., Power Packer, Holland). Minimum height. 60 cm and maximum height 95 cm. Anti-squeak, maintenance-free swivels, with PA 6.6 polyamide friction bearings, with radial and axial adjustments, guaranteed anti-squeak protection.- Electric height lifting with floor pedal as standard. 600 kg. force linear motor (6,000 Nw., TiMotion). Minimum height. 55 cm and maximum height 95 cm.

- Electric height adjustment with floor pedal as standard. Linear motor with 600 kg of force (6,000 Nw., TiMotion). Minimum height 55 cm and maximum height 95 cm.

- Lifting mechanism with “4x4” system with increased rigidity with 2 structural driving bars, joined by a structural steel transmission bar and one-piece steel side panels, for better cleaning and aesthetics. Nylon friction bearings without “squeaks”, maintenance-free, with PA 6.6 polyamide friction bearings, with radial and axial adjustments, guaranteed anti-squeak protection.

- Technical Vinyl Upholstery (PVC / Polyester, 650 gr/m2., Valencia range, Spradling, Germany) with resistance to abrasion, perspiration, saliva, blood, urine, UV light, oils and stains. Resistance to high and low temperatures. Antimicrobial, antibacterial and antifungal protection. M2 fire retardant and washable. Waterproof.

- CENTRALIZED retractable wheels, with drive pedals at both ends of the stretcher, but only need to be operated on one side, as it is centralized with a central longitudinal torsion shaft: Rolling system using solid carbon steel parts machined/adjusted on a lathe-milling machine for optimal fit and strength, mechanism of perpetual longevity without maintenance, breakdowns or breakages, to raise and relocate the stretcher even with a patient . Double wheels of 50 mm. diameter with bearings, low noise thermoplastic belt, non-marking (Tente, Germany).

- The most ROBUST stretcher on the market, made entirely in Spain and with CE marking, which guarantees that spare parts can be found quickly and at reasonable prices in the future, unlike imported ones.

- Servitec electric and hydraulic stretchers are manufactured in Spain and stand out for their great quality and price .

Measures:

- Servitec electric and hydraulic stretchers are manufactured in Spain and stand out for their great quality and price.

- Weight: 100 kg.

Presentation:

- 3-body electric or hydraulic stretcher

- Face hole and plug.

- Centralized retractable wheels.

Optional accessories :

- Stool Ref. MT-TP, for legs, adjustable in height.

- Pillow roller Ref. MT-RA, for tractions, length 60 x diam. 20 cm.

- Chest strap Ref. MT-CT, made of reinforced felt.

- Pelvic strap Ref. MT-CP, made of reinforced felt.

- Chinstrap Ref. MT-B.

- Kglitson frond Ref. MT-FK, for chin strap in chrome-plated steel.

- Set of adjustable straps Ref. MT-JT, to apply traction.

Available colors:

Color selection process

Choose the color in the " Comments " box during the purchase process by writing the name and number of the desired color

IMPORTANT:

The price includes shipping costs to the Peninsula. Following the current policy of the transport companies , delivery will be made to the street door . If it is necessary to go up or down a floor, you must contact us to request a porter service from the transport company. This service entails an additional charge.

Warranty:

- 2 years and 1 year on actuators (electric motors, hydraulic pumps and gas pistons). Structure 5 years
