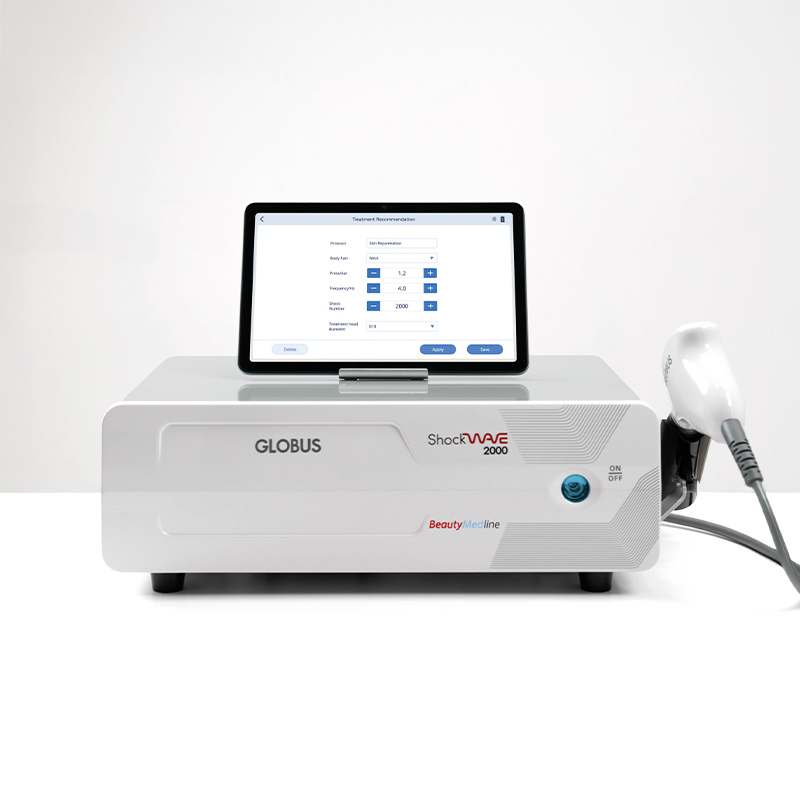

Shockwave 2000 BeautyMed line radial shock waves: Equipment with pneumatic generator for aesthetics and physiotherapy with 107 programs

The Shockwave 2000 BeautyMed Line by Globus is a professional radial shock wave device designed for dermatofunctional and musculoskeletal treatments . With advanced, non-invasive, and effective technology, it stimulates tissue regeneration , improves skin appearance , and accelerates injury recovery .

Strengths:

- Comprehensive coverage in aesthetics and rehabilitation: 107 protocols, covering dermatofunctional and medical treatments, with the possibility of customization.

- Ergonomic Ergowave handpiece: Comfortable handle with shock-absorbing insert, integrated display and on-hand controls, allowing for precision, proper posture, and real-time adjustments.

- Safety and efficiency in every session: pressure indicator displayed on the screen and Autostart system that automatically starts the program when the correct pressure is applied.

- Ease of maintenance: pneumatic system designed to allow the user to perform maintenance on the handpiece, reducing time and costs.

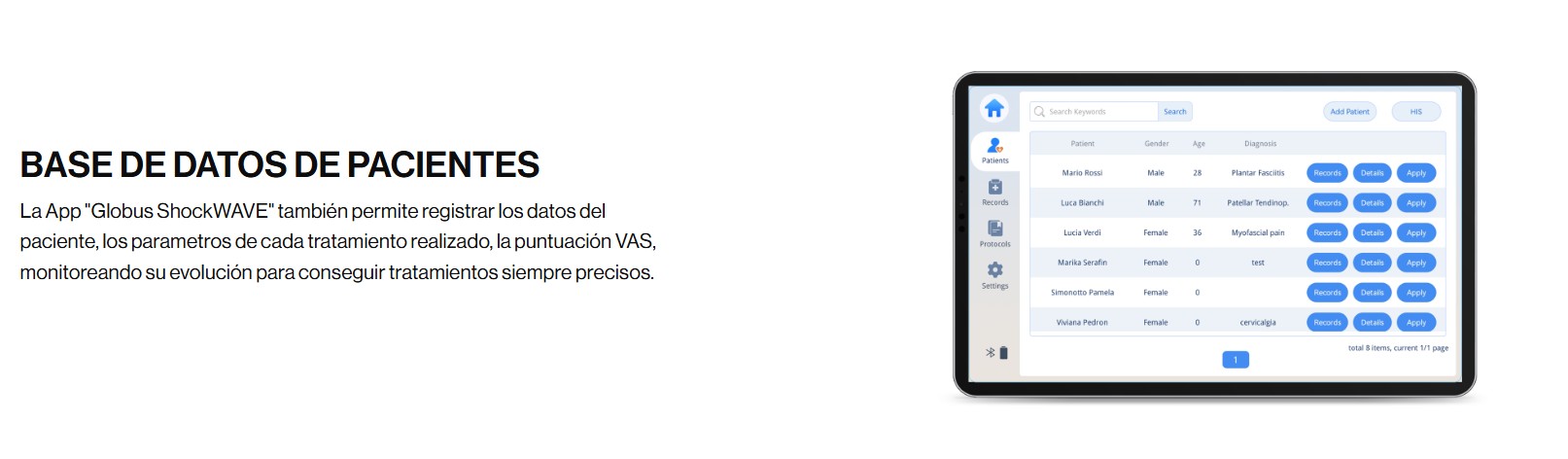

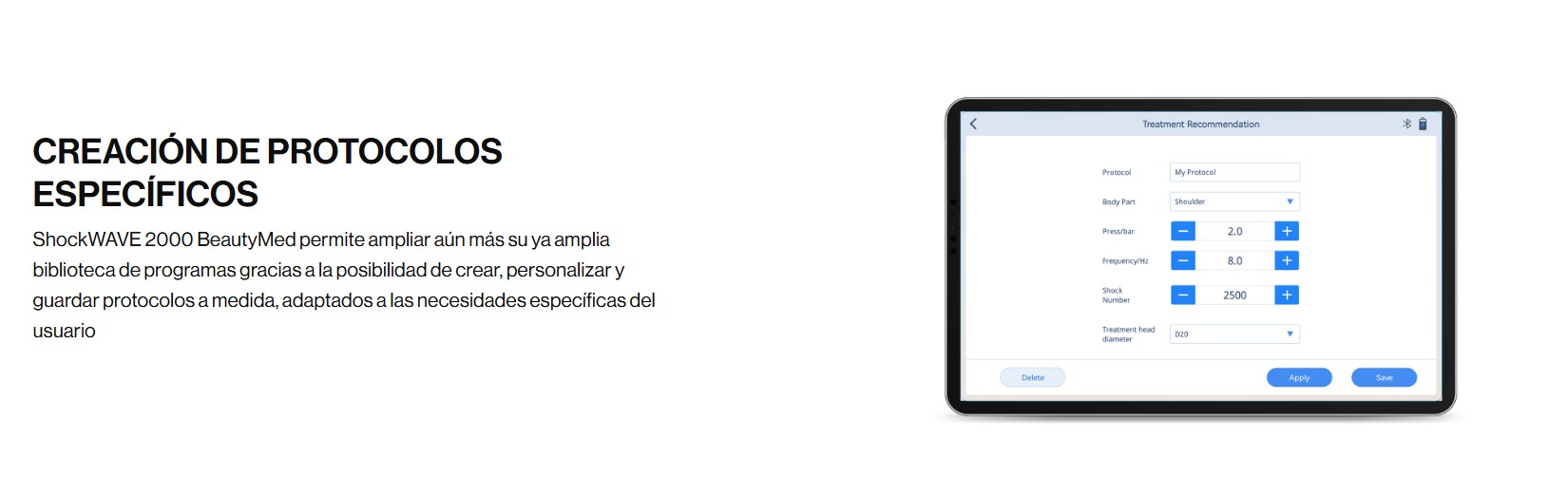

- Advanced tablet control: intuitive navigation with the "GLOBUS ShockWAVE" app, patient data recording (including VAS scoring), progress monitoring, and creation of customized protocols.

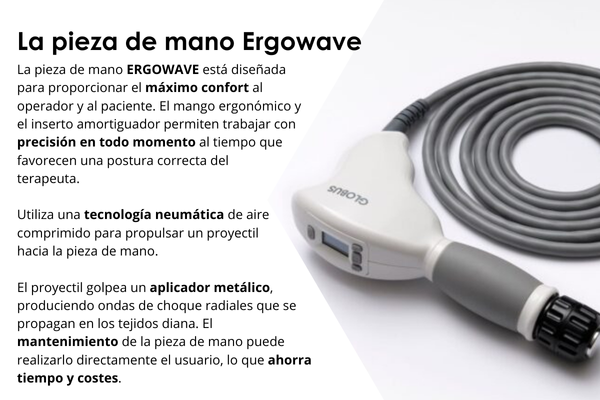

The Ergowave handpiece

This pneumatic innovation not only improves user comfort but also optimizes the therapeutic effect . By propelling the projectile with compressed air, a more stable and homogeneous impact on the head is achieved. This type of discharge produces cavitation phenomena in the tissues , which increase cellular permeability and promote repair .

At the same time, the generated mechanical stimulus triggers mechanotransduction processes , i.e., the conversion of mechanical forces into biochemical signals that stimulate cellular responses. This mechanism promotes neovascularization , tissue regeneration , and pain reduction , aspects that are especially relevant in the treatment of chronic conditions such as tendinopathies, calcifications, and fasciopathies .

Comprehensive applications:

A. Dermatofunctional treatments

Perfect for: face and décolleté, arms, abdomen, buttocks, thighs and legs

Includes protocols for:

- Rejuvenation, toning, elasticizing massage and scar treatment.

Fat reduction, lymphatic drainage, and treatment of various types of cellulite (edematous, fibrous, sclerotic).

B. Musculoskeletal indications

Addresses specific pathologies:

- Neck and jaw: temporomandibular arthritis, cervical trigger points, trigeminal neuralgia, etc.

- Shoulder: acute and chronic tendonitis, bursitis, myofascial syndrome, unconsolidated fractures.

- Elbow and forearm: epicondylitis/epitrochlea, carpal tunnel syndrome, fractures.

- Hand: trigger finger, Dupuytren's disease, De Quervain's syndrome.

- Back: lumbago, trigger points, lower back pain.

- Hip and thigh: bursitis, pubalgia, tendinopathies, necrosis, osteoarthritis.

- Knee: patellofemoral syndrome, synovitis, meniscus, patellar tendinopathy.

- Calf and foot: plantar fasciitis, heel spur, Achilles tendonitis, Morton's neuroma, among others.

Technical characteristics:

- Technology: Pneumatics (radial shock waves)

- Pressure: 1 - 5 bar

- Frequency: 1 - 20 Hz

- Channels: 2 (not simultaneous)

- Configurable shots: 100 - 9,900

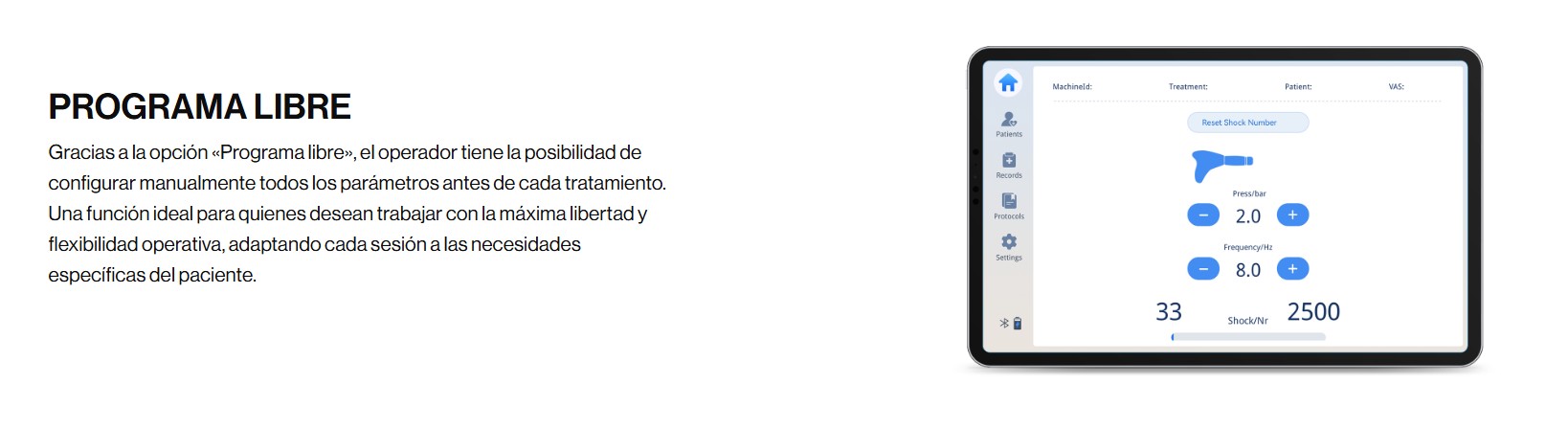

- Programming: Pre-set, customization and “free program”

- Interface: Touch tablet + LCD screen on handpiece

- Power supply: 100-240 V AC · 50-60 Hz · 240 VA

- Dimensions (WxHxD): 430 × 320 × 150 mm

- Weight: 16.6 kg

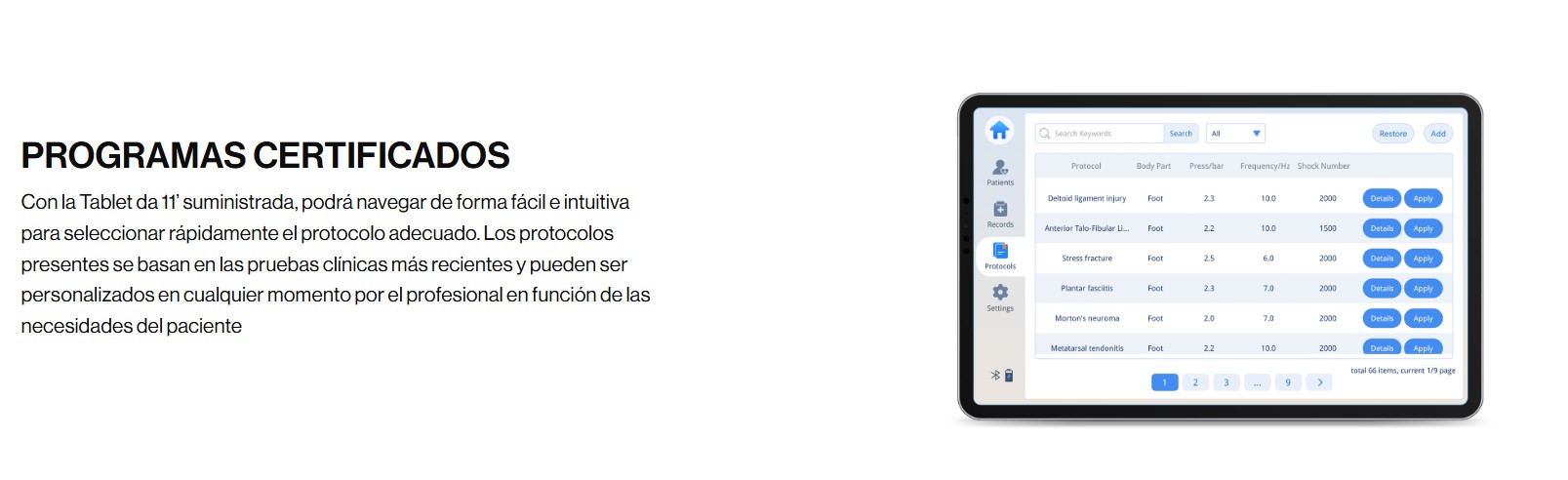

Browse from your tablet with the Globus ShockWAVE app

Base equipment:

- 1 unit ShockWAVE 2000 BeautyMed Line

- Complete handpiece with projectile and guide tube

- 2 handpiece holders

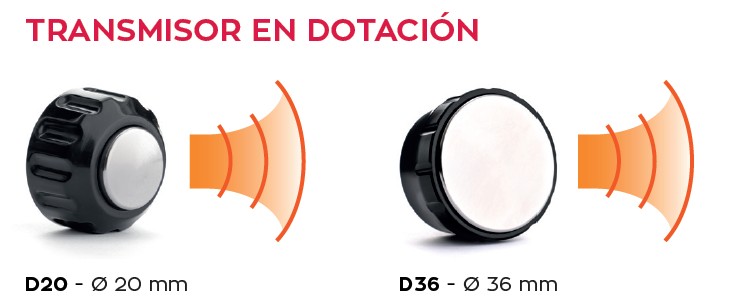

- D20 (Ø 20 mm) and D36 (Ø 36 mm) transmitters

- Tablet with software, tablet stand

- Tools: maintenance wrench, cleaning brush

- 260ml gel bucket, power cord, operating guide and user manual

Optional accessories (additional heads):

- Focused Transmitter R15 (Ø 15 mm) – for focused applications in enthesopathies or small scars.

- Small Transmitter D15 (Ø 15 mm) – ideal for small areas (face, neck), neuropathies or chronic areas.

- Long Transmitter F15 (Ø 15 mm) – for deep structures, fibrosis, deep enthesopathies.

- High Energy D10 (Ø 10 mm) – high energy in small joints (foot, hand), skin rejuvenation.

- Point Transmitter A6 (Ø 6 mm) – for targeted treatments, shock wave acupuncture or acne scars.
