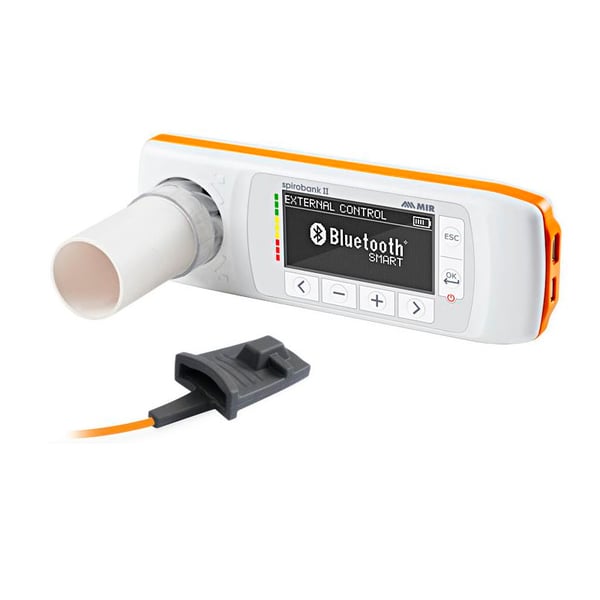

Spirobank II Smart: Spirometer with optional oximeter for iPad
Available options
- With reusable turbine:
- Spirobank II Smart
- Reference: 680911028E1
- With reusable turbine:
- Spirobank II Smart - Oxy
- Reference: 680911029E1
- With disposable turbines:
- Spirobank II Smart
- Reference: 680911028E2
- With disposable turbines:
- Spirobank II Smart - Oxy
- Reference: 680911029E2
Description
Spirobank II Smart spirometer with software that allows connection by cable (USB 2.0) or wirelessly via Bluetooth 4.0 . It is designed with a wide range of parameters and has a capacity for 10,000 tests .
Strengths:
- High-resolution monochrome LCD display and 6-key membrane keyboard
- Battery power supply with an autonomy of approximately 50 hours of continuous use, rechargeable via USB port
- Internal temperature sensor for automatic conversion of BTPS
- Automatic recording of an entire spirometry session, including the best test
Technical characteristics:
- Parameters: FVC, FEV1, FEV1/FVC%, DTPEF, FEV 0.5, FEV0.5/FVC%, FEV0.75, FEV0.75/FVC%, FEV2, FEV2/FVC%, FEV3, FEV3/FVC%, FEV6 , FEV1 / FEV6%, PEF, FEF25%, FEF50%, FEF75%, FEF25-75%, FEF75-85%, FET, Vext, Lung age, EVOL, FIVC, FIV1, PIF, FIV1 / FIVC%, FIF25% , FIF50%, FIF75%, R50, PIF, IRV, VC, IVC, IC, ERV, FEV1/VC%, VT, VE, Rf, ti, te, ti/t-tot, VT/ti, MVV.
- It has a bidirectional digital turbine with flow sensor
- Flow range: ± 16L/s
- Volume accuracy: ± 3% or 50 ml
- Flow accuracy: ± 5% or 200 ml/s
- Dynamic resistance: <0.5 cmH2O/L/s
- Available tests: FVC, VC, IVC, MVV, PRE-POST
- Connectivity: USB 2.0 and Bluetooth 4.0
- Power supply: 3.7 V, 1100 mAh lithium-ion battery
- Compatible PC systems: XP, Seven, Vista, 8, 10
- 160x80 pixel screen
- Dimensions: 55x160x25mm
- Weight: 140g
base endowment:
- USB Cable
- Transport case
- User manual on CD (GB, FR, IT, ES, DE, PT)
- Reusable turbine
- Selectable internal software (GB, FR, IT, ES, DE, PT)
Comparative Spirobank II Devices
Warranty:
- 12 months in case of professional use (doctor, hospitals, etc.)
- 24 months if the product is purchased directly by the patient who uses it.
The warranty starts on the date of purchase proven by a copy of the invoice or other document.
