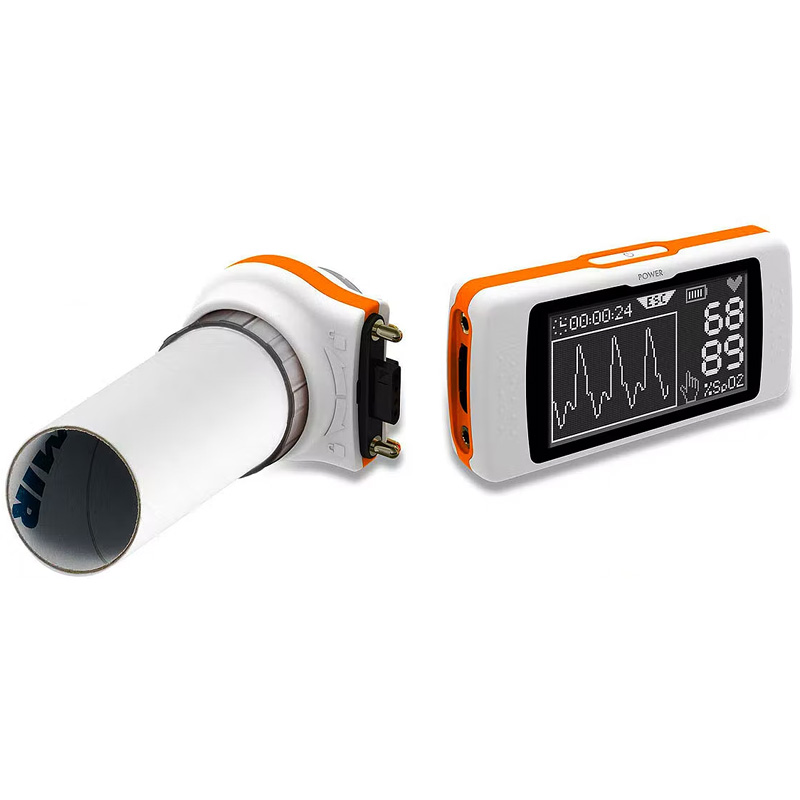

Spirodoc: Complete Spirometer 'One Touch Easy'
Available options
- Model:
- Reusable Turbine
- Reference: 680910600E1
- Model:
- Disposable Turbines
- Reference: 680910600E2
Description
The New Spirodoc has been developed with special attention to design and technology, with a wide scope to modify the operation of the device through several "modes": advanced parameters for the specialist, a reduced parameter adjusted for screening as well as a simplified version for home use (home care).
Strengths:
- Triaxial accelerometer
- Real time communication to PC Bluetooth
- EDiary
- Optional 3D oximetry, with adult or pediatric sensor to facilitate desaturation analysis tests during sleep
- 6-min walk test and measurement of daytime physical activity associated with desaturation events.
Technical characteristics:
- Flow sensor: bi-directional digital turbine
- Flow Range ±16L/s
- Volume precision: ±3% or 50mL, whichever is greater
- Flow accuracy: ±5% or 200mL/s, whichever is greater
- Dynamic resistance at 12L/s: <0.5cmH2O/L/s
- Temperature sensor: semiconductor (0-45°C)
Technical characteristics of the central unit:
- Display: Backlit LCD Touch Screen
- Resolution: 128x64 pixels
- Power supply: Rechargeable Lithium ion battery 3.7V, 1100 m
- Data transmission: USB 2.0 On-The-Go and Bluetooth® 2.1
- Accelerometer: Triaxial ± 2g, 400Hz sampling
- Dimensions and weight: central unit 101x48x16mm, 99g
- Removable turbine head: 46x47x24mm, 17g
- Battery charger (optional):100VAC - 240VAC, 50Hz-60Hz
base endowment:
- 1CD winspiroPRO PC software.
- 1 USB cable.
- 1 group of rechargeable Lithium-ion batteries.
- 1 nose clip.
- 1 CD with user manual.
- Transport case.
Warranty:
- 12 months in case of professional use (doctor, hospitals, etc.)
- 24 months if the product is purchased directly by the patient who uses it.
The warranty starts on the date of purchase proven by a copy of the invoice or other document.
