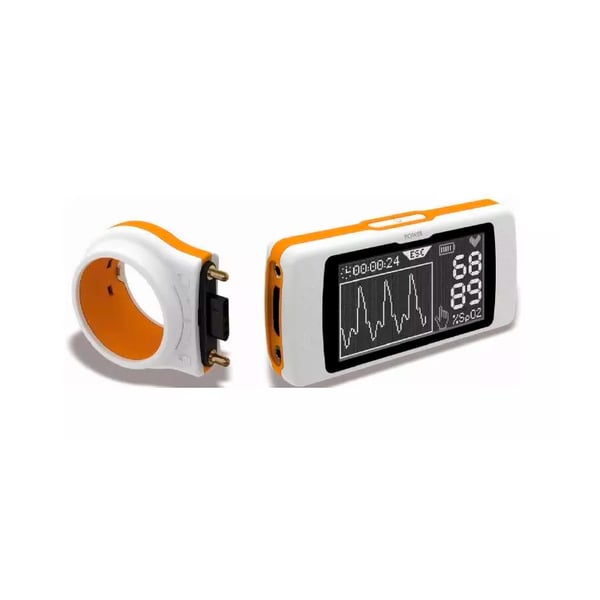

Spirodoc Oxy: The first 3D oximeter on the market

The new Sprirodoc has been designed, taking care of design and technology, with customization of functions based on the mode of use : advanced parameters for the specialist, reduced ones for screening and a simplified version for home use.

- FVC, VC, IVC, MVV, PRE-POST . Accurate interpretation of spirometry even after bronchodilation. Record all tests performed. Automatic conversion to BTPS. Capacity for 10,000 exams. Wide selection capacity of theoretical values.

- Monitoring of physical activity: In accordance with the latest ATS guidelines on COPD, it is essential to quantify the exercise capacity during monitoring and respiratory rehabilitation of the patient.

- Spirodoc responds to the recommendations of the "European Union Commission for Telemedicine in COPD" which provides for: respiratory functionality (spirometer); saturation analysis (pulse oximeter); daily questionnaire (symptoms); physical activity (3D accelerometer) The data can be easily transmitted via USB or Bluetooth, to telecare centers for diagnosis.

- Telemedicine anywhere : Spirodoc has it all. It is small and easy to use.

- Effort and oxygen prescription : Spirodoc is the first "3D Pulse Oximeter" that integrates a triaxial movement sensor, to relate saturation (%SpO2) with physical activity (step counter, movement analysis, VMU).

- Questionnaire for the control: of the symptoms at home: Easy and fast introduction of the symptoms on the touch screen. Configuration and customization with a wide choice of symptoms and questions, about the quality of life for the diary, is memorized automatically.

- Respiratory rehabilitation: Spirodoc is capable of automatically detecting the physical activity and body position of the patient, during the recording of possible desaturation events: standing, walking, sleeping, etc.

Strengths:

- Multifunction diagnostic spirometer, multi-purpose including winspiroPRO PC software, with USB/BT connections

- 4 instruments in one

- Spirometer with touch screen, “touch screen”

- Pulse oximeter: Intelligent, results on screen

- 3D accelerometer. With movement analysis for O2 prescription

- Questionnaire for the control of symptoms at home

- Two modes: patient and medical monitoring

- Unique 3D Oximeter: combines pulse oximetry with movement analysis

- Desaturations related to physical activity

- Step counter, movement and VMU

- 6-minute walk test with estimated calculation of the O2 to be supplied

- Lithium rechargeable batteries

- Backlit touch screen "touchscreen"

Technical characteristics:

- Display: Backlit LCD touch screen

- Resolution: 128x64 pixels

- Power supply: Lithium ion 3.7V, 1100mA rechargeable battery with 30 hours of reserve measurement.

- Data transmission: USB 2.0 (Bluetooth® optional)

- Accelerometer: Triaxial ± 2g, 400Hz sampling

- Measurements and weight: central unit 101x48x16mm, 99g

- Battery charger (optional): 100VAC - 240VAC, 50Hz-60Hz

- Power 5VDC, 500mA, micro USB type B

Technical characteristics of the pulse oximeter:

- SpO2 range: 0-100%

- SpO2 accuracy: ±2% (50-100% SpO2)

- Heart Rate Range: 20-254PPM

- Heart Rate Accuracy: ±2PPM or 2%, whichever is greater

base endowment:

- User manual

- Bag for SPIRODOC

- USB connection cable

-CD winspiroPRO

- 1 nose clip

- 1 oximetry sensor

Warranty:

- 12 months in case of professional use (doctor, hospitals, etc.)
- 24 months if the product is purchased directly by the patient who uses it.
The warranty starts on the date of purchase proven by a copy of the invoice or other document.
