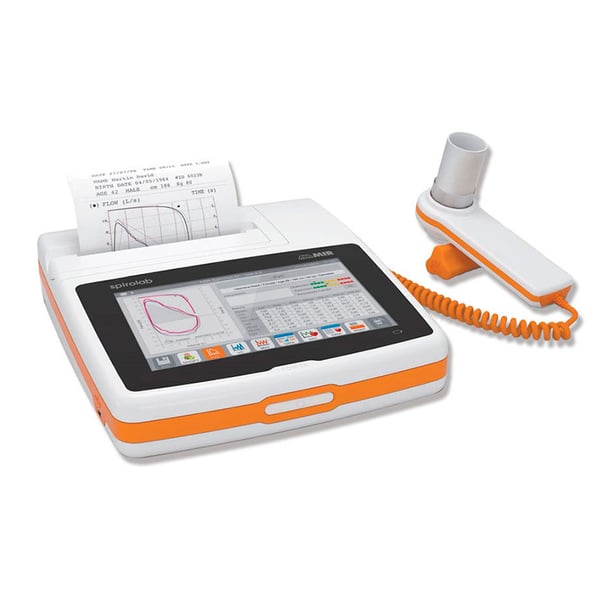

Spirolab New portable spirometer: with optional oximetry and high definition screen, Bluetooth and a reusable turbine

Ultra-portable diagnostic spirometer, Spirolab New , with high-resolution 7” color graphic display with touch screen and integrated printer. Fast and intuitive, ideal for the modern professional . It works autonomously and connected to the PC. It stores up to 10,000 complete tests and thanks to the SpO2 sensor it also allows you to assess saturimetry (only 107582).

Strengths:

- Portable use:

• Spirometry: FVC, FEV1, IVC, MVV, PRE/POST Bronchodilator with a wide range of selectable parameters
• Pediatric incentives for Spirometry tests
• Built-in thermal printer - fast, quiet and programmable
• Color screen: 7-inch TFT screen with Touchscreen
• Data archive for 10,000 spirometry tests (or 900 h of oximetry registration for Spirolab code 107582) with search functions
• Oximeter function with adult or pediatric sensor (only code 107582)
• Rechargeable battery with great operating autonomy

- Use connected to the PC with WinspiroPRO® software:

• Bluetooth® 2.1 and USB connection: real-time measurement on PC without wires or cables
• WinspiroPRO® PC Software: Provides Flow/Volume and Volume/Time curves directly in Real Time on a PC with a PRE/POST Bronchodilator comparison. Free software updates
• Pediatric incentive for Spirometry with a wide selection of images and animations
• Spirometry after drug administration: reversibility after bronchodilator and bronchial provocation with FEV1 Dose–response curve including methacholine and mannitol protocols
• Theoretical Values according to Quanjer (GLI-2012) with minimum value (LLN) and Z-score index
• Follow-up with graph of the trend over time: search engine for instant access to the database.

- Pediatric incentive with animations: The use of a system patented by MIR makes it possible to display an "incentive" directly on the screen, useful for improving the patient's collaboration while performing spirometry. This feature is especially useful at the pediatric level.

Technical characteristics:

- Autonomy: about 10 hours

- Temperature sensor: semiconductors (0-45 ° C)

- Flow sensor: Semiconductor digital turbine

- Flow range: ± 16 l / s

- Volume accuracy: ± 3% or 50 ml

- Flow accuracy: ± 5% or 200 mL/s

- Dynamic resistance: <0.5 cm H2O / L / s

- Connection: USB 2.0, Bluetooth 2.1

- Display: 7" LCD touch screen, 800x480 resolution

- Nozzles: Ø 30 mm (1.18 inches)

- Dimensions: Width: 220 mm / Length: 210 mm / Thickness: 51 mm

- Weight: 1450 g (including battery)

- Power supply: Ni-MH rechargeable battery and mains power, 6 elements

- Spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF 25-75, FEF75-85, Lung Age Extrapolated from Volume, FET, PEF Time, FEV0.5, FEV0 0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1 , FIV1 / FIVC , PIF, FIF25, FIF50, FIF75, FEF50 / FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, ti, te, Vc / ti, te / TTOT MVV (measure), MVV (calculated)

- Bluetooth® 2.1 and USB connectivity

- 7 inch TFT display with touch screen

- Internal memory: up to 10,000 tests (or 900 hours of recording)

- A new print report with GLI-2012 theoretical values, min / max. and the Z-score

- SOFTWARE REQUIREMENTS Winspiro PRO® Windows 2000, XP, Vista (32/64 bits), 7 (32/64 bits), 8 and 8.1 (32/64 bits), 10 (32/64 bits). 512MB RAM

Basic endowment:

- Carrying bag

- Winspiro PRO® Software

- Battery charger

- USB Cable

- 1 roll of thermal paper

- Reusable turbine

- nose clip

- Manual CD: ES, FR, IT, ES, DE, PT

Warranty:

- 12 months in case of professional use (doctor, hospitals, etc.)
- 24 months if the product is purchased directly by the patient who uses it.
The guarantee begins on the date of purchase verified by a copy of the invoice or other document.
