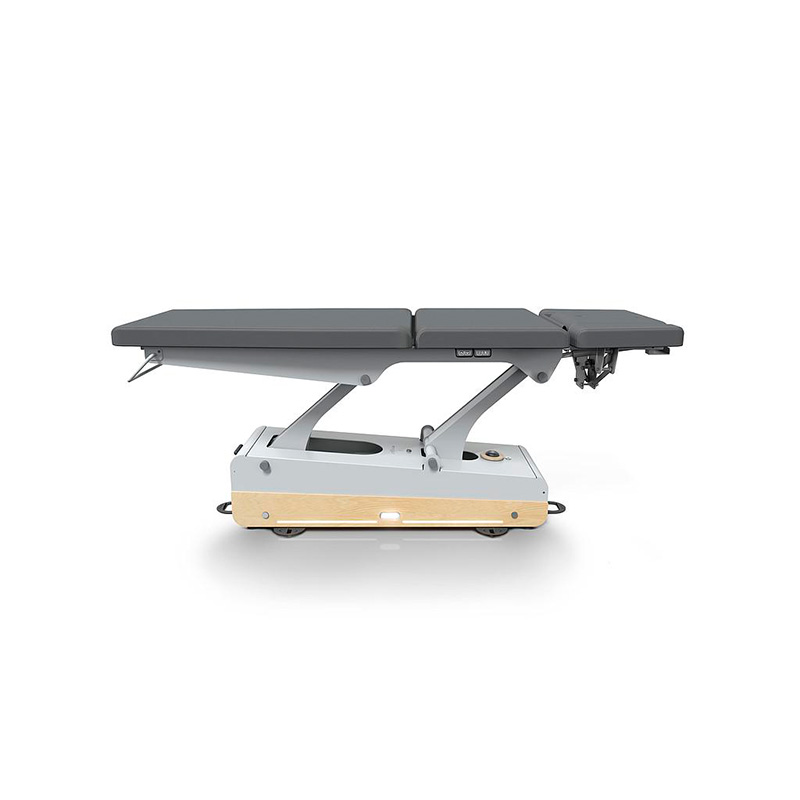

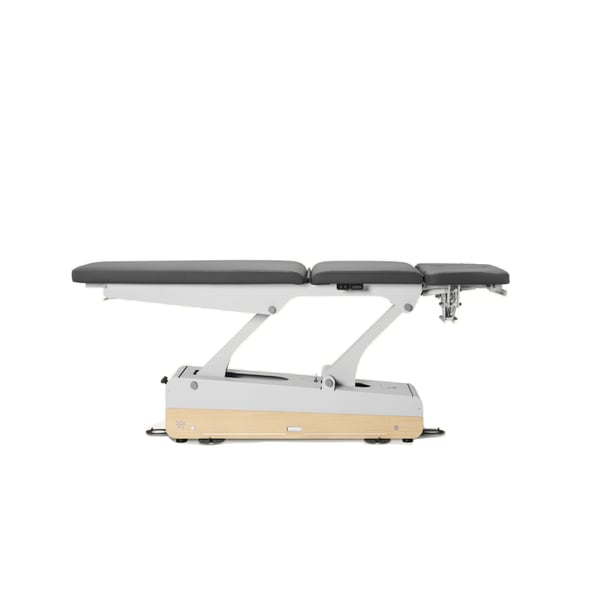

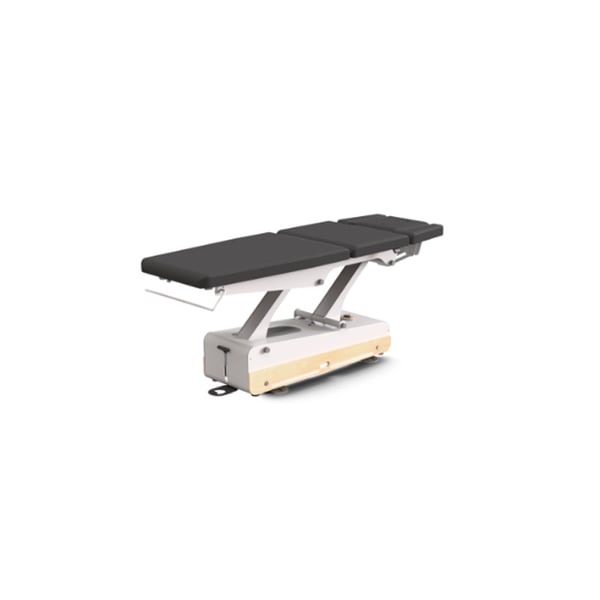

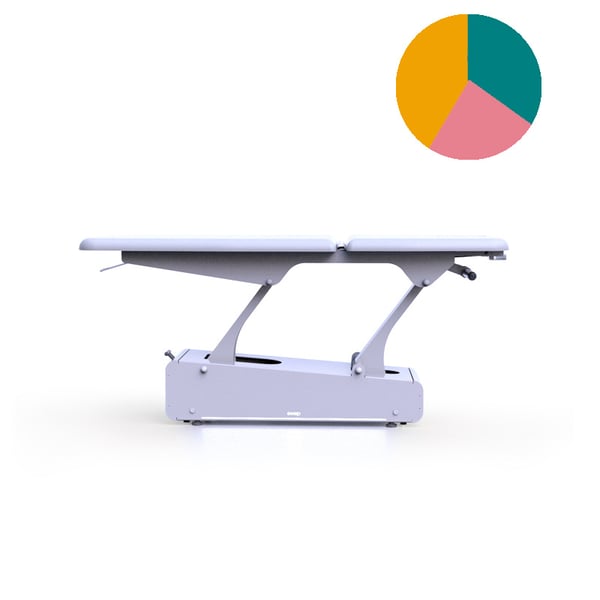

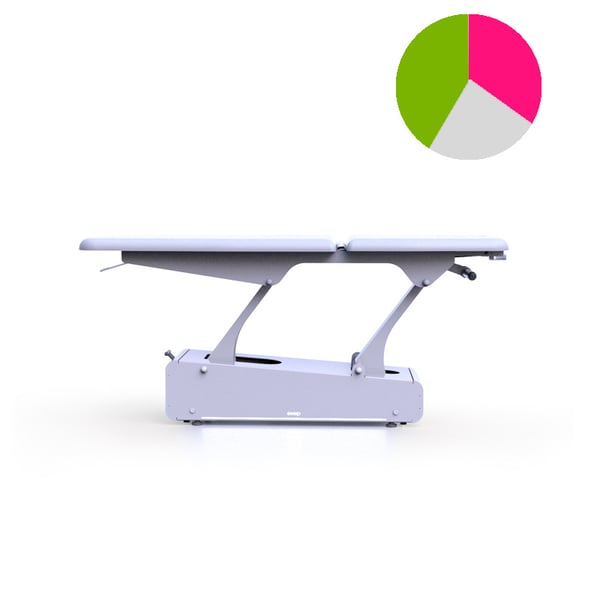

Swop 5 Up Physio electric physiotherapy table: 3 sections, equipped with 2 motors that regulate the height using the Space Ball system

3-section physiotherapy table equipped with 2 motors that regulate the height of the table using the Space Ball system , and the Trendelenburg and lumbar flexion positions. With TwinLift: armrests on the headrest adjustable by the patient themselves. Ideal for reducing tension and improving the position of the shoulder girdle. Equipped with a retractable wheel system.

Technical characteristics

- Motors: 1 height motor (6000 N), 1 central section motor (6000 N)

- Dimensions (length x width): 204 x 70 cm

- Height: 50/90 cm

- Weight: 119 kg

- Load capacity: 250 kg

- Power supply: 230 V - 50/60 Hz

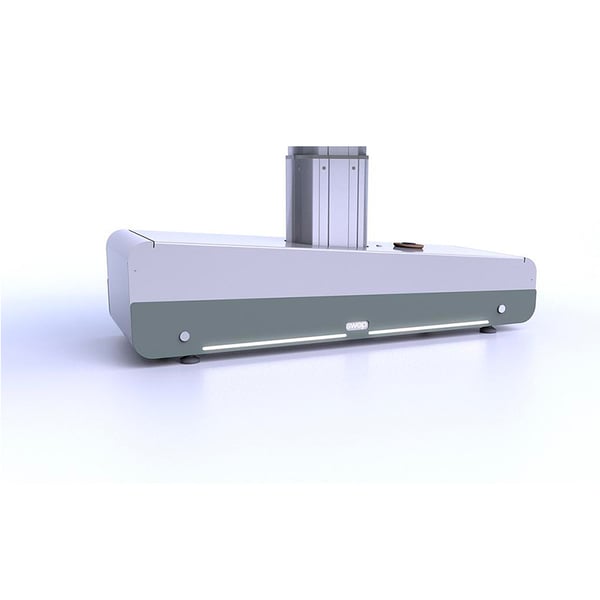

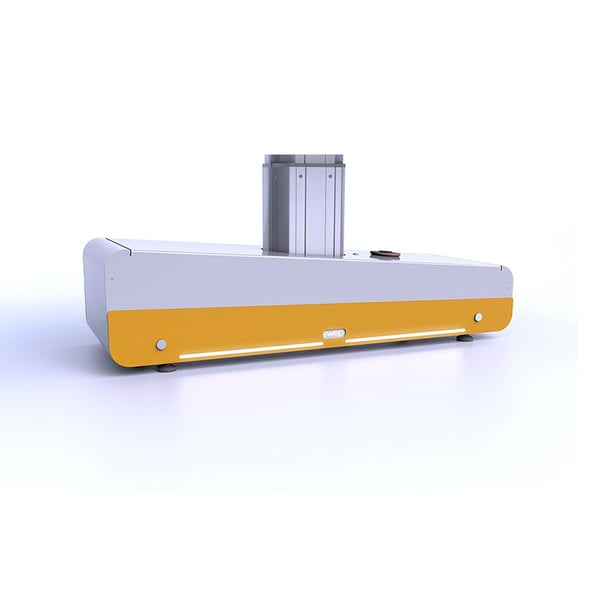

- Structure color: Space ball: RAL 7015; Base Frame: RAL 7047

- Insulation class: Reinforced insulation II

- Product classification: Class I Equipment

- Component type: Type B

- Humidity resistance: IPx0

- Power cable: 2.5m, white

Strengths

- TwinLift® armrest: simultaneous and continuous adjustment using a gas piston. Avoid possible collisions with the therapist.

- Head with two pistons. Leg with 1 gas piston.

- Space ball perimeter system, accessible from each side of the stretcher.

- 4 wheels with 360° rotation. Completely integrated system under the base structure activated with a lever.

- Electrically adjustable center section. Button panel on both sides.

- Heated mattress: XL heating elements with 2 temperature levels, auto-off and buttons on both sides.

- Security button with key (turn off).

- Engine with safety clutch.

Upholstered

- Central and final section: 6.5 cm: Plywood (1.5cm) + high density foam (4cm) + low density foam (1cm).

- Head 6.5cm: Plywood (1.5cm) + low density foam (1cm).

- All upholstery has straight edges and finished with seams.

- Upholstered with Naggura Skin: 100% Vinyl Blend.

- Protection against germs and UV rays.

- Superior abrasion resistance: >250K cycles.

- Fireproof protection: NF P 92-503/M2

- Color: Graphite

Dimensions

Attached files
