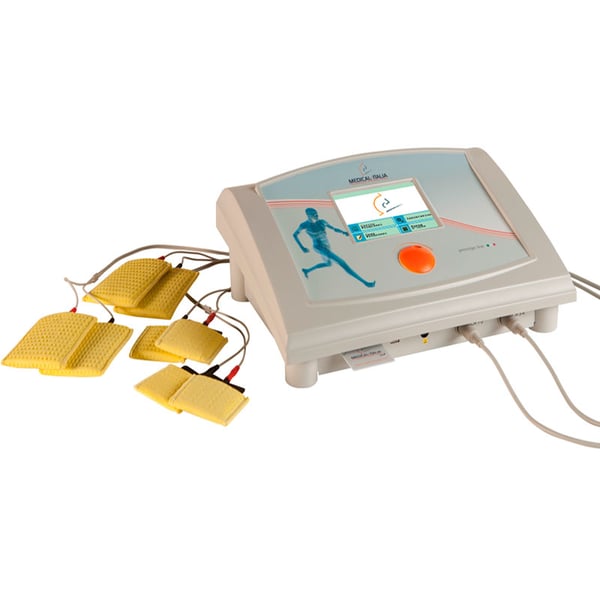

Therapic 9200 Electrostimulator: Two-channel low-frequency and medium-frequency electrotherapy device. Prestige Line

Electrotherapy with 2 completely independent channels, it delivers all the waveforms of low and medium frequency, and the creation of the I / T curve, Reobase and chronaxia.

Equipment for electrostimulation with 2 independent channels with 320x240 pixel color graphic screen with Touch & Scroll function, 126 memorized protocols , 200 memorisable in the internal memory and 80 in the Smart Card. Ultrasonic connection

Strengths:

- 26 waveforms (low and medium frequency).

- New 2 mm “banana” cables.

- Possibility of connecting it with the ultrasound of the ULTRASONIC family for combined applications.

- Color graphic display with “Touch-In” functions.

- I / T curve.

- Possibility of connecting the Therapic 9200 and the 9400 to the Vacuumed (VU1392) for combined electro-vacuum therapy applications.

- Test Electrodes.

- Creation of a treatment sequence with different waveforms.

- Smart Card.

Waveforms delivered:

- Galvanic - continuous; interrupted

- Diadynamic - single phase; diphase; sync. single phase; sync. diphase; CP; LP

- Impulses - rectangular; triangular; trabert

- Faradic - rectangular; triangular; neodynamics

- Tens - burst; random; modulated; al tens

- Biphasic - symmetric; asymmetric

- Interferential - quadripolar; isoplanar; vector; bipolar; stimulating; Russian current -Kotz-

- Microcurrents

- High Voltage HVPC

- H wave

- APS

- Creation of curve i / t rheobase and chronaxia

Basic endowment:

- User manual on DVD

- Electrodes 60x85 mm , 4 units

- Sponges for electrodes 60x85 mm , 4 units

- Electrodes 50x50 mm , 4 units

- Sponges for electrodes 50x50 mm, 4 units

- Elastic strap 1000 mm , 2 units

- Elastic strap 600 mm, 2 units

- Electrotherapy output cable

- Smart Card

Electrotherapy to the nth degree:

Electrotherapy uses the biological effects obtained by electrical energy for therapeutic purposes and consists of electrical currents that pass through the part of the body concerned, taking care to choose with certain characteristics suitable for the purposes to be achieved.

Electrotherapy is used to stimulate the denervated muscle , to reduce the hypotrophy due to the non-use of the normoinerved muscle, to maintain the muscle trophism in the denervated or partially innervated muscle, to enhance the innervated muscle .

The main effects of an electrical current applied to a body tissue are represented by the excitomotor, thermal, trophic, analgesic and chemical effect.

Main effects of electrostimulation:

- Training of the neuromuscular system to respond appropriately during voluntary and involuntary effort providing an active contraction (isometric, concentric and eccentric) and the resulting joint movements allowing proprioceptive feedback.

- Modulation of pain through the gate control mechanism or descending inhibition mechanisms (endogenous opiate production).

- Control or reduction of spasticity through the stimulation of agonists (contraction-relaxation), antagonists (reciprocal inhibition), or sensomotropic inhibition.

- Provide the transdermal supply of medicinal substances within the skin (ionophoresis).

- Improve or maintain joint mobility through the mechanical contraction of muscles or connective tissues or reduction of the impediment of movement of neuromuscular dysfunctions (for example spasticity), pain or edema.

- Promote wound healing by increasing local circulation, providing a bactericidal effect or altering the electrical charges in the injured area.

- Delay or resolve edema , through muscle pumping activity or the effect of electrical charges on proteins
