THERMOLABIL® 10L Portable Refrigerator – Safe Transportation of Medications

Portable refrigerator designed for transporting medicines and medical devices, capable of maintaining temperatures between 2ºC and 8ºC for up to 24 hours .

Ideal for vaccines, insulins, biological samples and reagents.

Complies with ISO 13485 regulations

Main Features

Inner material: Polyurethane foam (PU) – CFC-free, environmentally friendly.

Insulation: Hermetic closure with buckle and sealing ring to prevent cold leakage.

The portable cooler is made of PP (polypropylene), premium material, non-toxic, anti-UV and non-fading.

The insulation layer material of the medicine refrigerator is CFC-free PU (polyurethane) foam, without any chemical materials, environmentally friendly.

Maintains the temperature of medical devices below 8°C for 48 hours (with an ambient temperature of 25°C)

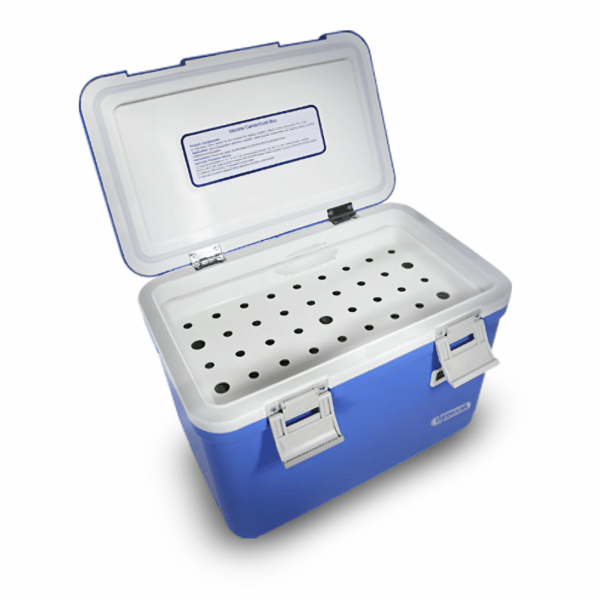

The cold accumulators are located inside the portable cooler in fixed areas delimited by partitions that create storage spaces. This system is more convenient for maintaining performance in the cold areas.

The medicine cooler can be used by the handle on the lid, or it can be worn over the shoulder using a belt.

It has a sealing ring that allows for good performance to keep the cold inside more efficiently.

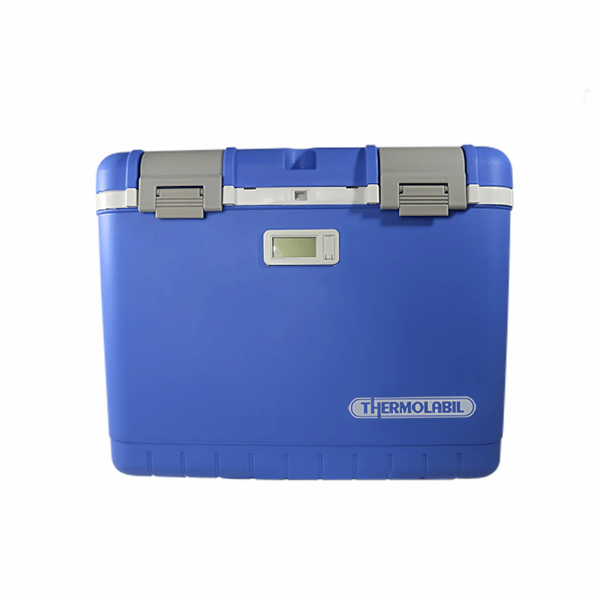

It has a digital thermometer to check the temperature inside the refrigerator.

The Thermolabil portable refrigerator is manufactured for use in pharmacies, laboratories, hospitals, social care centers, mutual insurance companies, and health centers.

Interior measurements: 27 x 17.3 x 20.3 cm

External measurements: 37 x 28 x 29.8 cm

Capacity: 10 Liters

The portable refrigerator is manufactured in compliance with ISO9001, ISO14001, ISO45001 regulations.

ISO13485 system certifications.

CE certificate of conformity.

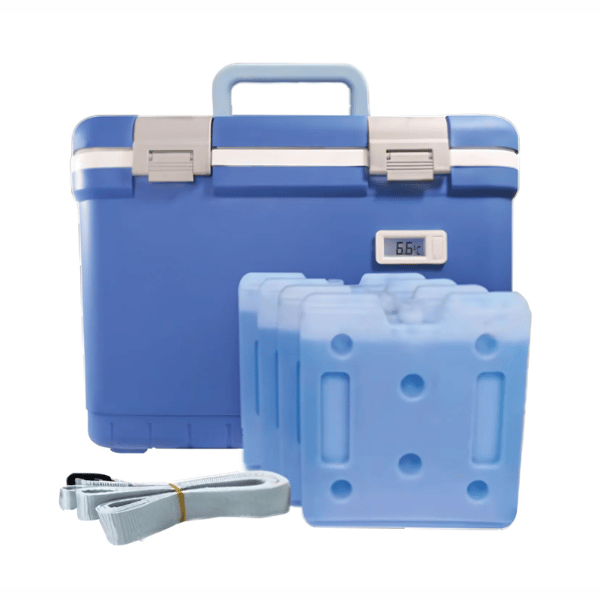

Accessories Included:

6 cold accumulators (0.4L/unit).

1 carrying strap.

External digital thermometer for temperature control.

Scope of application:

Suitable for refrigerated transportation of medicines in pharmacies, hospitals, laboratories, blood centers, epidemic prevention stations testing centers, etc.

Dimensions:

Gross interior: 27 x 17.3 x 20.3 cm (width x depth x height).

Useful interior: 22 x 12 x 15 cm.

Weight:

Gross: 2.9 kg.

Net: 2.2 kg

Instructions for use:

Freeze the Thermolabil cooler's cold packs at -20°C for at least 24 hours before use.

Remove the ice packs from the freezer just before they are going to be used and place them in the medicine refrigerator, in the designated spaces to create the compartments.

Next, place the pre-refrigerated medications or medical devices in the designated compartments of the portable insulin cooler. Fill the cooler as much as possible to reduce direct sunlight.

Only open the vaccine cooler when strictly necessary to avoid affecting its insulation and prevent the cold inside from escaping.

Do not expose the Thermolabil portable medicine cooler to direct sunlight.

After each use, clean with water and mild soap. Do not use chemicals for disinfection.
