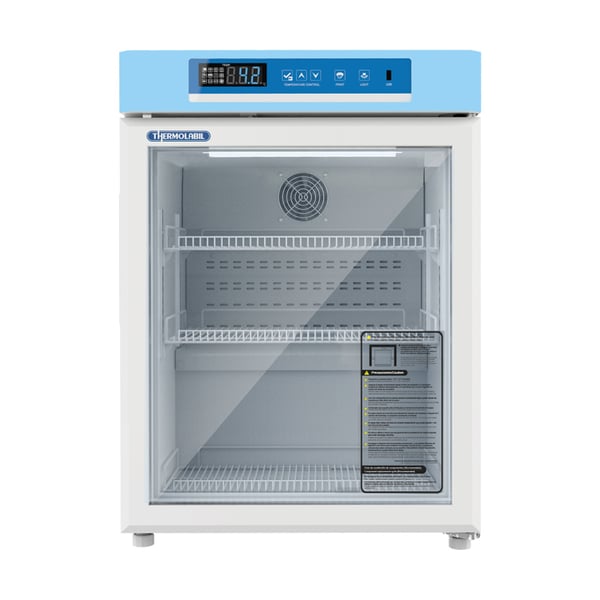

Thermolabil 76 liter pharmacy refrigerator: with Data Recording and Advanced Control

The Thermolabil pharmacy refrigerator is a comprehensive solution designed to meet the specific storage needs in pharmaceutical environments. With a capacity of 76 liters , this refrigerator offers optimal space to store medications and sensitive products, maintaining a constant temperature in a range between 2ºC and 8ºC . Complies with the requirements established by the DNI 13277 standard

Its data logging system records vital information every 10 minutes for an extended period of 24 months , ensuring detailed monitoring and complete traceability of storage conditions. In addition, its interface with USB port allows you to easily export data for deeper analysis.

The refrigerator door is equipped with an anti-condensation heating system , which guarantees clear visibility at all times and prevents the formation of humidity, ensuring the integrity of the stored products. In addition, it has alarms that alert you about critical situations such as the door open, power failure, extreme temperature fluctuations, low battery or ambient temperature outside established limits .

With two shelves and a rack , the refrigerator provides efficient space organization, while the height-adjustable legs offer flexibility in placement. The integrated lock adds an extra layer of security to protect stored products.

In short, the pharmacy refrigerator combines advanced technology with functionality and safety , ensuring optimal and controlled storage of medications and pharmaceutical products .

Strengths:

- Temperature range between 2ºC - 8ºC

- Integrated lock for greater security

- Height adjustable legs

- Temperature control by sensors

- Double glazed glass door

- Ventilated cooling

Technical characteristics:

- Dimensions:

• INTERNAL MEASUREMENTS* 44.4 x 44 x 53.6 cm
• EXTERNAL MEASUREMENTS* 54.2 x 56.6 x 76.4 cm
• PACKAGING MEASUREMENTS* 57.5 x 61.7 x 81.5 cm
• NET WEIGHT 41kg
• GROSS WEIGHT 45kg

- Technical parameters:

• Temperature range: 5°C
• Ambient temperature: 16°C~32°C
• Noise Level: 38.7 dB (A)
• Climate classification: N
• Power supply 50Hz

- Refrigeration equipment:

• Compressor: 1 piece
• Cooling method: Direct cooling
• Defrost mode: Automatic
• Refrigerant: R600a
• Insulation thickness: (RL) 48mm; (B) 50mm
• Control panel: Microprocessor
• Digital screen

- Construction data:

• Exterior: PCM
• Interior: Powdered aluminum sheet / Stainless steel (optional)
• Shelves: 2+1. Plastic-coated steel wire shelves
• Test port access: 1 piece. Diameter 25mm
• Adjustable legs: 2 + 2
• Data logs: USB
• Recording interval: 10 min
• Record recording: 24 months
• Interface: Remote alarm contact, RS485
• Backup battery: Yes

Acoustic and visual alarms:

- Temperature:

• High temperature
• Low temperature
• High ambient temperature

- Electricity:

• Power failure
• Low battery

- System:

• Sensor failure
• Communication error with motherboard
• Half-closed door

Important!

*Shipping costs are free for deliveries by truck, if you have to put the refrigerator inside the building it has an additional cost of €150 + VAT, you can contract it in the ''Spare parts and accessories'' section for this product.
