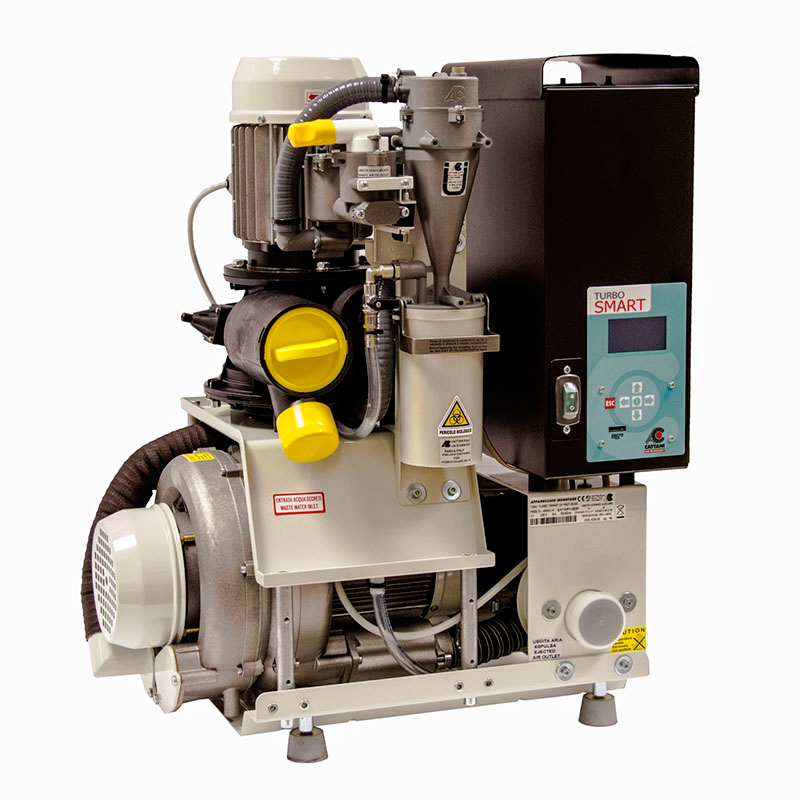

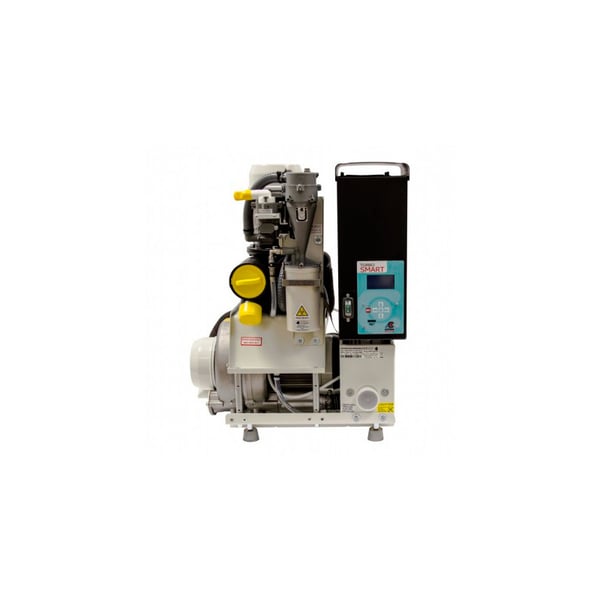

Turbo Smart 2V high pressure suction system with Inverter and amalgam separator

Cattani has been in charge of designing this system with high pressure of 280 mbar, to guarantee a flexible and dynamic suction system through small diameter pipes, or with siphons or armchairs very separated from the machine room , since in those situations a Normal pressure between 170 and 200 mbar would be insufficient.

The Turbo Smart 2 V high pressure suction system has a Uni-Jet 75 2 engine with two serial fans and VSD (Variable Speed ​​Drive) technology , which automatically reduces power and speed when the professional reduces the demand for suction. In this way, it makes an adequate use of the motor, extending its useful life.

The device lands on the market with an absolute novelty: the Inverter control . This system is able to handle common situations such as excess fluid from surgery, motor overheating or power spikes, without interrupting its function.

Its digital control panel allows to check in real time its operation and possible anomalies. It incorporates a self-diagnostic function, alarm system and control of operating parameters such as: working pressure, consumption, temperatures, capacity of the condensers or amalgam level.

Thanks to its smart Turbo Smart 2V system from Cattani that optimizes energy consumption, it achieves higher performance and low maintenance costs by saving energy consumption by up to 50%.

Technical characteristics:

- Single phase motor 220V 50 / 60Hz

- Power output: 1.5 kW - 9 A

- Maximum flow: 1,800 l / min

- Maximum pressure in continuous service: 280 mbar

- Sound level: 70 db (A)

- Net weight: 56 kg

- Dimensions: L = 590mm; P = 400mm; H = 650mm
