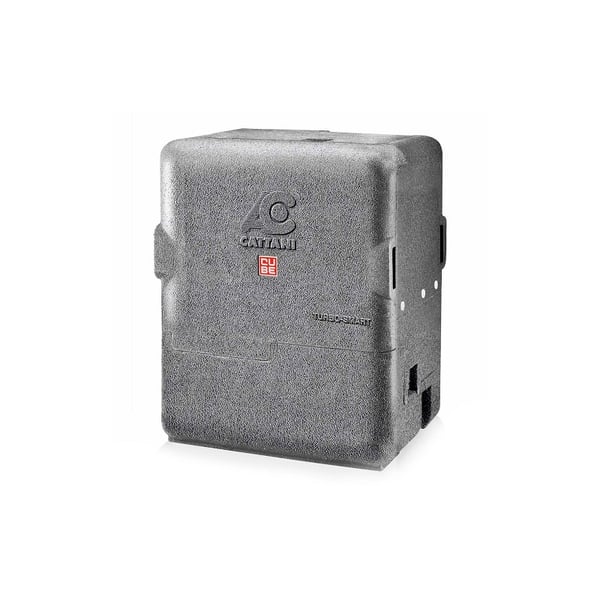

Turbo Smart Cube Cattani Progressive Aspiration System: Up to 4 devices with reduced consumption

Cattani always stands out for its modern and functional designs. On this occasion, it reaches the market with a more compact, lightweight and powerful evolution of the Turbo Smart device: Turbo Smart Cube .

This version also incorporates the soundproofed fairing as standard in flame retardant expanded polystyrene. Sound level of 58dB. Cattani has taken care of every detail of the design to configure a wet ring suction system, which guarantees reliable performance and maximum autonomy.

Its improved motor is more powerful and efficient to achieve lower consumption and is indicated for the use of 1 to 4 simultaneous dental units. The engine incorporates the technology VSD (Variable Speed ​​Drive), which automatically reduces the power and speed, facilitating an optimal use of the engine, extending its useful life and consequently, reducing energy costs.

Its electronic control and inverter, Turbo Smart Cube is able to handle common incidents such as excess fluid , overheating of the engine or power peaks, without interrupting its function. In addition, thanks to its digital control panel and its WiFi connectivity you can check in real time its operation and possible anomalies, as well as always having under your control the aspiration parameters.

Technical characteristics:

- Power output: 1.1 kW - 4.8 A

- Maximum flow: 1600 l / min

- Maximum pressure in continuous service: 210 mbar

- Maximum frequency 145 Hz

- Sound level: 58 db (A)

- Weight: 36 kg

- Dimensions: 500mm x 370mm x 650mm
