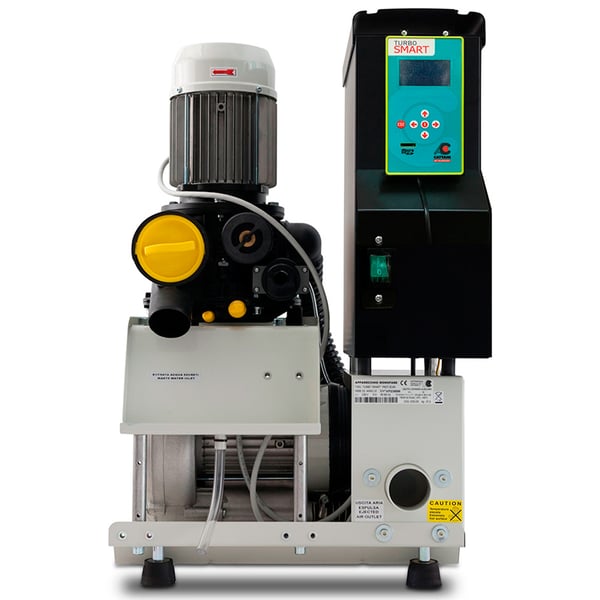

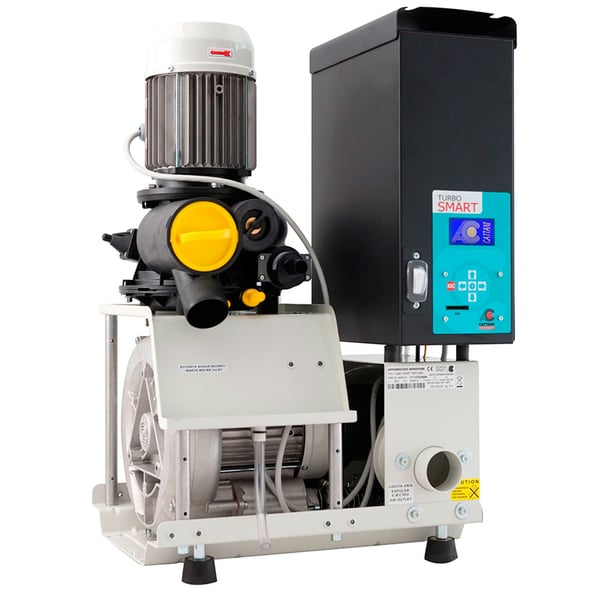

Turbo Smart suction system 1/4 devices: with Inverter control and autoadaptable flow

Progressive aspiration system, which adapts itself to the needs of the workflow at all times, increasing or decreasing the speed and therefore the power of aspiration and consumption.

Its suction volume adapts automatically to work : At minimum, when it is used only in one position, increasing progressively as more positions are added, up to a maximum of 4 positions with a single Turbo Smart.

The device incorporates an automatic self-diagnosis system that reacts to any anomaly or unexpected, optimizes operation and consumption according to the situation and protects the equipment against possible overheating.

Through the display of the control panel the working pressure, the consumption, the temperature of the machine, the ambient temperature, the period of operation, the capacity of the condensers, the amalgam level and other series of parameters of the equipment can be monitored. . The work pressure can be adjusted to the professional's requirements at any time.

Technical characteristics:

- Single phase motor 220V 50 / 60Hz

- Power output: 1.22 kW - 7 A

- Maximum flow: from 1,400 to 2,200 l / min

- Maximum pressure in continuous service: 210 mbar

- Sound level: 69 db (A)

- Net weight: 40 kg

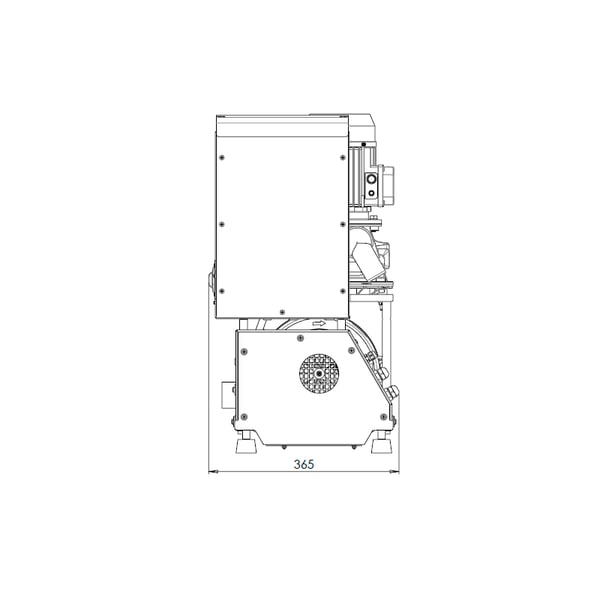

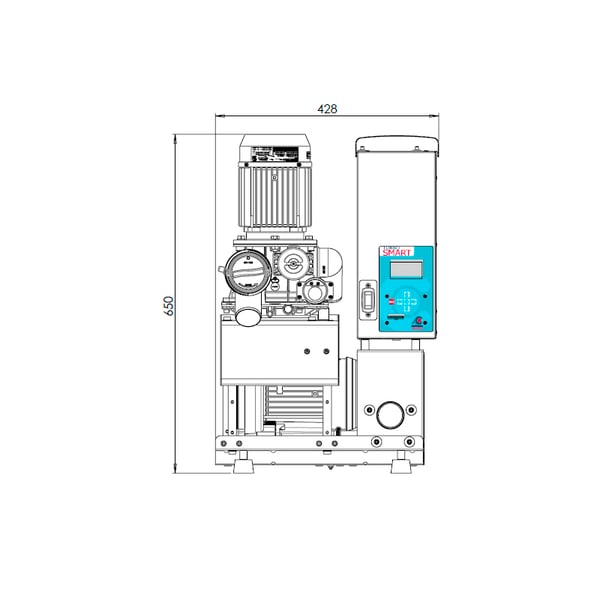

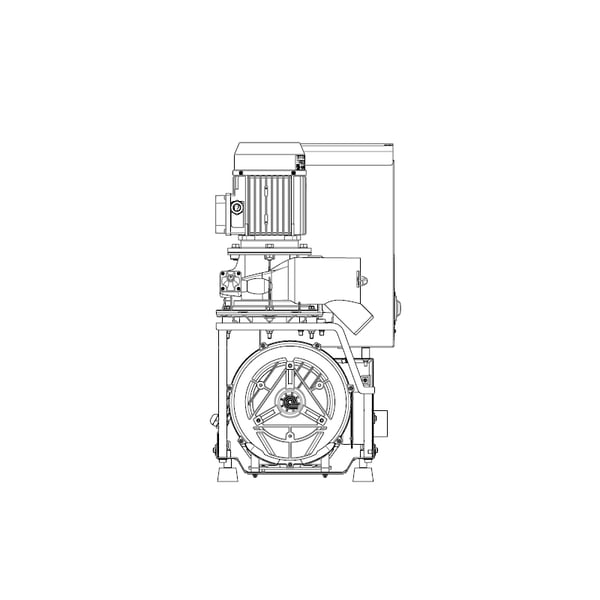

- Dimensions: L = 390mm; P = 350mm; H = 630mm
